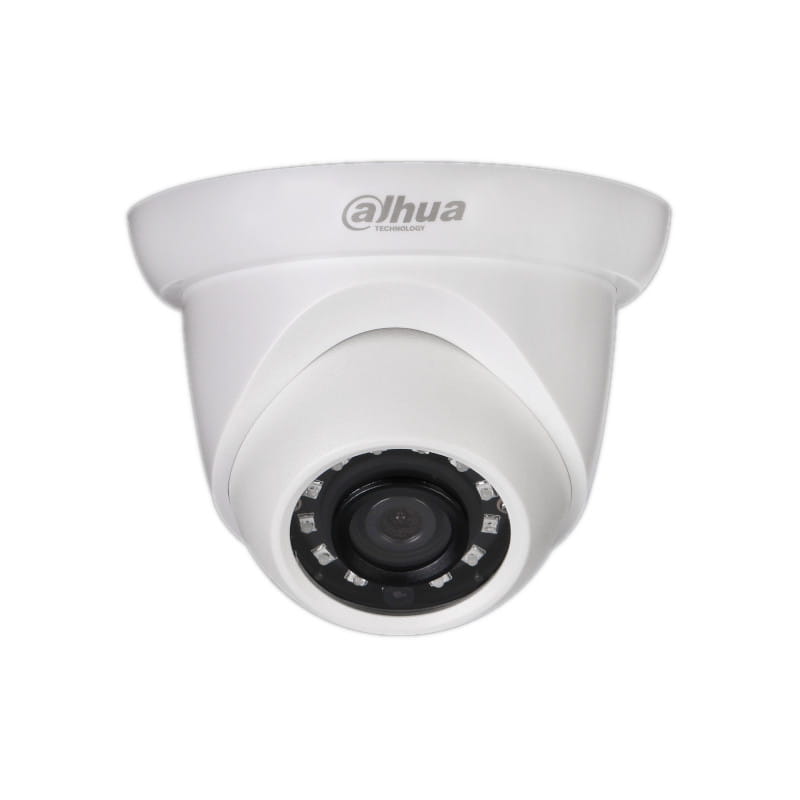

IPC-HDW1230S-0280B-S4

Verfügbarkeit: 0
Preis: 71,68 € 71.68
bez 23.00% VAT i kosztów dostawy
quantity szt.

product unavailable

zur Wunschliste hinzufügen
Anbieter: DAHUA
Produkt-Code/SKU: IPC-HDW1230S-0280B-S4

Beschreibung

www.dahuasecurity.com  DH-IPC-HDW1230S-S4  2MP Entry IR Fixed-Focal Eyeball Netwok Camera    · 2MP, 1/2.7” CMOS image sensor, low illuminance, high image definition  · Outputs max. 2MP (1920 x 1080) @25/30 fps  · H.265 codec, high compression rate, ultra-low bit rate  · Built-in IR LED, max. IR distance: 30 m  · ROI, SMART H.264/H.265, flexible coding, applicable to various   bandwidth and storage environments  · Rotation mode, DWDR, 3D DNR, HLC, BLC, digital watermarking,   applicable to various monitoring scenes  · Abnormality detection: Motion detection, video tampering, network   disconnection, IP conflict, illegal access  · 12V DC/PoE power support  · IP67 protection  Entry Series |DH-IPC-HDW1230S-S4  System Overview  With features of simple installation, easy operation, and high  performance-cost ratio, Dahua Entry Series camera is applicable to small  and medium-sized scenes, such as homes/residences, small-sized retail  stores, and other small and medium-sized enterprises.   Functions  Smart (H.265+ & H.264+)  With advanced scene-adaptive rate control algorithm, Dahua smart  encoding technology realizes the higher encoding efficiency than H.265  and H.264, provides high-quality v...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle PDF


Textinhalt des PDF-Datenblattes:

www.dahuasecurity.com
DH-IPC-HDW1230S-S4
2MP Entry IR Fixed-Focal Eyeball Netwok Camera

· 2MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
· Outputs max. 2MP (1920 x 1080) @25/30 fps
· H.265 codec, high compression rate, ultra-low bit rate
· Built-in IR LED, max. IR distance: 30 m
· ROI, SMART H.264/H.265, flexible coding, applicable to various
bandwidth and storage environments
· Rotation mode, DWDR, 3D DNR, HLC, BLC, digital watermarking,
applicable to various monitoring scenes
· Abnormality detection: Motion detection, video tampering, network
disconnection, IP conflict, illegal access
· 12V DC/PoE power support
· IP67 protection
Entry Series |DH-IPC-HDW1230S-S4
System Overview
With features of simple installation, easy operation, and high
performance-cost ratio, Dahua Entry Series camera is applicable to small
and medium-sized scenes, such as homes/residences, small-sized retail
stores, and other small and medium-sized enterprises.
Functions
Smart (H.265+ & H.264+)
With advanced scene-adaptive rate control algorithm, Dahua smart
encoding technology realizes the higher encoding efficiency than H.265
and H.264, provides high-quality video, and reduces the cost of storage
and transmission.
Motion Detection
When moving objects appear in the monitoring image, Dahua Motion
Detection technology triggers alarm or records.
Smart IR
Dahua Smart IR technology can display image in the environment of low
illuminance or completely dark environment. According to the distance
of the targets, the camera adjusts IR LEDs intensity automatically to
display the details of the moving target.

2Mp
H.265+

IP67

Motion
Detection

Image Flip
For narrow and long scenes, Dahua image flip technology flips the image
by 90°/270° to realize better surveillance in rotation mode.
Protection (IP67,wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has
dust-proof function, and the enclosure can works normal after soaking
in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% input voltage tolerance (wide
voltage range), and it is widely applied to outdoor environment with
instable voltage.

www.dahuasecurity.com

Technical Specification
Camera
Image Sensor1/2.7" 2Megapixel progressive CMOS
Effective Pixels
1920 (H) x 1080 (V)
ROM16 MB
RAM64 MB
Scanning SystemProgressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100000 s
Min. Illumination0.01 Lux @F2.0
IR Distance30 m (98.4 ft)
IR On/Off ControlAuto/Manual
IR LEDs Number12
Pan/Tilt/Rotation Range
Horizontal: 0°–355°
Vertical: 0°–78°
Rotation: 0°–360°
Lens
Lens TypeFixed-focal
Mount TypeM12
Focal Length
2.8 mm
3.6 mm
Max. Aperture
F2.0
F2.0
Field of View
2.8 mm:
Horizontal: 105°
Vertical: 57°
Diagonal: 125°
3.6 mm:
Horizontal: 87°
Vertical: 47°
Diagonal: 104°
Iris TypeFixed aperture
Close Focus Distance
2.8 mm: 0.5 m (1.6 ft)
3.6 mm: 0.9 m (3.0 ft)
DORI Distance
LensDetectObserveRecognizeIdentify
2.8 mm
37.3 m
(122.4 ft)
14.9 m
(48.9 ft)
7.5 m
( 24.6 ft)
3.7 m
(12.1 ft)
3.6 mm
53.3 m
(174.9 ft)
21.3 m
(69.9 ft)
10.7 m
(35.1 ft)
5.3 m
(17.4 ft)
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG
Smart CodecYes
Video Frame Rate
Main Stream:
1920 x 1080 (1 fps–25/30 fps)
Sub stream:
704 x 576 (1 fps–25 fps)
704 x 480 (1 fps–30 fps)
Stream Capability2 streams
Resolution
1080p (1920 x 1080); 1.3m (1280 x 960);720p (1280 x
720); D1 (704 x 576/704 x 480); VGA (640x 480); CIF
(352 x 288/352 x 240)
Bit Rate ControlCBR/VBR

Video Bit Rate
H.264: 32 Kbps–6144 Kbps
H.265: 12 Kbps–6400 Kbps
Day/NightAuto(ICR)/Color/B/W
BLCYes
HLCYes
WDRDWDR
White Balance
Auto/natural/street lamp/outdoor/manual/regional
custom
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetectionOFF/ON (4 areas, rectangular)
Region of Interest(RoI)Yes (4 areas)
Smart IRYes
Image Rotation
0°/90°/180°/270° (Support 90°/270° with 1080p
resolution.)
MirrorYes
Privacy Masking4 areas
Network
NetworkRJ-45 (10/100 Base-T)
Protocol
IPv4; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; SMTP;
FTP; DHCP; DNS; NTP; Multicast
InteroperabilityONVIF (Profile S); CGI; P2P; Genetec
User/Host20
Edge StorageFTP; Dahua Cloud
Browser
IE
Chrome
Firefox
Management SoftwareSmart PSS; DSS; DMSS
Mobile PhoneIOS; Android
Certification
Certifications
CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
Power
Power Supply12V DC/PoE (802.3af)
Power Consumption<4.3W
Environment
Operating Conditions -40°C to +60°C (-40°F to +140°F)/less than ≤ 95%
Storage Temperature -40°C to +60°C (-40°F to +140°F)
Ingress ProtectionIP67
Entry Series |DH-IPC-HDW1230S-S4

Structure
CasingMetal + plastic
Dimensions84.9 mm x Φ108 mm (3.3" x Φ4.3")
Net Weight0.26 kg (0.5 lb)
Gross Weight0.39 kg (0.8 lb)

Ordering Information
TypePart NumberDescription
2MP
Camera
DH-IPC-HDW1230SP-S4
2MP Entry IR Fixed Focal Eyeball
Netwok Camera,PAL
DH-IPC-HDW1230SN-S4
2MP Entry IR Fixed Focal Eyeball
Netwok Camera,NTSC
Accessories
(optional)
PFA130-EJunction Box
PFB203WWall Mount
PFA106Mount Adapter
PFB220CCeiling Mount
PFA152-EPole Mount
PFM321DDC12V1A Power Adapter
LR1002-1ET/1EC
Single-port Long Reach Ethernet
over Coax Extender
PFM900-EIntegrated Mount Tester

Rev 001.001© 2019 Dahua . All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.

www.dahuasecurity.com

Dimensions (mm[inch])

Junction MountWall MountCeiling Mount
A3E
B23WA6B22C

Pole Mount
B23WA2E
Accessories
Optional:

PFA130-E
Junction Box
PFA106
Mount Adapter

PFA152-E
Pole Mount

PFM900-E
Integrated Mount
Tester
PFB203W
Wall Mount

LR1002-1ET/1EC
Single-port Long
Reach Ethernet over
Coax Extender

PFB220C
Ceiling Mount

PFM321D
DC12V1A Power
Adapter
Entry Series |DH-IPC-HDW1230S-S4
