IPC-HDW4231EM-ASE-0280B

Verfügbarkeit: 0
Preis: 199,79 € 199.79
bez 23.00% VAT i kosztów dostawy
quantity szt.

product unavailable

zur Wunschliste hinzufügen
Anbieter: DAHUA
Produkt-Code/SKU: IPC-HDW4231EM-ASE-0280B

Beschreibung

Eco Savvy 3.0 | DH-IPC-HDW4231EM-ASE     System Overview  With upgraded H.265 encoding technology, Eco-savvy series brings  high efficient video compression capability. It can save bandwidth and  storage. Meanwhile, the series features starlight, smart IR technology  and intelligent image analysis techniques. This series supports reminder  function, meanwhile fully protected from dust and water, certified to  IP67 and vandal resistant to IK10 standard.   Functions  ePoE technology  The ePoE technology of Dahua, designed internally, adopts advanced  2D-PAM3 coding modulation from physical layer, and realizes full duplex  transmission over 800 meters at the speed of 10Mbps, or 300 meters  at the speed of 100Mbps via Cat 5 or coaxial cable media. Besides,  it supports PoE and PoC power supply technology which has greatly  simplified construction and wiring. Dahua ePoE technology offer a new  way to accomplish long distance transmission between IP camera and  network switch. It allows more flexible surveillance system design,  improves reliability and saves construction and wiring cost.  Starlight Technology <...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle PDF


Textinhalt des PDF-Datenblattes:

Eco Savvy 3.0 | DH-IPC-HDW4231EM-ASE

System Overview
With upgraded H.265 encoding technology, Eco-savvy series brings
high efficient video compression capability. It can save bandwidth and
storage. Meanwhile, the series features starlight, smart IR technology
and intelligent image analysis techniques. This series supports reminder
function, meanwhile fully protected from dust and water, certified to
IP67 and vandal resistant to IK10 standard.
Functions
ePoE technology
The ePoE technology of Dahua, designed internally, adopts advanced
2D-PAM3 coding modulation from physical layer, and realizes full duplex
transmission over 800 meters at the speed of 10Mbps, or 300 meters
at the speed of 100Mbps via Cat 5 or coaxial cable media. Besides,
it supports PoE and PoC power supply technology which has greatly
simplified construction and wiring. Dahua ePoE technology offer a new
way to accomplish long distance transmission between IP camera and
network switch. It allows more flexible surveillance system design,
improves reliability and saves construction and wiring cost.
Starlight Technology
For challenging low-light applications, Dahua’s Starlight Ultra-low Light
Technology offers best-in-class light sensitivity, capturing color details
in low light down to 0.002lux. The camera uses a set of optical features
to balance light throughout the scene, resulting in clear images in dark
environments.
Wide Dynamic Range(WDR)
The camera achieves vivid images, even in the most intense contrast
lighting conditions, using industry-leading wide dynamic range (WDR)
technology. For applications with both bright and low lighting conditions
that change quickly, true WDR (120 dB) optimizes both the bright and
dark areas of a scene at the same time to provide usable video.
Intelligent Video System (IVS)
IVS is a built-in video analytic algorithm that delivers intelligent functions
to monitor a scene for Tripwire violations, intrusion detection, and
abandoned or missing objects. A camera with IVS quickly and accurately
responds to monitoring events in a specific area. In addition to scene
analytics, the camera supports face detection to quickly capture a
face and upload the image to a server. The camera also offers tamper
detection by recognizing a dramatic scene change and generating a
warning message to inspect the camera.
Environmental
Dahua cameras operate in extreme temperature environments, rated for
use in temperatures from -40° C to +60° C (-40° F to +140° F) with 95%
humidity. An optional heater module extends the multi-sensor camera’s
temperature range to -40° C to +60° C (-40° F to +140° F), allowing the
camera to operate in the harshest environments.
Protection(IP67, wide voltage)
The camera allows for ±30% input voltage tolerance, suitable for the
most unstable conditions for outdoor applications. Its 6KV lightning
rating provides effective protection for both the camera and its structure
against lightning. Subjected and certified to rigorous dust and immersion
tests (IP67), the camera is the choice for installation in even the most
unforgiving environments.
Smart H.265+
Smart H.265+ is the optimized implementation of the H.265 codec that
uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI,
flexible multi-frame reference structure and intelligent noise reduction to
deliver high-quality video without straining the network. Smart H.265+
technology reduces bit rate and storage requirements by up to 70%
when compared to standard H.265 video compression.
www.dahuasecurity.com
· 1/2.8” 2Megapixel progressive scan STARVIS
TM
CMOS
· H.265&H.264 triple-stream encoding
· 50/60fps@1080P(1920x1080)
· Smart detection supported
· WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC
· Multiple network monitoring: Web viewer, CMS(DSS/PSS) &
DMSS
· 2.8mm fixed lens (3.6mm,6mm optional)
· Built-in Mic
· Max. IR LEDs Length 50m
· Micro SD memory, IP67, PoE
DH-IPC-HDW4231EM-ASE

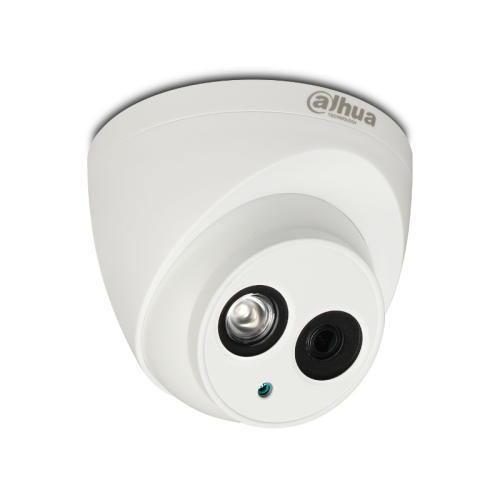

2MP IR Eyeball Network Camera

Temperature

1080p

50/60fps
1080P
H.265

Starlight

IP67
Vandal-proof


www.dahuasecurity.com
Eco Savvy 3.0 |DH-IPC-HDW4231EM-ASE

Technical Specification
Camera
Image Sensor1/2.8” 2Megapixel progressive scan CMOS
Effective Pixels
1920(H) x 1080(V)
RAM/ROM
256MB/32MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual, 1/3(4)~1/100000s
Minimum Illumination
0.007Lux/F1.6( Color,1/3s,30IRE)
0.06Lux/F1.6( Color,1/30s,30IRE)
0Lux/F1.6(IR on)
S/N Ratio
More than 50dB
IR Distance
Distance up to 50m (164ft)
IR On/Off Control
Auto/ Manual
IR LEDs
1
Lens
Lens TypeFixed
Mount TypeBoard-in
Focal Length2.8mm (3.6mm,6mm optional)
Max. ApertureF1.6 (F1.6, F1.6)
Angle of ViewH:110° (87°, 52°), V:58° (48°, 30°)
Optical ZoomN/A
Focus ControlFixed
Close Focus Distance0.9m(1.2m, 2.5m)
DORI Distance
LensDetectObserveRecognizeIdentify
2.8 mm 43m(141ft)17m(56ft)9m(30ft)4m(13ft)
3.6 mm 55m(180ft)22m(72ft)11m(36ft)6m(20ft)
6.0 mm83m(289ft)33m(108ft)17m(56ft)8m(26ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation RangePan:0˚~360˚; Tilt:0˚~78˚; Rotation:0˚~360˚
Intelligence
IVS Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent FunctionsFace Detection
Video
CompressionH.265+/H.265/H.264+/H.264
Streaming Capability3 Streams
Resolution
1080P(1920x1080)/1.3M(1280x960)/
720P(1280x720)/D1(704x576/704x480)/
VGA(640x480)/CIF(352x288/352x240)
Frame Rate
Main Stream: 1080P/720P(1~50/60fps)
Sub Stream: D1(1 ~50/60fps)
Third Stream: 1080P(1~25/30fps)
Bit Rate ControlCBR/VBR
Bit Rate
H.264: 24K ~ 10240Kbps
H.265: 14K ~ 9984Kbps
Day/NightAuto(ICR) / Color / B/W
BLC ModeBLC / HLC / WDR(120dB)


White BalanceAuto/Natural/Street Lamp/Outdoor/Manual
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetetionOff / On (4 Zone, Rectangle)
Region of InterestOff / On (4 Zone)
Electronic Image Stabilization
(EIS)
N/A
Smart IRSupport
DefogN/A
Digital Zoom16x
Flip0°/90°/180°/270°
MirrorOff / On
Privacy MaskingOff / On (4 Area, Rectangle)
Audio
CompressionG.711a/ G.711Mu/ AAC/ G.726
Network
EthernetRJ-45 (10/100Base-T)
Protocol
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;
FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;
UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;
IGMP; SNMP
InteroperabilityONVIF, PSIA, CGI
Streaming MethodUnicast / Multicast
Max. User Access10 Users /20 Users
Edge Storage
NAS
Local PC for instant recording
Mirco SD card 128GB
Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS, Easy4ip
Smart PhoneIOS, Android
Certifications
Certifications
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
Interface
Video InterfaceN/A
Audio InterfaceBuilt-in Mic
RS485N/A
AlarmN/A
Electrical
Power SupplyDC12V, PoE (802.3af)(Class 0)
Power Consumption<5.5W

Eco Savvy 3.0 | DH-IPC-HDW4231EM-ASE

Ordering Information
TypePart NumberDescription
2MP camera
DH-IPC-
HDW4231EMP-ASE-
0360B
2MP IR Eyeball Network Camera, PAL
DH-IPC-
HDW4231EMN-ASE-
0360B
2MP IR Eyeball Network Camera, NTSC
IPC-HDW4231EMP-
ASE-0360B
2MP IR Eyeball Network Camera, PAL
IPC-HDW4231EMN-
ASE-0360B
2MP IR Eyeball Network Camera,NTSC
DH-IPC-
HDW4231EMP-ASE-
0280B
2MP IR Eyeball Network Camera, PAL
DH-IPC-
HDW4231EMN-ASE-
0280B
2MP IR Eyeball Network Camera, NTSC
IPC-HDW4231EMP-
ASE-0280B
2MP IR Eyeball Network Camera, PAL
IPC-HDW4231EMN-
ASE-0280B
2MP IR Eyeball Network Camera, NTSC
DH-IPC-
HDW4231EMP-ASE-
0600B
2MP IR Eyeball Network Camera, PAL
DH-IPC-
HDW4231EMN-ASE-
0600B
2MP IR Eyeball Network Camera, NTSC
IPC-HDW4231EMP-
ASE-0600B
2MP IR Eyeball Network Camera, PAL
IPC-HDW4231EMN-
ASE-0600B
2MP IR Eyeball Network Camera, NTSC
Accessories
(optional)
PFB204W Wall mount
PFA139Junction box
PFA152-EPole Mount
LR1002 ePoE Over Coax Converter
www.dahuasecurity.com

Environmental
Operating Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection
IP67
Vandal ResistanceN/A
Construction
CasingMetal
DimensionsΦ106mmx93.7mm (4.17”x3.69”)
Net Weight0.47Kg (1.04lb)
Gross Weight0.65Kg (1.43lb)
Accessories
Optional:
Dimensions (mm/inch)

PFA139
Junction Box
PFB204W
Wall Mount
PFA152-E
Pole Mount
LR1002
ePoE Over Coax Converter

t
Wa t

Po t

PFB203W + PF A152-E

PFB203W

PF A136

© 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice.Rev 001.001
