Wi-Fi Series | IPC-HFW1435S-W-0280B
IPC-HFW1435S-W-0280B

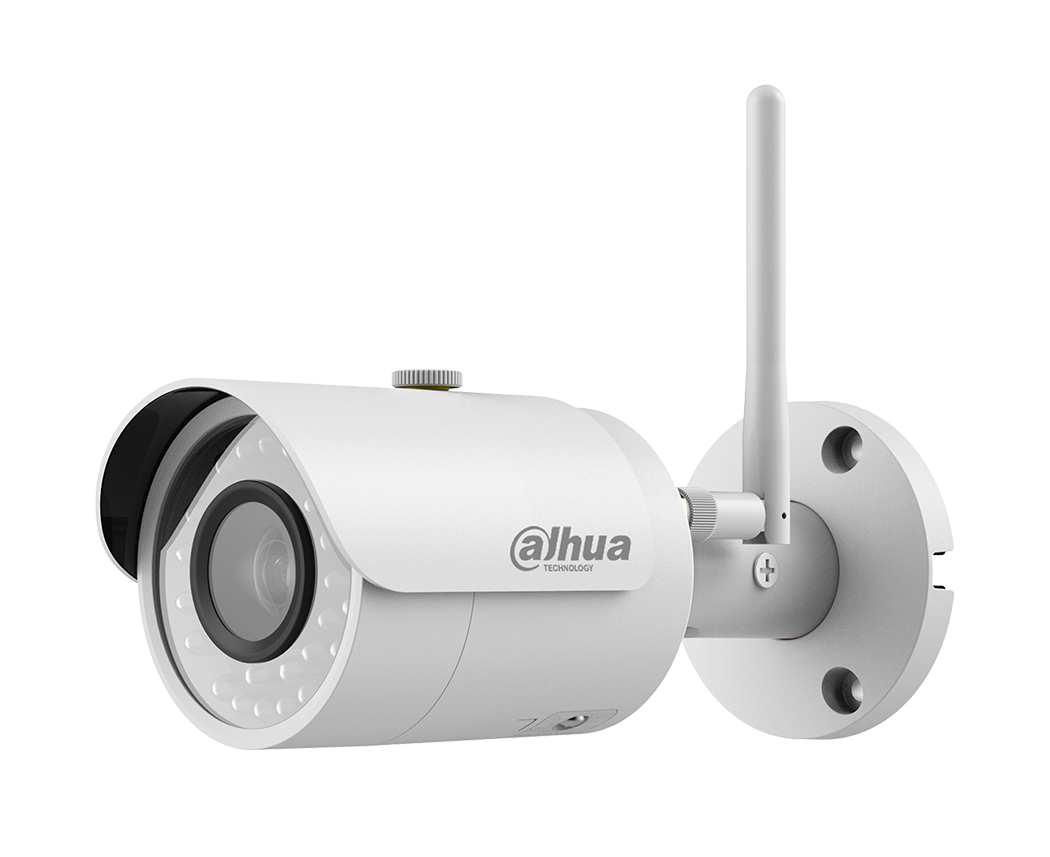

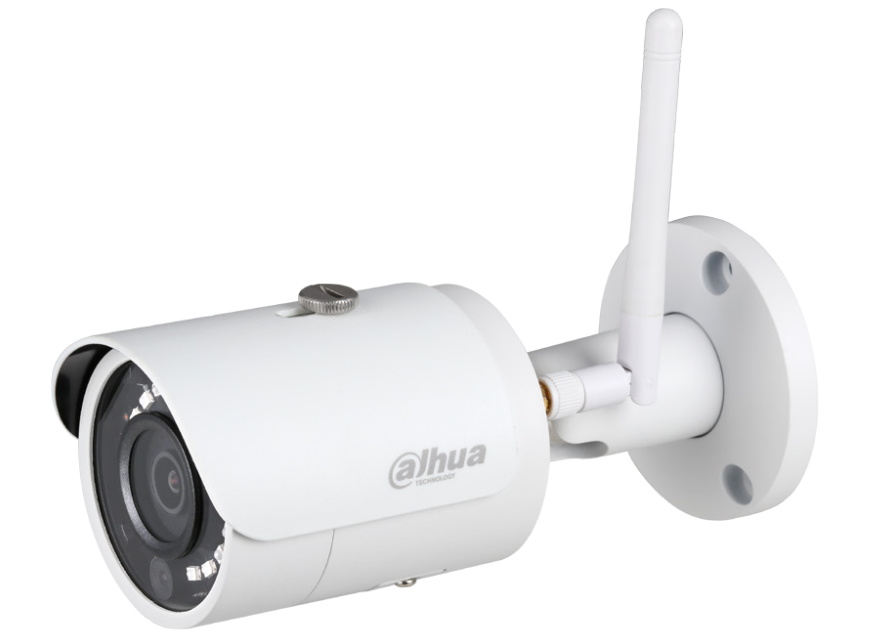

4 MP IR Mini-Bullet Wi-Fi Network Camera
• 1/3” 4 Megapixel progressive CMOS
• H.265 / H.264 dual-stream encoding
• 20fps @ 4M (2688x1520) & 25/30 fps @ 3M (2304x1296)
• DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
• Multiple network monitoring:
Web viewer, CMS (DSS/PSS) & DMSS
• Wi-Fi support
• 2.8 mm fixed lens
• Max IR LEDs Length 30 m
• IP67
System Overview
Functions
The IR Megapixel Fixed Mini-Bullet camera delivers 4MP resolution
with a choice of 2.8mm. The camera’s elegant blend of aesthetics
combined with its compact form factor provides an excellent cho-
ice for a variety of small to mid-size, indoor/outdoor applications
at an affordable price.

IP67
30m IR
4Mp
www.dahuasecurity.com
Features
True Day/Night
A day/night mechanical IR cut filter makes this camera ideal
for applications with fluctuating lighting conditions, delivering color
images during the day and automatically switching to monochrome
as the scene darkens.
Regions of interest
Regions of Interest (ROI) is a user defined feature that allows
the operator to monitor specific areas of a scene while still mainta-
ining overall situational awareness of less important areas.
Smart IR
With IR illumination, detailed images can be captured in low light
or total darkness. The camera’s Smart IR technology adjusts to the
intensity of camera’s infrared LEDs to compensate for the distance
of an object. Smart IR technology prevents IR LEDS from whiting out
images as they come closer to the camera. The camera’s integrated
infrared illumination provides high performance in extreme low-light
environments up to 30m (98ft).
Image flip
Capturing unnecessary data such as surrounding hallway walls can
increase storage requirements without any added value. The image
flip feature allows the camera’s image to be rotated in 90° increments
for better video optimization.
Protection
Supporting ±10% input voltage tolerance, this camera suits even
the most unstable conditions for outdoor applications. Its 2KV light-
ning rating provides protectection against the camera and its structu-
re from the effects of lightning.
Interoperability
The camera conforms to the ONVIF (Open Network Video Interface
Forum) specifications, ensuring interoperability between network
video products regardless of manufacturer.

Wi-Fi Series | IPC-HFW1435S-W-0280B

Technical Specification

Camera
Image Sensor1/3” 4 Megapixel progresive CMOS
Effective Pixels2688(H) x 1520(V)
RAM/ROM512MB / 32MB
Scanning SystemProgressive
Minimum Illumination0.1 Lux / F2.0 (Color), 0 Lux / F2.0 (IR on)
S/N RatioMore than 50dB
IR DistanceDistance up to 30m (98ft)
IR On/Off ControlAuto / Manual
IR LEDs 24

Video
CompressionH.265 / H.264H / MJPEG (Sub Stream)
Streaming Capability2 Streams
Resolution
4M (2688x1520) / 3M (2304x1296) /
1080P (1920x1080) / 720P (1280x720) /
VGA (640x480) / D1 (704x576/704x480) /
CIF (352x288/352x240)
Frame Rate
Main Stream: 4M (1 ~ 20fps) / 3M (1 ~ 25/30fps)
Sub Stream: D1 (1 ~ 25/30fps)
Bit Rate ControlCBR / VBR
Bit Rate
H.265: 12K ~ 8448 Kbps
H.264: 32K ~ 10240 Kbps
Day/NightAuto(ICR) / Color / B/W
BLC ModeBLC / HLC / DWDR
White BalanceAuto / Natural / Street Lamp / Outdoor / Manual
Gain ControlAuto / Manual
Noise Reduction3D DNR
Motion DetetionOff / On (4 Zone, Rectangle)
Region of InterestOff / On (4 Zone)
Electronic ImageSupport
Smart IR Support
Digital Zoom16x
Flip 0° / 90° / 180° / 270°
MirrorOff / On
Privacy MaskingOff / On (4 Area, Rectangle)

Network
EthernetRJ-45 (10/100Base-T)
Wi-Fi Wi-Fi(IEEE802.11b/g/n), 50m(open field)
Protocol
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP;
DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP;
Bonjour; 802.1x; Multicast; ICMP; IGMP
InteroperabilityONVIF, PSIA, CGI
Streaming MethodUnicast / Multicast
Max. User Access10 Users / 20 Users
Edge Storage
NAS (Network Attached Storage), Local PC for instant
recording, 128GB
Web ViewerIE, Chrome, Firefox, Safari
Management
Software
Smart PSS, DSS, Easy4ip
Smart Phone iPhone, iPad, Android Phone

PTZ
Pan / Tilt Range
Pan: 0° ~ 360°;
Tilt: 0° ~ 90°;
Rotation: 0° ~ 360°

Certifications
Certifications
CE (EN 60950:2000)
UL: UL60950-1
FCC: FCC Part 15 Subpart B

Audio
CompressionN/A

Lens
Lens TypeFixed
Mount TypeBoard-in
Focal Length2.8 mm
Max. ApertureF2.0 / F2.0
Field of View106°(H), 56°(V), 127°(D)
Focus ControlFixed
Close Focus DistanceN/A

Electrical
Power SupplyDC12V
Power Consumption< 6.5 W

Warunki pracy
Operating Conditions-10°C ~ +50°C (-14°F ~ +122°F) / Less than 95% RH
Strorage Conditions-10°C ~ +50°C (14°F ~ +122°F) / Less than 95% RH
Ingress ProtectionIP67
Vandal ResistanceN/A

Interface
Video InterfaceN/A
Audio InterfaceN/A
RS485N/A
Alarm N/A

Construction
Casing Metal + Plastic
Dimensions Φ70 mmx 164.7 mm (2.76’’x6.49’’)
Net Weight 0.43 Kg (0.95lb)
Gross Weight0.52 Kg (1.158lb)

www.dahuasecurity.com

Wi-Fi Series | IPC-HFW1435S-W-0280B

www.dahuasecurity.com
© 2019 Dahua. All rights reserved.
Accessories (optional)Dimensions (mm/inch)

PFA134
Juntion Box
PFA150
Pole Mount

Junction MountPole Mount
PFA134PFB134 + PFA150
