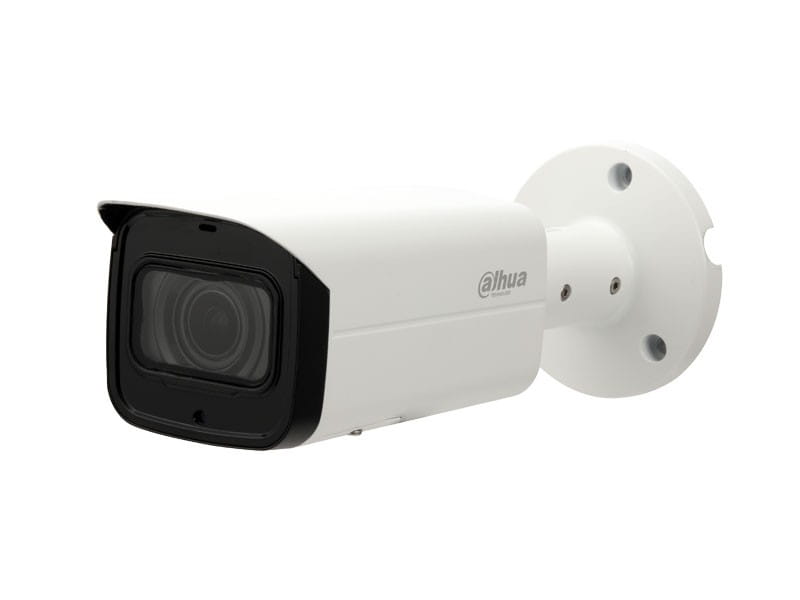

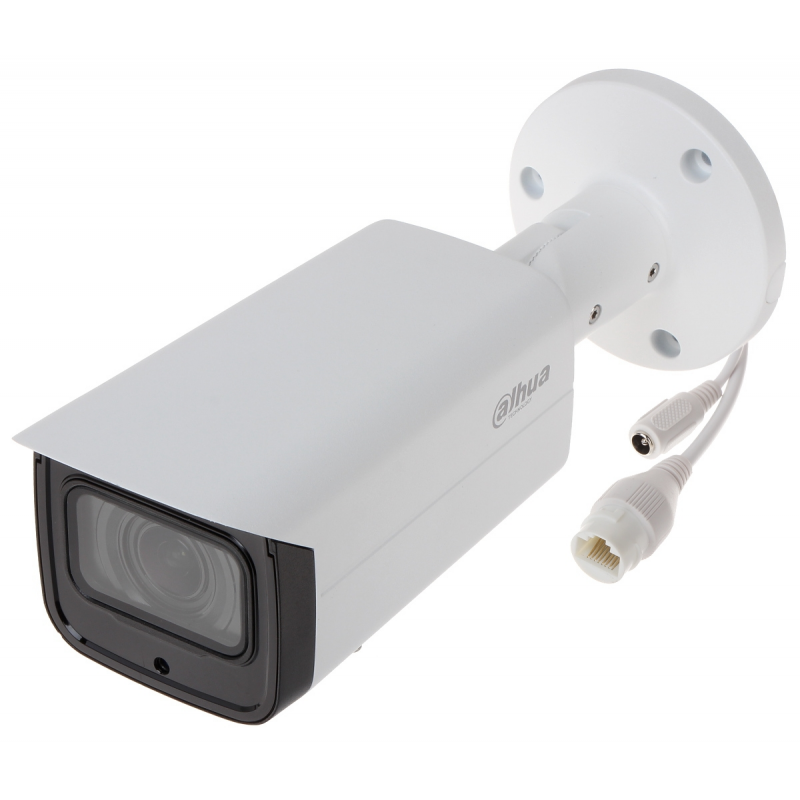

IPC-HFW2431T-ZS-27135

Verfügbarkeit: 1-5
Preis: 232,17 € 232.17
bez 23.00% VAT i kosztów dostawy
quantity szt.

product unavailable

zur Wunschliste hinzufügen
Anbieter: DAHUA
Produkt-Code/SKU: IPC-HFW2431T-ZS-27135

Beschreibung

Lite Series | DH-IPC-HFW2431T-ZS/VFS     System Overview  The IR Megapixel Vari-focal camera delivers 2MP/4MP/5MP resolution  with a 2.7mm – 13.5mm varifocal lens.The camera's elegant blend of  aesthetics combined with a range of easy mounting solutions provides  an excellent choice for a variety of small to mid-size applications at an  affordable price.    Functions  Smart H.265+  Smart H.265+ is the optimized implementation of the H.265 codec that  uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI,  flexible multi-frame reference structure and intelligent noise reduction to  deliver high-quality video without straining the network. Smart H.265+  technology reduces bit rate and storage requirements by up to 70%  when compared to standard H.265 video compression.  Wide Dynamic Range (WDR)  The camera achieves vivid images, even in the most intense contrast  lighting conditions, using industry-leading wide dynamic range (WDR)  technology. For applications with both bright and low lighting conditions  that change quickly, true WDR (120 dB) optimizes both the bright and  dark areas of a scene at the same time to provide usable video.  Smart IR Technology  With IR illumination, det...

Garantie: 36 mon.

Datentabelle PDF


Textinhalt des PDF-Datenblattes:

Lite Series | DH-IPC-HFW2431T-ZS/VFS

System Overview
The IR Megapixel Vari-focal camera delivers 2MP/4MP/5MP resolution
with a 2.7mm – 13.5mm varifocal lens.The camera's elegant blend of
aesthetics combined with a range of easy mounting solutions provides
an excellent choice for a variety of small to mid-size applications at an
affordable price.

Functions
Smart H.265+
Smart H.265+ is the optimized implementation of the H.265 codec that
uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI,
flexible multi-frame reference structure and intelligent noise reduction to
deliver high-quality video without straining the network. Smart H.265+
technology reduces bit rate and storage requirements by up to 70%
when compared to standard H.265 video compression.
Wide Dynamic Range (WDR)
The camera achieves vivid images, even in the most intense contrast
lighting conditions, using industry-leading wide dynamic range (WDR)
technology. For applications with both bright and low lighting conditions
that change quickly, true WDR (120 dB) optimizes both the bright and
dark areas of a scene at the same time to provide usable video.
Smart IR Technology
With IR illumination, detailed images can be captured in low light or
total darkness. The camera's Smart IR technology adjusts the intensity of
camera's infrared LEDs to compensate the distance of an object. Smart
IR technology prevents IR LEDs from whitening out images as they come
closer to the camera. The camera's integrated infrared illumination
provides high performance in extreme low-light environments up to 60m
(197ft).
Protection (IP67, wide voltage)
The camera allows for ±10% input voltage tolerance, suitable for the
most unstable conditions for outdoor applications. Its 2KV lightning
rating provides effective protection for both the camera and its structure
against lightning. Subjected and certified to rigorous dust and immersion
tests (IP67), the camera is the choice for installation in even the most
unforgiving environments.
Environmental
Dahua cameras operate in extreme temperature environments, rated for
use in temperatures from -30° C to +60° C (-22° F to +140° F) with 95%
humidity.
Image flip
Capturing unnecessary data such as surrounding hallway walls can
increase storage requirements without any added value. The image flip
feature allows the camera's image to be rotated in 90° increments for
better video optimization.
Interoperability
The camera conforms to the ONVIF (Open Network Video Interface
Forum) specifications, ensuring interoperability between network video
products regardless of manufacturer.
www.dahuasecurity.com
· 1/3” 4Megapixel progressive CMOS
· H.265 & H.264 dual-stream encoding
· 20fps@4M(2688x1520)&25/30fps@3M(2304x1296)
· WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
· Multiple network monitoring: Web viewer, CMS(DSS/PSS) &
DMSS
· Micro SD card slot, up to 128GB
· 2.7~13.5mm varifocal lens
· Max IR LEDs Length 60m
· IP67, IK10(optional), PoE
DH-IPC-HFW2431T-ZS/VFS
4MP WDR IR Bullet Network Camera

IP67
4Mp

60m IR
H.265+

www.dahuasecurity.com
Lite Series | DH-IPC-HFW2431T-ZS/VFS

Technical Specification
Camera
Image Sensor1/3” 4Megapixel progressive CMOS
Effective Pixels
2688(H) x1520(V)
RAM/ROM
512MB/32MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual, 1/3~1/100000s
Minimum Illumination
0.03Lux/F1.4( Color,1/3s,30IRE)
0.3Lux/F1.4( Color,1/30s,30IRE)
0Lux/F1.4(IR on)
S/N Ratio
More than 50dB
IR Distance
Distance up to 60m(197ft)
IR On/Off Control
Auto/ Manual
IR LEDs
4
Lens
Lens TypeMotorized(-ZS),Manual(-VFS)
Mount TypeBoard-in
Focal Length2.7mm~13.5mm
Max. ApertureF1.4
Angle of ViewH:104°~28°, V:72°~20°
Focus ControlMotorized(-ZS),Manual(-VFS)
Close Focus Distance0.3m
DORI Distance
LensDetectObserveRecognizeIdentify
W64m(210t)26m(85ft)13m(43ft)6m(20ft)
T222m(728ft)89m(292ft)44m(144ft)22m(72ft)
PTZ
Pan/Tilt RangePan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°
Video
CompressionH.265+/H.265/H.264+/H.264
Streaming Capability2 Streams
Resolution
4M(2688x1520)/(2560x1440)/
(2304x1296)/1080P(1920x1080)/
SXGA(1280x1024)/1.3M(1280x
960)/720P(1280x720)/D1(704x576/704x480)/
VGA(640x480)CIF(352x288/352x240)
Frame Rate
4M (1 ~ 20fps)/3M(1 ~ 25/30fps)
D1/CIF(1 ~ 25/30fps)
Bit Rate ControlCBR/VBR
Bit Rate
H.265: 12K ~ 8448Kbps
H.264: 32K ~ 10240Kbps
Day/NightAuto(ICR) / Color / B/W
BLC ModeBLC / HLC / WDR(120dB)


White BalanceAuto/Natural/Street Lamp/Outdoor/Manual
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetetionOff / On (4 Zone, Rectangle)
Region of InterestOff / On (4 Zone)
Electronic Image
Stabilization(EIS)
N/A
Smart IRSupport
Digital Zoom16x
Flip0°/90°/180°/270°
MirrorOff / On
Privacy MaskingOff / On (4 Area, Rectangle)
Audio
CompressionN/A
Network
EthernetRJ-45 (10/100Base-T)
Protocol
HTTP;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;FTP;DHCP
;DNS;DDNS;PPPOE;IPv4/v6;SNMP;QoS;UPnP;NTP
InteroperabilityONVIF, PSIA, CGI
Streaming MethodUnicast / Multicast
Max. User Access10 Users / 20 Users
Edge Storage
NAS
Local PC for instant recording
Micro SD Card 128GB
Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS, Easy4ip
Smart PhoneIOS, Android
Certifications
Certifications
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
Interface
Video InterfaceN/A
Audio InterfaceN/A
RS485N/A
AlarmN/A
Electrical
Power SupplyDC12V PoE (802.3af)(Class 0)
Power Consumption<12.6W(-ZS), <12.6W(-VFS)

Ordering Information
TypePart NumberDescription
4MP camera
DH-IPC-HFW2431TP-
ZS
4MP WDR IR Bullet Network Camera,
PAL
DH-IPC-HFW2431TN-
ZS
4MP WDR IR Bullet Network Camera,
NTSC
IPC-HFW2431TP-ZS
4MP WDR IR Bullet Network Camera,
PAL
IPC-HFW2431TN-ZS
4MP WDR IR Bullet Network Camera,
NTSC
DH-IPC-HFW2431TP-
VFS
4MP WDR IR Bullet Network Camera,
PAL
DH-IPC-HFW2431TN-
VFS
4MP WDR IR Bullet Network Camera,
NTSC
IPC-HFW2431TP-VFS
4MP WDR IR Bullet Network Camera,
PAL
IPC-HFW2431TN-VFS
4MP WDR IR Bullet Network Camera,
NTSC
Accessories
(optional)
PFA135Junction box
PFA152-EPole mount
LR1002 ePoE Over Coax Converter
www.dahuasecurity.com

Environmental
Operating Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67
Vandal ResistanceIK10(optional)
Construction
CasingMetal
Dimensions244.1mmx79mmx75.9mm (9.61”x3.11”x2.99”)
Net Weight0.815kg (1.80lb)
Gross Weight1.08kg (2.38lb)
Dimensions (mm/inch)

tPo
PF A135 + PF A152-E
PF A135

© 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice.Rev 001.001
Lite Series | DH-IPC-HFW2431T-ZS/VFS
Accessories
Optional:

PFA135
Junction Box
PFA152-E
Pole Mount

LR1002
ePoE Over Coax Converter
