Eco Savvy 3.0 | DH-IPC-HFW5831E-Z5E

System Overview
With upgraded H.265 encoding technology, Eco-savvy series brings
high efficient video compression capability. It can save bandwidth and
storage. Meanwhile, the series features starlight, smart IR technology
and intelligent image analysis techniques. This series supports reminder
function, meanwhile fully protected from dust and water, certified to
IP67 and vandal resistant to IK10 standard.

Functions
ePoE technology
The ePoE technology of Dahua, designed internally, adopts advanced
2D-PAM3 coding modulation from physical layer, and realizes full duplex
transmission over 800 meters at the speed of 10Mbps, or 300 meters
at the speed of 100Mbps via Cat 5 or coaxial cable media. Besides,
it supports PoE and PoC power supply technology which has greatly
simplified construction and wiring. Dahua ePoE technology offer a new
way to accomplish long distance transmission between IP camera and
network switch. It allows more flexible surveillance system design,
improves reliability and saves construction and wiring cost.
4K technology
4K technology as a revolutionary breakthrough in image, which enhance
the expressive image of essence, allowing users to experience the best
picture quality brought about by the visual feast . For the purposes of 4K
surveillance with four times the 1080P resolution, presented to the user
with more details . Under the same scenario by raising the pixels , reduce
the camera cost.
Wide Dynamic Range
The camera achieves vivid images, even in the most intense contrast
lighting conditions, using industry-leading wide dynamic range (WDR)
technology. For applications with both bright and low lighting conditions
that change quickly, true WDR (120 dB) optimizes both the bright and
dark areas of a scene at the same time to provide usable video.
Intelligent Video System (IVS)
IVS is a built-in video analytic algorithm that delivers intelligent functions
to monitor a scene for Tripwire violations, intrusion detection, and
abandoned or missing objects. A camera with IVS quickly and accurately
responds to monitoring events in a specific area. In addition to scene
analytics, the camera supports face detection to quickly capture a
face and upload the image to a server. The camera also offers tamper
detection by recognizing a dramatic scene change and generating a
warning message to inspect the camera.
Protection(IP67, IK10, wide voltage)
The camera allows for ±30% input voltage tolerance, suitable for the
most unstable conditions for outdoor applications. Its 6KV lightning
rating provides effective protection for both the camera and its structure
against lightning. Subjected and certified to rigorous dust and immersion
tests (IP67) and impact tests (IK10), the camera is the choice for
installation in even the most unforgiving environments.
Smart H.265+
Smart H.265+ is the optimized implementation of the H.265 codec that
uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI,
flexible multi-frame reference structure and intelligent noise reduction to
deliver high-quality video without straining the network. Smart H.265+
technology reduces bit rate and storage requirements by up to 70%
when compared to standard H.265 video compression.
www.dahuasecurity.com
· 1/2.5” 8Megapixel progressive scan CMOS
· H.265&H.264 dual-stream encoding
· 15fps@4K(3840x2160),25/30fps@3Mp(2304x1296)
· Day/Night(ICR), 3DNR, AWB, AGC, BLC
· Multiple network monitoring: Web viewer, CMS(DSS/PSS) &
DMSS
· 7mm ~35mm 5x zoom lens
· 2/1 Alarm in/out, 1/1 audio in/out
· Max. IR LEDs Length 100m
· Micro SD memory, IP67, IK10, PoE

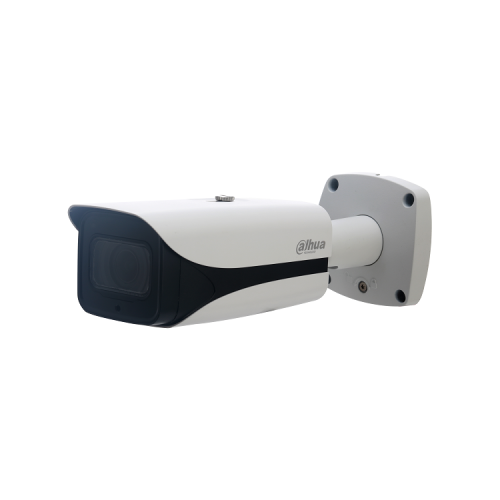

DH-IPC-HFW5831E-Z5E
8MP WDR IR Bullet Network Camera

+

7HPSHUDWXUH

Vandal-proof
,3

www.dahuasecurity.com
Eco Savvy 3.0 | DH-IPC-HFW5831E-Z5E

Technical Specification
Camera
Image Sensor1/2.5” 8Megapixel progressive scan CMOS
Effective Pixels
3840(H)x2160(V)
RAM/ROM
512MB/32MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual, 1/3~1/100000s
Minimum Illumination
0.05Lux/F1.4 (Color,1/3s,30IRE)
0.2Lux/F1.4 (Color,1/30s,30IRE)
0Lux/F1.4(IR on)
S/N Ratio
More than 50dB
IR Distance
Distance up to 100m (328ft)
IR On/Off Control
Auto/ Manual
IR LEDs
4
Lens
Lens TypeMotorized/ Auto Iris(HALL)
Mount TypeBoard-in
Focal Length7mm~35mm
Max. ApertureF1.4
Angle of ViewH:38°~14° , V:22°~8°
Optical Zoom5x
Focus ControlMotorized
Close Focus Distance0.6m
DORI
Distance
LensDetectObserveRecognizeIdentify
W234m(767ft)94m(308ft)47m(154ft)23m(75ft)
T765m(2509ft)306m(1004ft)153m(502ft)76m(251ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation RangePan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚
Intelligence
IVSTripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent FunctionsFace Detection
Video
CompressionH.265+/H.265/H.264+/H.264
Streaming Capability3 Streams
Resolution
4K(3840x2160)/ 6M(3072x2048)/5M(3072x1728)/
5M(2592x1944)/ 4M(2688x1520)/ 3M(2048x1536)/
3M(2304x1296)/ 1080P(1920x1080)/1.3M(1280x960)/
720P(1280x720)/ D1(704x576/704x480)/
VGA(640x480)/ CIF(352x288/352x240)
Frame Rate
Main Stream: 4K(1~15fps)/3M(1~25/30fps)
Sub Stream: D1(1~25/30fps)
Third Stream: 720P(1~25/30fps)
Bit Rate ControlCBR/VBR
Bit Rate
H.264: 24K ~ 10240Kbps
H.265: 14K ~ 9984Kbps


Day/NightAuto(ICR) / Color / B/W
BLC ModeBLC / HLC / WDR
White BalanceAuto/Natural/Street Lamp/Outdoor/Manual
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetetionOff / On (4 Zone, Rectangle)
Region of InterestOff / On (4 Zone)
Electronic Image Stabilization
(EIS)
N/A
Smart IRSupport
DefogN/A
Digital Zoom16x
Flip0°/90°/180°/270°
MirrorOff / On
Privacy MaskingOff / On (4 Area, Rectangle)
Audio
CompressionG.711a/ G.711Mu/ AAC/ G.726
Network
EthernetRJ-45 (10/100Base-T)
Protocol
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;
FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;
UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;
IGMP; SNMP
InteroperabilityONVIF, PSIA, CGI
Streaming MethodUnicast / Multicast
Max. User Access10 Users /20 Users
Edge Storage
NAS
Local PC for instant recording
Mirco SD card 128GB
Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS, Easy4ip
Smart PhoneIOS, Android
Certifications
Certifications
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
Interface
Video Interface1 Port(For adjustment only)
Audio Interface1/1 channel In/Out
RS485N/A
Alarm
2/1 channel In/Out2 channel In: 5mA 5VDC
1 channel Out: 300mA 12VDC
Electrical
Power SupplyDC12V, PoE (802.3af)(Class 0)
Power Consumption<12.95W

Eco Savvy 3.0 | DH-IPC-HFW5831E-Z5E

Ordering Information
TypePart NumberDescription
8MP camera
DH-IPC-
HFW5831EP-Z5E
8MP IR Bullet Network Camera, WDR, PAL
DH-IPC-
HFW5831EN-Z5E
8MP IR Bullet Network Camera, WDR,
NTSC
IPC-HFW5831EP-
Z5E
8MP IR Bullet Network Camera, WDR, PAL
IPC-HFW5831EN-
Z5E
8MP IR Bullet Network Camera, WDR,
NTSC
Accessories
(optional)
PFA121Junction box
PFA152-EPole Mount
LR1002 ePoE Over Coax Converter
www.dahuasecurity.com

Environmental
Operating Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection
IP67
Vandal ResistanceIK10
Construction
CasingMetal
Dimensions273.2mmx95.0mmx95.0mm (10.76”x3.74”x3.74”)
Net Weight1.11Kg (2.44lb)
Gross Weight1.51Kg (3.33lb)
Accessories
Optional:
Dimensions (mm/inch)
PFA121
Junction box

LR1002
ePoE Over Coax Converter

tPo le Moun t
PFB121 + PF A152
PF A121

Rev 001.001© 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice.
PFA152-E
Pole Mount
