Eco Savvy 3.0 | DH-IPC-HFW5831E-ZE
System Overview
With upgraded H.265 encoding technology, Eco-savvy series brings
high e٠cient video compression capability. It can save bandwidth and
storage. Meanwhile, the series features starlight, smart IR technology
and intelligent image analysis techniques. This series supports
reminder function, meanwhile fully protected from dust and water,
certi٠ed to IP67 and vandal resistant to IK10 standard.
Func݀ons
ePoE technology
The ePoE technology of Dahua, designed internally, adopts advanced
2D-PAM3 coding modulation from physical layer, and realizes full
duplex transmission over 800 meters at the speed of 10Mbps, or 300
meters at the speed of 100Mbps via Cat 5 or coaxial cable media.
Besides, it supports PoE and PoC power supply technology which has
greatly simpli٠ed construction and wiring. Dahua ePoE technology
o٠er a new way to accomplish long distance transmission between IP
camera and network switch. It allows more ٠exible surveillance system
design, improves reliability and saves construction and wiring cost.
4K technology
4K technology as a revolutionary breakthrough in image, which
enhance the expressive image of essence, allowing users to
experience the best picture quality brought about by the visual
feast . For the purposes of 4K surveillance with four times the 1080P
resolution, presented to the user with more details . Under the same
scenario by raising the pixels , reduce the camera cost.
Wide Dynamic Range
The camera achieves vivid images, even in the most intense contrast
lighting conditions, using industry-leading wide dynamic range
(WDR) technology. For applications with both bright and low lighting
conditions that change quickly, true WDR (120 dB) optimizes both the
bright and dark areas of a scene at the same time to provide usable
video.
Intelligent Video System (IVS)
IVS is a built-in video analytic algorithm that delivers intelligent
functions to monitor a scene for Tripwire violations, intrusion
detection, and abandoned or missing objects. A camera with IVS
quickly and accurately responds to monitoring events in a speci٠c
area. In addition to scene analytics, the camera supports face
detection to quickly capture a face and upload the image to a server.
The camera also o٠ers tamper detection by recognizing a dramatic
scene change and generating a warning message to inspect the
camera.
P IP IK Z
The camera allows for ±30% input voltage tolerance, suitable for the
most unstable conditions for outdoor applications. Its 6KV lightning
rating provides e٠ective protection for both the camera and its
structure against lightning. Subjected and certi٠ed to rigorous dust
and immersion tests (IP67) and impact tests (IK10), the camera is the
choice for installation in even the most unforgiving environments. Smart H.265+
Smart H.265+ is the optimized implementation of the H.265 codec
that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic
ROI, ٠exible multi-frame reference structure and intelligent noise
reduction to deliver high-quality video without straining the network.
Smart H.265+ technology reduces bit rate and storage requirements
by up to 70% when compared to standard H.265 video compression.

· 1/2.5” 8Megapixel progressive scan STARVIS™ CMOS
· H.265&H.264 dual-stream encoding
· 15fps@4K(3840x2160),25/30fps@3Mp(2304x1296)
· Day/Night(ICR), 3DNR, AWB, AGC, BLC
· Multiple network monitoring: Web viewer, CMS(DSS/PSS) &
DMSS
· 2.7mm ~12mm motorized lens
· Max. IR LEDs Length 50m
· Micro SD memory, IP67, IK10, PoE

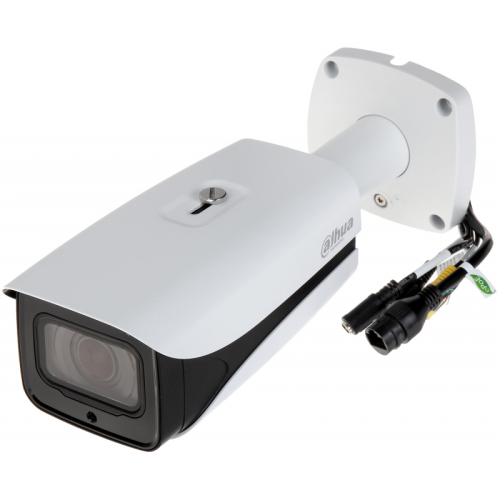

DH - IPC- HFW5831E-ZE
8MP WDR IR Bullet Network Camera

+
7HPSHUDWXUHVandal-proof
,3

www.dahuasecurity.com
Eco Savvy 3.0 | DH-IPC-HFW5831E-ZE
T S
Camera
Image Sensor1/2.5” 8Megapixel progressive scan CMOS
Effective Pixels3840(H)x2160(V)
RAM/ROM512MB/32MB
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual, 1/3~1/100000s
Minimum Illumination
0.05Lux/F1.4 (Color,1/3s,30IRE)
0.2Lux/F1.4 (Color,1/30s,30IRE)
0Lux/F1.4(IR on)
S/N RatioMore than 50dB
IR DistanceDistance up to 50m (164ft)
IR On/Off ControlAuto/ Manual
IR LEDs4
Lens
Lens TypeMotorized/ Auto Iris(DC)
Mount TypeBoard-in
Focal Length2.7mm~12mm
Max. ApertureF1.4
A VH:110°~40° , V:58°~23°
Optical Zoom4x
Focus ControlMotorized
Close Focus Distance0.3m
DORI
Distance
LensDetectObserveRecognizeIdentify
W85m(280ft)34m(112ft)17m(56ft)8.5m(28ft)
T228m(748ft)91m(299ft46m(151ft)23m(75ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation RangePan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚
Intelligence
IVSTripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent FunctionsFace Detection
Video
CompressionH.265+/H.265/H.264+/H.264
Streaming Capability3 Streams
Resolution
4K(3840x2160)/ 6M(3072x2048)/5M(3072x1728)/
5M(2592x1944)/ 4M(2688x1520)/ 3M(2048x1536)/
3M(2304x1296)/ 1080P(1920x1080)/1.3M(128
0x960)/ 720P(1280x720)/ D1(704x576/704x480)/
VGA(640x480)/ CIF(352x288/352x240)
Frame Rate
Main Stream: 4K(1~15fps)/3M(1~25/30fps)
Sub Stream: D1(1~25/30fps)
Third Stream: 720P(1~25/30fps)
Bit Rate ControlCBR/VBR
Bit RateH.264: 24K ~ 10240Kbps H.265: 14K ~ 9984Kbps

Day/NightAuto(ICR) / Color / B/W
BLC ModeBLC / HLC / WDR
White BalanceAuto/Natural/Street Lamp/Outdoor/Manual
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetetionOff / On (4 Zone, Rectangle)
Region of InterestOff / On (4 Zone)
Electronic Image Stabilization
(EIS)
N/A
Smart IRSupport
DefogN/A
Digital Zoom16x
Flip0°/90°/180°/270°
MirrorOff / On
Privacy MaskingOff / On (4 Area, Rectangle)
Audio
CompressionG.711a/ G.711Mu/ AAC/ G.726
Network
EthernetRJ-45 (10/100Base-T)
Protocol
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;
FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;
UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;
IGMP; SNMP
InteroperabilityONVIF, PSIA, CGI
Streaming MethodUnicast / Multicast
Max. User Access10 Users /20 Users
Edge Storage
NAS
Local PC for instant recording
Mirco SD card 128GB
W VIE, Chrome, Firefox, Safari
M SSmart PSS, DSS, Easy4ip
Smart PhoneIOS, Android
Certi٠cations
Certifications
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
Interface
Video InterfaceN/A
Audio Interface1/1 channel In/Out
RS N/A
Alarm
2 channel In: 5mA 5VDC
1 channel Out: 300mA 12VDC
Electrical
P SDC12V, PoE (802.3af)(Class 0)
P C<12.95W

Eco Savvy 3.0 | DH-IPC-HFW5831E-ZE
O I
Type Part NumberD
8MP camera
DH-IPC-
HFW EP ZE
MP IR B N C WDR PAL
DH-IPC-HFW5831EN-ZE MP IR B N C WDR
NTSC
IPC HFW EP ZE
MP IR B N C WDR PAL
IPC-HFW5831EN-ZE MP IR B N C WDR
NTSC
Accessories
Z
PFA J
PFA EPole Mount
LR1002 ePoE Over Coax Converter
www.dahuasecurity.com
Environmental
Operating Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67
Vandal ResistanceIK10
Construction
CasingMetal
Dimensions273.2mmx95.0mmx95.0mm (10.76”x3.74”x3.74”)
Net Weight1.11Kg (2.44lb)
Gross Weight1.51Kg (3.33lb)
Accessories
O
Dimensions (mm/inch)
PFA121
Junction box

LR1002
ePoE Over Coax Converter
tPole Mount
PFB121 + PF A152PFA121
Rev 001.001© 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice.
PFA152-E
Pole Mount
