Ultra-AI | DH-IPC-HFW7442H-Z4FR

www.dahuasecurity.com
DH-IPC-HFW7442H-Z4FR

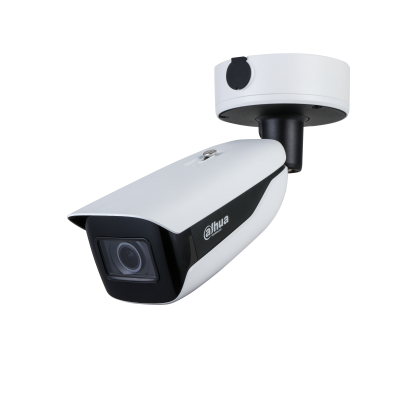

4MP AI IR Bullet Network Camera

System Overview
With advanced chip, image sensor and deep learning algorithm, Dahua
Ultra-AI Series network camera supports various intelligent functions and
meets customers' requirements in different scenes. Adopting excellent
image processing technology, Dahua AI network camera performs well
in WDR and low illuminance environment. For intelligent functions, it
supports face detection, people counting, perimeter protection, video
metadata (vehicle, non-motor vehicle, person detection and snapshot).
The camera provides better solution to image processing and intelligent
application.
Functions
People Counting
People counting adopts deep learning algorithm to detect human body
target, and tracks the target in real time, which realizes independent
statistics of entry number and exit number. And the accuracy rate is up
to 98%.
Video Structurization
Video metadata adopts deep learning algorithm to detect vehicle, non-
motor vehicle and people in the image, track the target in real time, and
then capture the target and extract attributes.
Ultra WDR
Standard WDR/HDR camera can provide 120 dB dynamic range. How-
ever, for some scenes with wider contrast range, 120 dB is slightly insuf-
ficient. By adopting the latest technology, Dahua Cameras can provide
an amazing dynamic range up to 140 dB.
Smart H.265+
Smart H.265+ is an effective coding method based on H.265. Com-
paring with H.265, smart H.265+ improves efficiency more than 70%
through auto scene judgement, dynamic ROI and dynamic GOP. Smart
H.265+ provides better solution to save storage, bandwidth and power
consumption.
EPOE
Dahua ePoE technology, designed internally, adopts advanced 2D-PAM3
coding modulation from physical layer, and realizes full duplex transmis-
sion over 800 meters at the speed of 10 Mbps, or 300 meters at the
speed of 100 Mbps via Cat 5 or coaxial cable media. Besides, it supports
PoE and PoC power supply technology which has greatly simplified
construction and wiring. Dahua ePoE technology offer a new way to
accomplish long distance transmission between IP camera and network
switch. It allows more flexible surveillance system design, improves reli-
ability and saves construction and wiring cost.
Face Recognition
Once facial features are extracted from captured faces, they are stored
in a database where they can be easily searched and compared against
other images. Once a successful match is found, the system outputs the
result. The Dahua Face Recognition camera supports a built-in database
that stores up to 200,000 facial images, helping the camera achieve real-
time face capture and comparison.
Perimeter Protection
Dahua’s Perimeter Protection functions significantly improved accuracy.
Perimeter Protection reduces false alarms and decreases pixel
count requirements for object detection. Perimeter Protection features
custom tripwires based on object type for automation in limited access
areas such as pedestrian or vehicle-only zones. This combination of
advanced AI analytics and real-time alerts to a desktop or to a mobile
client reduces system requirements and resources resulting in greater
surveillance system efficiency.
· 4MP, 1/1.8" CMOS image sensor,low illuminance, high image
definition
· Max outputs 4MP (2688 x 1520) @25 fps/30 fps, meets high
frame rate requirement, and max. supports 60 fps
· H.264 & H.265 coding, high compression ration
· WDR, day/night, 3D DNR, AWB, HLC, BLC
· ROI, SVC, SMART H.264/H.265, flexible coding, applicable to
various bandwidth and storage environments
· With deep learning algorithm, it supports people counting, face
recognition, perimeter protection,and video metadata.
· 24V AC/POE/12V DC power support
· Five streams for three-channel HD video dispaly
· IP67, IK10 protection grad

4Mp

Metadata
Face Recognition
People Counting
Temperature

Perimeter

IP67


Ultra-AI | DH-IPC-HFW7442H-Z4FR

Technical Specification
Camera
Image Sensor
1/1.8” 4Megapixel progressive CMOS
Effective Pixels
2688 (H) x 1520 (V)
ROM
16 GB
RAM
2 GB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100000 s
Min. Illumination
0.001 Lux@F1.6 (Color, 1/3 s, 30IRE)
IR Distance
Distance up to 120m (393.70 ft)
IR On/Off Control
Auto
IR LEDs Number
4 (IR LEDs)
Pan/Tilt/Rotation Range
Horizontal: 0°–360°
Vertical: 0°–90°
Rotation: 0°–360°
Lens
Lens TypeElectric zoom
Mount TypeModule interface
Focal Length8 mm–32 mm
Max. ApertureF1.6
Field of View
Horizontal: 40° (W)–15° (T)
Vertical: 23° (W)–9° (T)
Diagonal: 46° (W)–18° (T)
Optical Zoom4 times
Iris TypeAuto aperture
Close Focus Distance
W: 2.5 m (8.20 ft)
T: 6 m (19.69 ft)
DORI
Distance
LensDetectObserveRecognizeIdentify
W
151 m
(495.4 ft)
60.7 m
(199.15 ft)
30.3 m
(99.41 ft)
15.1 m
(49.54 ft)
T
400 m
(1312.34 ft)
160 m
(524.93 ft)
80 m
(262.47 ft)
40 m
(131.23 ft)
Smart event
General IVS AnalyticsAbandoned object, moving object
Professional, intelligent
Perimeter Protection
Tripwire, intrusion (Recognition of vehicle and people),
fast moving, loitering detection, parking detection and
people gathering.
Face SnapshotYes
Face Recognition
Face recognition, track, priority, snapshot, face
enhancement, face exposure, face attribute extract,
6 attributes and 8 expressions: Gender, age, glasses,
expressions (anger, sadness, disgust, fear, surprise,
calm, happiness and confusion), mask, beard
Face matting setting: face, single inch photo
Two snapshot strategies: priority snapshot, recognition
Face angle filter Priority time setting Management of 5
group face libraries Single person register and person
register in batch Face recognition and similarity setting
Max supports face contrast in face library with
200,000 faces

www.dahuasecurity.com

Video Structurization
Vehicle detection, non-motor vehicle detection,
personnel detection, face detection, track, snapshot,
optimization, report high quality picture, vehicle
attributes (license plate, vehicle type, vehicle color,
and vehicle brand), other attributes (sun visor,
seatbelt, smoking, phoning, in-car accessories, and
annual vehicle inspection mark), non-motor vehicle
attributes: vehicle type, vehicle color,driver number,
cloth type, cloth color, and hat), personnel attribute
(cloth type, trousers type, cloth color, trousers color,
knapsack, and gender), face attribute (gender, age ,
glasses, mask, and beard)
People Counting
People counting (count the entry number, exit number
and pass number), display and output daily/monthly/
annual statistics, No. in area
Intelligent Search
Work together with Smart NVR to perform refine
intelligent search, event extraction and merging to
event videos.
Video
Video Compression H.265, H.264, H.264H, H.264B, MJPEG
Smart Codec
H.264: Yes
H.265: Yes
Video Frame Rate
Main Stream: 2688 x 1520 (1–50/60 fps)
sub stream 1: 704 x 576 (1–25/30 fps)
sub stream 2: 1920 x 1080 (1–25/30 fps)
sub stream 3: 1920 x 1080 (1–25/30 fps)
sub stream 4: 704 x 576 (1–25/30 fps)
Stream Capability5 streams
Resolution
4M (2688 x 1520), 3M (2304 x 1296), 1080 (1920 x
1080), 1.3M (1280 x 960), 720p (1280 x 720), D1 (704
x 576/704 x 480), VGA (640 x 480), CIF (352 x 288/352
x 240)
Bit Rate ControlCBR/VBR
Video Bit Rate
H.264: 32–10240 kbps
H.265: 12–10240 kbps
Day/NightICR switch
BLCYes
WDR140 dB
White Balance
Auto/natural/street lamp/outdoor/manual/regional
Custom
Gain ControlManual
Noise Reduction3D DNR
Region of Interest(RoI)Yes (4 areas)
Electronic Image
Stabilization(EIS)
Yes
Smart IRYes (Adjust by user)
DefogYes
Image Rotation
0°/90°/180°/270° (Supports 90°/270° with 1080p
resolution or below.)
MirrorYes
Privacy Masking4 areas
Audio
Audio CompressionG.711a, G.711Mu, G726, AAC

www.dahuasecurity.com

Rev 001.001 © 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.
Ultra-AI | DH-IPC-HFW7442H-Z4FR

Network
NetworkRJ-45 (100/1000 Base-T)
Protocol
HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP,
DNS, DDNS, PPPoE, IPv4/v6, SNMP, QoS, UPnP, NTP
InteroperabilityONVIF(Profile S/Profile G); CGI; P2P; RTMP
Scene self-adaptation Yes
User/Host20
Edge StorageFTP; Micro SD card (256 G); NAS; SFTP
Browser
IE: Versions later than IE9
Google: Versions later than Chrome 42
Firefox: Versions later than Firefox 48.0.2
Management SoftwareSmart PSS, DSS PRO, NVR, IVSS
Mobile PhoneIOS, Android
Certification
Certifications
CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Port
RS-4851 (Bit rate: 1200 bps–115200 bps)
Audio Input
Audio Interface: 1/1 channel In/Out
Audio Output
Alarm Input
3 channel In: 5mA 5V DC
2 channel Out: 1000mA 30V DC/500mA 50V AC
Alarm Output
Power
Power Supply12V DC/24V AC/POE
Power Consumption<17.3W
Environment
Operating Temperature -40°C to +60°C (-40°F to +140°F)
Operating Humidity≤95%
Storage Temperature -40°C to +60°C (-40°F to +140°F)
Ingress ProtectionIP67, IK10
Structure
CasingMetal + Plastic
Dimensions
340.1 mm x 108.5 mm x 92.9 mm (13.39" x 4.27" x
3.66") (L x W x H)
Net Weight1.6 kg (3.53 lb)
Gross Weight2.4 kg (5.29 lb)


Ordering Information
TypePart NumberDescription
4MP Camera
DH-IPC-
HFW7442HP-Z4FR
4MP AI IR Bullet Network Camera
IPC-HFW7442HP-
Z4FR
4MP AI IR Bullet Network Camera
DH-IPC-
HFW7442HN-Z4FR
4MP AI IR Bullet Network Camera
IPC-HFW7442HN-
Z4FR
4MP AI IR Bullet Network Camera
Accessories
(optional)
PFA154Pole Mount

Pole ount
allount

DH-PFA154

Junction Mount

Accessories
Optional:
PFA154
Pole Mount
Dimensions (mm/inch)
