IPC-PDBW8840-A180

· Four 2MP 1/2.8" CMOS image sensor, low illuminance, high image   definition  · Outputs max. 8MP (4096 x 1800) @30 fps  · Built-in IR LED, max. IR distance: 30 m  · ROI, SMART H.264+/H.265+, flexible coding, applicable to various   bandwidth and storage environments  · Intelligent functions: Crowd distribution map, Vehicle Density  · Abnormality detection: Motion detection, video tampering, scene   changing, audio detection, no SD card, SD card full, SD card error,   network disconnection, IP conflict, illegal access, and voltage   detection  · Alarm: 2 in, 2 out; audio: 1 in, 1 out; 485; BNC; supports max. 256 G   SD card  · 12V DC/24V AC/PoE power supply; easy for installation  · Supports object tracking  · IP67,IK10 protection  DH-IPC-PDBW8840-A180  4x2MP WizMind Multi-Sensor Panoramic Dome Network Camera    www.dahuasecurity.com  The splicing camera supports a 180° panoramic view and 4-channel hard-  ware splicing to realize HD panoramic surveillance. The camera supports  crowd situation analysis, vehicle situation analysis, and perimeter protec-  tion. It is widely applied in various scenes such as squares, airports, safe  city, and traffic.  Launched by Dahua Technology, Dahua WizMind...

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

· Four 2MP 1/2.8" CMOS image sensor, low illuminance, high image
definition
· Outputs max. 8MP (4096 x 1800) @30 fps
· Built-in IR LED, max. IR distance: 30 m
· ROI, SMART H.264+/H.265+, flexible coding, applicable to various
bandwidth and storage environments
· Intelligent functions: Crowd distribution map, Vehicle Density
· Abnormality detection: Motion detection, video tampering, scene
changing, audio detection, no SD card, SD card full, SD card error,
network disconnection, IP conflict, illegal access, and voltage
detection
· Alarm: 2 in, 2 out; audio: 1 in, 1 out; 485; BNC; supports max. 256 G
SD card
· 12V DC/24V AC/PoE power supply; easy for installation
· Supports object tracking
· IP67,IK10 protection
DH-IPC-PDBW8840-A180

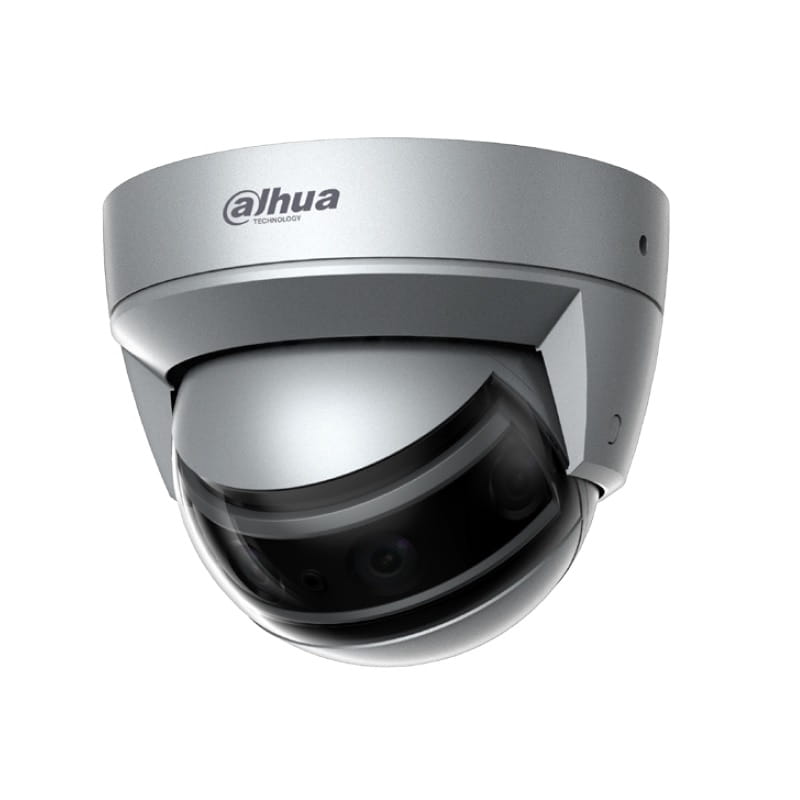

4x2MP WizMind Multi-Sensor Panoramic Dome Network Camera

www.dahuasecurity.com
The splicing camera supports a 180° panoramic view and 4-channel hard-
ware splicing to realize HD panoramic surveillance. The camera supports
crowd situation analysis, vehicle situation analysis, and perimeter protec-
tion. It is widely applied in various scenes such as squares, airports, safe
city, and traffic.
Launched by Dahua Technology, Dahua WizMind is a full portfolio of
solutions composed of project-oriented products including IPC, NVR,
PTZ, XVR, Thermal and software platform which adopts industry-leading
deep learning algorithms. Focusing on customer’s requirements,
WizMind provides precise, reliable and comprehensive AI solutions for
verticals.
Series Overview
Functions
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart
encoding technology realizes the higher encoding efficiency than H.265
and H.264, provides high-quality video, and reduces the cost of storage
and transmission.
Panoramic Splicing
With advanced splicing algorithm, Dahua Panoramic Splicing technology
deletes overlapped area and splices multiple images to be a complete
panorama. The field of view of the spliced image can be up to 360°,
which largely improves surveillance efficiency and user experience.
Generally, after splicing, the field of view of four-sensor camera can be
180°, and the field of view of eight-sensor camera can be 360°.
Crowd Density
With deep learning algorithm, Dahua Crowd Density technology can
detect the crowd density on the image, and display it on heat map;
it can detect people quantity and density in selected area and set
threshold. When the number or density is larger or smaller than the
threshold, it triggers linkage.
Vehicle Density
With deep learning algorithm, Dahua Vehicle Density technology
analyses the vehicle situation in the image, such as vehicle number in
selected area. You can set threshold, and when the number is larger or
smaller than the threshold, it triggers linkage.
IVS
With advanced video algorithm, Dahua IVS technology supports
intelligent functions, such as tripwire and intrusion.
Protection (IP67, IK10, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has
dust-proof function, and the enclosure can works normal after soaking
in 1 m deep water for 30 minutes.
IK10: The enclosure can stand the punch more than 5 times from a 5 kg
hammer falling from a height of 40 cm (Impact energy is 20J).
Wide voltage: The camera allows ±30% input voltage tolerance (wide
voltage range), and it is widely applied to outdoor environment with
instable voltage.

Panoramic Splicing
Vehicle Density
IVS
Crowd Density

IP67&IK10+

| DH-IPC-PDBW8840-A180


www.dahuasecurity.com

Technical Specification
Camera
Image Sensor1/2.8”4x2Megapixel progressive CMOS
Max. Resolution4096 (H) x 1800 (V)
ROM4 GB
RAM2 GB
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual 1/3 s–1/100,000 s
Min. Illumination0.002 Lux @F1.6
S/N Ratio＞56dB
Illumination Distance30 m (98.4 ft) (IR LED)
Illuminator On/Off ControlAuto/Manual
Illuminator Number6 (IR LED)
Pan/Tilt/Rotation Range
Pan: 0° to 355°
Tilt: 0° to 75°
Rotation: -20° to 20°
Lens
Lens TypeFixed-focal
Mount TypeM12
Focal Length2.8 mm
Max. ApertureF1.6
Field of ViewHorizontal :180°; Vertical 90°
Iris TypeFixed
Close Focus Distance0.6 m (2.0 ft)
DORI Distance
DetectObserveRecognizeIdentify
38.6 m
(126.6 ft)
15.4 m
(50.5 ft)
7.7m
(25.3 ft)
3.9 m
(12.8 ft)
Artifical Intelligence
Vehicle Density
Vehicle density; parking upper limit; vehicle
congestion alarm
Crowd Density
Crowd map, global people counting; people
counting in area
General Intelligence
IVSTripwire; intrusion
Video
Video Compression
H.265; H.264; H.264H; H.264B; MJPEG (only
supported by the sub stream)
Smart CodecSmart H.265+/ Smart H.264+
Video Frame Rate
Main stream: 4096 x 1800 (1–25/30 fps)
Sub stream: 1024 x 452 (1–25/30 fps)
Third stream: 1920 x 832 (1–25/30 fps)
Stream Capability3 streams
Resolution
4096 x 1800; 3840 x 1680; 2880 x 1264; 1024 x
452; 1920 x 832; 1280 x 560

Bit Rate ControlCBR/VBR
Video Bit Rate
H.264: 9 kbps–17664 kbps
H.265: 9 kbps–17664 kbps
Day/NightAuto (ICR)/Color/B/W
BLCYes
HLCYes
WDRDWDR
Scene Self-adaptation Yes
White Balance
Auto/natural/street lamp/outdoor/manual/regional
custom
Gain ControlAuto/Manual
Noise Reduction3D NR
Motion DetectionOFF/ON (4 areas, rectangular)
Region of Interest (RoI)Yes (4 areas)
Smart IlluminationYes
DefogYes
Privacy Masking4 areas
Audio
Audio CompressionG.711A; G.711Mu; G.726; AAC; G.723
Alarm Event
Alarm Event
No SD card; SD card full; SD card error; network
disconnection; IP conflict; illegal access; motion
detection; video tampering; tripwire; intrusion;
scene changing; audio detection; intensity change;
voltage detection; external alarm; safety exception;
crowd distribution map; vehicle congestion; parking
upper limit
Network
NetworkRJ-45 (10/100/1000 Base-T)
SDK and APIYes
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP;
RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS;
QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS;
SAMBA; PPPoE; 802.1x; SNMP
Interoperability
ONVIF (Profile S/Profile G/Profile T); CGI; P2P;
Milestone; Genetec
User/Host20 (Total bandwidth: 80 M)
Storage
Dahua Cloud ; FTP; SFTP; Micro SD card (support
max. 256 G); NAS
Browser
IE: IE9 and later
Chrome: 50 and later
Firefox: 48 and later
Management SoftwareSmart PSS; DSS; DMSS
Mobile PhoneIOS; Android
Certifications
Certifications
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
| DH-IPC-PDBW8840-A180


www.dahuasecurity.com
Rev 001.001© 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.

Ordering Information
TypeModelDescription
8MP Camera
DH-IPC-
PDBW8840P-A180-
E4-DC12AC24
4x2MP WizMind Multi-Sensor
Panoramic Dome Network Camera,
PAL
DH-IPC-
PDBW8840N-A180-
E4-DC12AC24V
4x2MP WizMind Multi-Sensor
Panoramic Dome Network
Camera,NTSC
IPC-PDBW8840P-
A180-E4-
DC12AC24V
4x2MP WizMind Multi-Sensor
Panoramic Dome Network
Camera,PAL
IPC-PDBW8840N-
A180-E4-
DC12AC24V
4x2MP WizMind Multi-Sensor
Panoramic Dome Network
Camera,NTSC
Accessories
PFA111-SGMount Adapter
PFB300C-SGCeiling mount
PFB303W-SGWall Mount

Port
RS-4851 (baud rate range: 1200 bps–115200 bps)
Audio Input1 channel (RCA port)
Audio Output1 channel (RCA port)
Alarm Input2 channels in: 5mA 3V–5V DC
Alarm Output2 channels out: 1,000mA 30V DC/500mA 50V DC
Power
Power Supply12V DC/24V AC/PoE(802.3at)
Power Consumption <14.9W
Environment
Operating Conditions–40°C to +60°C (–40°F to +140°F)/Less than 95% RH
Storage Temperature–40°C to +60°C (–40°F to +140°F）
Protection GradeIP67;IK10
Construction
CasingMetal + plastic
Dimensions169.5 mm x Φ212 mm (6.7" x Φ8.3")
Net Weight3.65 kg (8.0 lb)
Gross Weight4.37 kg (9.6 lb)

PFB303W-SG
PFA111-SG
Mount Adapter
Wall Mount
PFB300C-SG
Ceiling mount
Accessories
Dimensions (mm[inch])
| DH-IPC-PDBW8840-A180

Optional:
Included:
