www.dahuasecurity.com

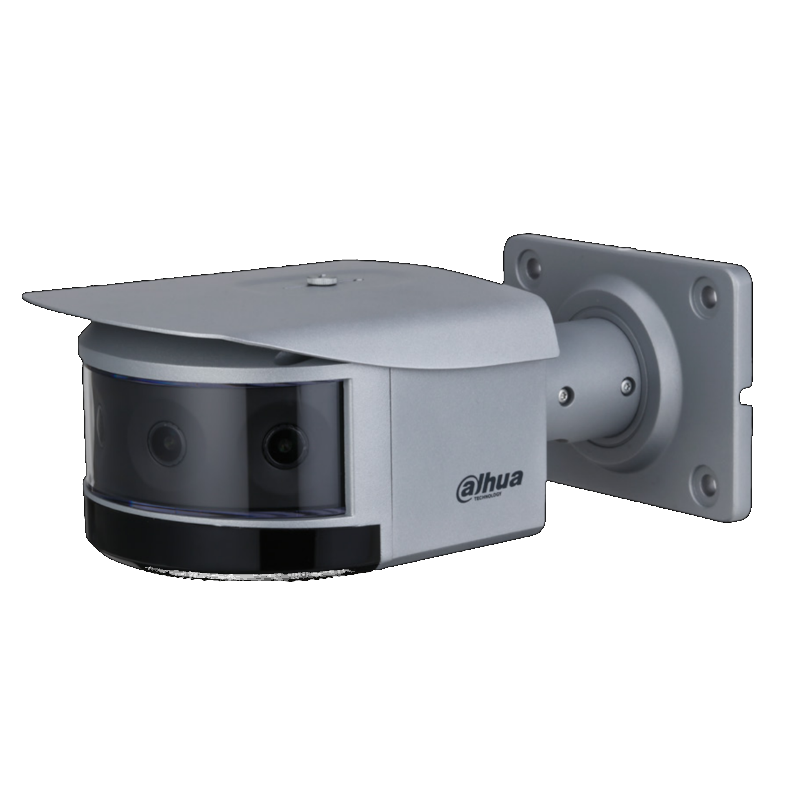

DH-IPC-PFW83242-A180
4x8MP WizMind Multi-Sensor Panoramic Bullet Network Camera

· 4 x 8MP, 1/1.8" CMOS image sensor, low illuminance, high image
definition
· Outputs max. 32MP (8192 x 3840) @25/30 fps; with intelligent
functions enabled, it can output 32MP (8192 x 3840) @25 fps
· Built-in IR LED, max. IR distance: 30 m
· ROI, SMART H.264+/H.265+, flexible coding, applicable to various
bandwidth and storage environments.
· Intelligent detection: Intrusion, tripwire
· Intelligent functions: Crowd distribution map, Vehicle situation
· Supports object tracking and image correction
· Support video clip, the image can be clipped as needed
· Supports max. 256 G Micro SD card
· 12V DC power supply
· IP67, IK10 protection

Launched by Dahua Technology, Dahua WizMind is a full portfolio of
solutions composed of project-oriented products including IPC, NVR,
PTZ, XVR, Thermal and software platform which adopts industry-leading
deep learning algorithms. Focusing on customer’s requirements,
WizMind provides precise, reliable and comprehensive AI solutions for
verticals.
Series Overview
The splicing camera supports a 180° panoramic view and 4-channel
hardware splicing to realize HD panoramic surveillance. The camera
supports crowd situation analysis, vehicle situation analysis, and
perimeter protection. It is widely applied in various scenes such as
squares, airports, safe city, and traffic.
Functions
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart
encoding technology realizes the higher encoding efficiency than H.265
and H.264, provides high-quality video, and reduces the cost of storage
and transmission.
Panoramic Splicing
With advanced splicing algorithm, Dahua Panoramic Splicing technology
deletes overlapped area and splices multiple images to be a complete
panorama. The field of view of the spliced image can be up to 360°,
which largely improves surveillance efficiency and user experience.
Generally, after splicing, the field of view of four-sensor camera can be
180°, and the field of view of eight-sensor camera can be 360°.
Crowd Density
With deep learning algorithm, Dahua Crowd Density technology can
detect the crowd density on the image, and display it on heat map;
it can detect people quantity and density in selected area and set
threshold. When the number or density is larger or smaller than the
threshold, it triggers linkage.
Vehicle Situation
With deep learning algorithm, Dahua Vehicle Situation technology
analyses the vehicle situation in the image, such as vehicle number in
selected area. You can set threshold, and when the number is larger or
smaller than the threshold, it triggers linkage.
Perimeter Protection
With deep learning algorithm, Dahua Perimeter Protection technology
can recognize human and vehicle accurately. In restricted area (such
as pedestrian area and vehicle area), the false alarms of intelligent
detection based on target type (such as tripwire, intrusion) are largely
reduced.
Protection (IP67, IK10, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has
dust-proof function, and the enclosure can works normal after soaking
in 1 m deep water for 30 minutes.
IK10: The enclosure can stand the punch more than 5 times from a 5 kg
hammer falling from a height of 40 cm (Impact energy is 20J).
Wide voltage: The camera allows ±30% input voltage tolerance (wide
voltage range), and it is widely applied to outdoor environment with
instable voltage.

Panoramic Splicing
Vehicle SituationCrowd DensityPerimeter Protection

| DH-IPC-PFW83242-A180


www.dahuasecurity.com

Technical Specification
Camera
Image Sensor 1/1.8” 8Megapixel progressive CMOS
Max. Resolution
8192 (H) x 3840 (V)
ROM4 GB
RAM8 GB
Scanning SystemProgressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100,000 s
Min. Illumination0.005 @F1.6
S/N Ratio>56 dB
Illumination Distance30 m (98.4 ft) (IR LED)
Illuminator On/Off ControlAuto/Manual
Illuminator Number8 (IR LED)
Pan/Tilt/Rotation Range
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens TypeFixed-focal
Mount TypeM12
Focal Length2.8 mm
Max. ApertureF1.6
Field of ViewHorizontal: 180°; vertical: 90°
Iris TypeFixed
Close Focus Distance1.8 m (5.9 ft)
DORI Distance
DetectObserveRecognizeIdentify
84.0 m
( 275.6 ft)
33.6 m
(110.2 ft)
16.8 m
(55.1 ft)
8.4 m
( 27.6 ft)
Professional, intelligent
Vehicle Situation
Vehicle density; parking upper limit;
vehicle congestion alarm
IVS (Perimeter Protection)Intrusion; tripwire
Crowd Distribution Map
Crowd map, global people counting; people counting in
area
Video
Video Compression
H.265; H.264; H.264H; H.264B; MJPEG (only supported
by the sub stream)
Smart CodecSmart H.264+/Smart H.265+
Video Frame Rate
Main stream: 8192 x 3840 (1–25/30 fps)
Sub stream: 1280 x 600 (1–25/30 fps)
Third stream: 2304 x 1080 (1–25/30 fps)
Stream Capability3 streams
Resolution
Splicing:
32M (8192 x 3840); 7680 x 3600; 7168 x 3360; 6720 x
3152; 5760 x 2700; 4800 x 2252; 4096 x 1920; 2880 x
1360; 2304 x 1080; 1280 x 600; 2408 x 960; 1520 x 712
Non-splicing:
4320 x 7680; 2880 x 5120; 2160 x 3840; 720 x 1280;
1080 x 1920

Bit Rate ControlCBR/VBR
Video Bit Rate
H.264: 96 kbps–65536 kbps
H.265: 38 kbps–55612 kbps
Day/NightAuto (ICR)/Color/B/W
BLCYes
HLCYes
WDRDWDR
White Balance
Auto/natural/street lamp/outdoor/manual/regional
custom
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetectionOFF/ON (4 areas, rectangular)
Region of Interest (RoI)Yes (4 areas)
Smart IlluminationYes
Privacy Masking4 areas
Audio
Audio CompressionG.711A; G.711Mu; G.726; AAC; G.723
Alarm Event
Alarm Event
No SD card; SD card full; SD card error; service life
warning; network disconnection; IP conflict; illegal
access; voltage detection; safety exception; motion
detection; video tampering; scene changing; Input
Abnormal detection; intensity change detection; external
alarm; tripwire; intrusion; crowd density detection; traffic
congestion; maximum vehicle
Network
NetworkRJ-45 (10/100/1000 Base-T)
SDK and APIYes
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP;
RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS;
UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE;
802.1x; SNMP
Interoperability
ONVIF (Profile S/Profile G/Profile T); CGI; Milestone;
Genetec; RTMP
User/Host20
StorageFTP; SFTP; Micro SD card (support max. 256 G); NAS
Browser IE7; IE11
Management SoftwareSmart PSS; DSS
Certification
Certifications
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Port
RS-4851 (baud rate range: 1200 bps–115200 bps)
Audio Input1 channel (RCA port)
Audio Output1 channel (RCA port)
| DH-IPC-PFW83242-A180


Alarm Input2 channels in: 5mA 3V–5V DC
Alarm Output2 channels out: 1,000mA 30V DC/500mA 50V DC
Power
Power Supply12V DC
Power Consumption
Basic power consumption: 13.6W (12V DC)
Max. power consumption (Intelligent functions enabled +
IR full intensity + WDR ): 24.3W (12V DC)
Environment
Operating Temperature–40°C to +60°C (–40°F to +140°F)
Operating Humidity≤95%
Storage Temperature–40°C to +60°C (–40°F to +140°F)
Protection GradeIP67; IK10
Structure
CasingMetal
Dimensions
297.0 mm x 169.0 mm x 120.0 mm
(11.7" x 6.7" x 4.7") (L x W x H)
Net Weight3.16 kg (7.0 lb)
Gross Weight4.06 kg (9.0 lb)

Ordering Information
TypePart NumberDescription
32M
Camera
DH-IPC-PFW83242P-A180-E4
4x8MP WizMind Multi-Sensor
Panoramic Bullet Network Camera
DH-IPC-PFW83242N-A180-E4
4x8MP WizMind Multi-Sensor
Panoramic Bullet Network Camera
IPC-PFW83242P-A180-E4
4x8MP WizMind Multi-Sensor
Panoramic Bullet Network Camera
IPC-PFW83242N-A180-E4
4x8MP WizMind Multi-Sensor
Panoramic Bullet Network Camera
Accessories
(Optional)
PFA120-SGJunction Box
PFA150-SGPole Mount

www.dahuasecurity.com

Dimensions (mm[inch])

Rev 001.001© 2020 Dahua . All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.
Accessories
PFA120-SG
Junction Box

PFA150-SG
Pole Mount
Optional
| DH-IPC-PFW83242-A180
