IPC-PFW8800-A180-H-E4-AC24V

Panoramic Series | DH-IPC-PFW8800-A180     System Overview  The multi-sensor camera provides added flexibility for capturing wide  area video surveillance. With four 2MP sensors working in tandem to  create a comprehensive 180-degree overview, the camera can replace  multiple single-sensor cameras providing a higher return on investment.  The multi-sensor camera features contrast, backlight compensation,  white balance, and resolution control to create a crystal-clear image  even in the most challenging lighting conditions.     Functions  True Day/Night  A day/night mechanical IR cut filter makes this camera ideal for  applications with fluctuating lighting conditions, delivering color images  during the day and automatically switching to monochrome as the scene  darkens.  Starlight Technology  Featured with Dahua Starlight Technology, the camera is ideal for  applications with challenging light conditions. Its low light performance  delivers usable video with minimal ambient light. Even in extreme low  light conditions, Starlight Technology is capable of delivering color  images in nearly complete ...

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

Panoramic Series | DH-IPC-PFW8800-A180

System Overview
The multi-sensor camera provides added flexibility for capturing wide
area video surveillance. With four 2MP sensors working in tandem to
create a comprehensive 180-degree overview, the camera can replace
multiple single-sensor cameras providing a higher return on investment.
The multi-sensor camera features contrast, backlight compensation,
white balance, and resolution control to create a crystal-clear image
even in the most challenging lighting conditions.

Functions
True Day/Night
A day/night mechanical IR cut filter makes this camera ideal for
applications with fluctuating lighting conditions, delivering color images
during the day and automatically switching to monochrome as the scene
darkens.
Starlight Technology
Featured with Dahua Starlight Technology, the camera is ideal for
applications with challenging light conditions. Its low light performance
delivers usable video with minimal ambient light. Even in extreme low
light conditions, Starlight Technology is capable of delivering color
images in nearly complete darkness.
Intelligent Video System (IVS)
Dahua camera is equipped with a built-in intelligent analytic algorithm
based on video, which can realize intelligent functions like Tripwire,
Intrusion, Abandoned, Missing and so on, to quickly and accurately
respond to monitoring events in specific area. It can enhance monitoring
efficiency. In addition, the camera supports intelligent tamper detection,
which is to generate warning message via detecting dramatic scene
change and to guarantee effective video surveillance.
Smart IR
With IR illumination, detailed images can be captured in low light or
total darkness. The camera's Smart IR technology adjusts the intensity of
camera's infrared LEDs to compensate the distance of an object. Smart
IR technology prevents IR LEDs from whitening out images as they come
closer to the camera. The camera's integrated infrared illumination
provides high performance in extreme low-light environments up to 30m
(98ft).
Smart H.265+
Deliver high quality video without straining the network, Smart H.265+
is the optimized implementation of H.265. The Smart H.265+ encoding
technology includes a scene adaptive encoding strategy, dynamic GOP,
dynamic ROI, flexible multi-frame reference structure and intelligent
noise reduction, providing saving of up to 70% of bandwidth and storage
when compared with standard H.265.
Protection (IP67, IK10, wide voltage)
Supporting ±25% input voltage tolerance, this camera suits even the
most unstable conditions for outdoor applications. Its 6KV lightning
rating provides effective protection for both the camera and its structure
against lightning.IP67 is supported by the camera, which makes it
suitable for both indoor and outdoor environments. IK10 compliance
enables the camera to sustain the equivalent of 55 kg (120lbs) force.
Environmental
Standard Dahua camera can function from -30°C to +60°C(-22 °F to +140
°F) with 95% humility, meanwhile some models support heater module
optional which allows the camera to function from -40°Cto +60°C (-40 °F
to +140 °F).With a temperature range of -40 °C to +60 °C, the camera is
designed for extreme temperature environments.
www.dahuasecurity.com
· Four 1/2.8” 2Megapixel progressive scan STARVIS™ CMOS
· H.265/H.264 triple-stream encoding
· Max 25fps@4096x1800
· Support 180-degree panoramic view
· Day/Night(ICR), 3DNR, AWB, AGC, BLC
· Smart detection
· Intelligent Function
· Max. IR LEDs length 30m
. Micro SD memory, IP67, IK10,PoE+

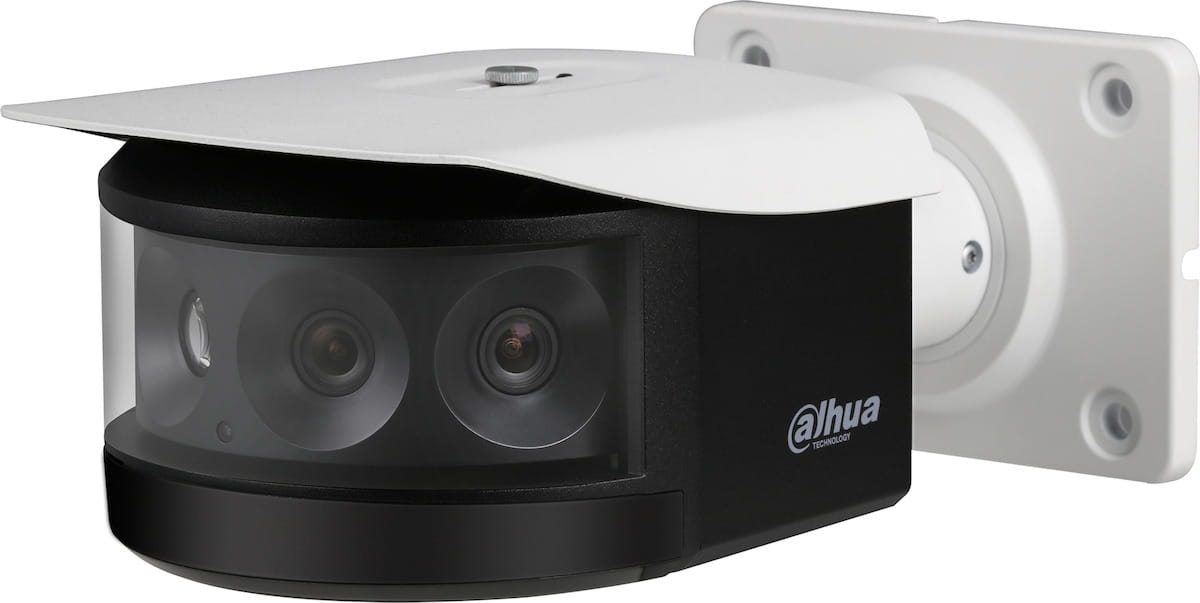

DH-IPC-PFW8800-A180
4x2MP Multi-Sensor Panoramic Network IR Bullet Camera

Panoramic

180°
- 40°C

Vandal-proof

ICR D/N

IP6 7
H.265+

www.dahuasecurity.com
Panoramic Series | DH-IPC-PFW8800-A180

Technical Specification
Camera
Image SensorFour 1/2.8” 2Megapixel progressive scan CMOS
Effective Pixels
4096(H)x1800(V)
RAM/ROM
1024MB/128MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual, 1/3~1/100000s
Minimum Illumination
0.007Lux/F2.0( Color,1/3s,30IRE)
0.05Lux/F2.0( Color,1/30s,30IRE)
0Lux/F2.0(IR on)
S/N Ratio
More than 50dB
IR Distance
Distance up to 30m(98ft)
IR On/Off Control
Auto/ Manual
IR LEDs
8
Lens
Lens TypeFixed
Mount TypeBoard-in
Focal Length3.0mm
Max. ApertureF2.0
Angle of ViewH: 180˚, V:80˚
Optical ZoomN/A
Focus ControlFixed
Close Focus DistanceN/A
DORI Distance
DetectObserveRecognizeIdentify
41m(135ft)16m(53ft)8m(26ft)4m(13ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation RangePan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚
Intelligence
IVSTripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent FunctionsHeat Map, E-PTZ
Video
CompressionH.265+/H.265/H.264+/H.264
Streaming Capability3 Streams
Resolution
4096x1800/3840x1680/2880x1264/
/1920x832/1280x560/1024X452
Frame Rate
Main Stream: 4096x1800 (1~25fps)
Sub Stream: 1024X452 (1 ~ 25/30fps)
Third Stream: 1920x832 (1 ~ 25/30fps)
Bit Rate ControlCBR/VBR
Bit Rate
H.265: 9Kbps~ 9472Kbps
H.264: 24Kbps~ 15616Kbps


Day/NightAuto(ICR) / Color / B/W
BLC ModeBLC / HLC / DWDR
White BalanceAuto/Natural/Street Lamp/Outdoor/Manual
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetetionOff / On (4 Zone, Rectangle)
Region of InterestOff / On (4 Zone)
Electronic Image
Stabilization(EIS)
N/A
Smart IRSupport
DefogN/A
Digital Zoom16x
FlipN/A
MirrorN/A
Privacy MaskingOff / On (4 Area, Rectangle)
Audio
CompressionG.711a/G.711Mu/AAC/ G.726
Network
EthernetRJ-45 (100/1000Base-T)
Protocol
HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHC
P;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;Bonjour
;802.1x;Multicast;ICMP;IGMP;SNMP
InteroperabilityONVIF, PSIA, CGI
Streaming MethodUnicast / Multicast
Max. User Access10 Users/20 Users
Edge Storage
NAS
Local PC for instant recording
Mirco SD card 128GB
Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS, Easy4ip
Smart PhoneIOS, Android
Certifications
Certifications
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
Interface
Video Interface1 Port(For adjustment only)
Audio Interface1/1 channel In/Out
RS485N/A
Alarm
2 channel In: 5mA 5VDC
2 channel Out: 1A 30VDC / 0.5A 50VAC
Electrical
Power SupplyAC24V, PoE+ (802.3at)(Class 4)
Power Consumption<25.5W

Panoramic Series | DH-IPC-PFW8800-A180

Ordering Information
TypePart NumberDescription
4x2MP
camera
DH-IPC-
PFW8800P-A180
4x2MP Multi-Sensor Panoramic
Network IR Bullet Camera, PAL
DH-IPC-
PFW8800N-A180
4x2MP Multi-Sensor Panoramic
Network IR Bullet Camera,NTSC
IPC-
PFW8800P-A180
4x2MP Multi-Sensor Panoramic
Network IR Bullet Camera, PAL
IPC-
PFW8800N-A180
4x2MP Multi-Sensor Panoramic
Network IR Bullet Camera,NTSC
Accessories
(optional)
PFA120Juntion Box
PFA150Pole mount
PFA151Corner mount
www.dahuasecurity.com

Environmental
Operating Conditions-40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH
Strorage Conditions-40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH
Ingress Protection
IP67
Vandal ResistanceIK10
Construction
CasingMetal
Dimensions
298.3mmx172.5mmx120.5mm
(11.74”x6.79”x4.74”)
Net Weight2.7kg(5.95lb)
Gross Weight3.61kg(7.96lb)
Accessories
Optional:

PF A120
x
PF A150
Po le moun t
PF A151
Corner moun t
Dimensions (mm/inch)

Wa ll Moun t
Corner Moun t

Po le Moun t

PF A120 + PF A150

PF A120+ PF A151

PF A120

Rev 001.001© 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice.
