IPC-PFW8840-A180

Verfügbarkeit: 0
Preis: 1.640,65 € 1640.65
bez 23.00% VAT i kosztów dostawy
quantity szt.

product unavailable

zur Wunschliste hinzufügen
Anbieter: DAHUA
Produkt-Code/SKU: IPC-PFW8840-A180

Beschreibung

www.dahuasecurity.com  DH-IPC-PFW8840-A180  4x2MP WizMind Multi-Sensor Panoramic Network IR Bullet Camera    · Four 2MP 1/2.8" CMOS image sensor, low illuminance, high image   definition  · Outputs max. 8MP (4096 x 1800) @30 fps  · H.265 codec, high compression rate, ultra-low bit rate  · Built-in IR LED, max. IR distance: 30 m  · ROI, SMART H.264+/H.265+, flexible coding, applicable to various   bandwidth and storage environments  · DWDR, 3D NR, HLC, BLC, digital watermarking  · Intelligent functions: Crowd distribution map, Vehicle Density situation  · Abnormality detection: Motion detection, video tampering, scene   changing, audio detection, no SD card, SD card full, SD card error,   network disconnection, IP conflict, illegal access, and voltage detection  · Alarm: 2 in, 2 out; audio: 1 in, 1 out; 485; BNC; supports max. 256 G   SD card  · 12V DC/24V AC/PoE power supply; easy for installation  · Supports object tracking  · IP67, IK10 protection    Series Overview  The splicing camera supports a 180° panoramic view and 4-channel  hardware splicing to realize HD panoramic surveillance. The camera  supports crowd situation analysis, vehicle situation analysis, and  perimeter protection....

Garantie: 36 mon.

Datentabelle PDF


Textinhalt des PDF-Datenblattes:

www.dahuasecurity.com
DH-IPC-PFW8840-A180

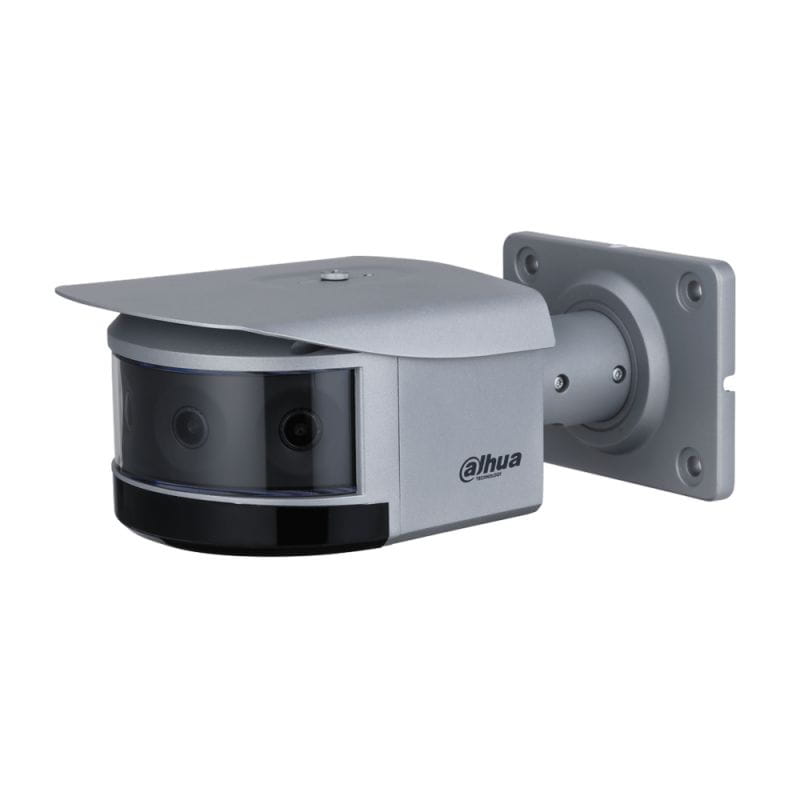

4x2MP WizMind Multi-Sensor Panoramic Network IR Bullet Camera

· Four 2MP 1/2.8" CMOS image sensor, low illuminance, high image
definition
· Outputs max. 8MP (4096 x 1800) @30 fps
· H.265 codec, high compression rate, ultra-low bit rate
· Built-in IR LED, max. IR distance: 30 m
· ROI, SMART H.264+/H.265+, flexible coding, applicable to various
bandwidth and storage environments
· DWDR, 3D NR, HLC, BLC, digital watermarking
· Intelligent functions: Crowd distribution map, Vehicle Density situation
· Abnormality detection: Motion detection, video tampering, scene
changing, audio detection, no SD card, SD card full, SD card error,
network disconnection, IP conflict, illegal access, and voltage detection
· Alarm: 2 in, 2 out; audio: 1 in, 1 out; 485; BNC; supports max. 256 G
SD card
· 12V DC/24V AC/PoE power supply; easy for installation
· Supports object tracking
· IP67, IK10 protection

Series Overview
The splicing camera supports a 180° panoramic view and 4-channel
hardware splicing to realize HD panoramic surveillance. The camera
supports crowd situation analysis, vehicle situation analysis, and
perimeter protection. It is widely applied in various scenes such as
squares, airports, safe city, and traffic.
Functions
Panoramic Splicing
With advanced splicing algorithm, Dahua Panoramic Splicing technology
deletes overlapped area and splices multiple images to be a complete
panorama. The field of view of the spliced image can be up to 360°,
which largely improves surveillance efficiency and user experience.
Generally, after splicing, the field of view of four-sensor camera can be
180°, and the field of view of eight-sensor camera can be 360°.
Crowd Density
With deep learning algorithm, Dahua Crowd Density technology can
detect the crowd density on the image, and display it on heat map;
it can detect people quantity and density in selected area and set
threshold. When the number or density is larger or smaller than the
threshold, it triggers linkage.
Vehicle Density
With deep learning algorithm, Dahua Vehicle Density technology
analyses the vehicle situation in the image, such as vehicle number in
selected area. You can set threshold, and when the number is larger or
smaller than the threshold, it triggers linkage.
IVS
With advanced video algorithm, Dahua IVS technology supports
intelligent functions, such as tripwire and intrusion.
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart
encoding technology realizes the higher encoding efficiency than H.265
and H.264, provides high-quality video, and reduces the cost of storage
and transmission.
Protection (IP67, IK10, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has
dust-proof function, and the enclosure can works normal after soaking
in 1 m deep water for 30 minutes.
IK10: The enclosure can stand the punch more than 5 times from a 5 kg
hammer falling from a height of 40 cm (Impact energy is 20J).
Wide voltage: The camera allows ±30% input voltage tolerance (wide
voltage range), and it is widely applied to outdoor environment with
instable voltage.

| DH-IPC-PFW8840-A180

P anoramic Splicin g
Ve hicle Densit y
IV S
Cr ow d Density

Launched by Dahua Technology, Dahua WizMind is a full portfolio of
solutions composed of project-oriented products including IPC, NVR, PTZ,
XVR, Thermal and software platform which adopts industry-leading
deep learning algorithms. Focusing on customer’s requirements,
WizMind provides precise, reliable and comprehensive AI solutions for
verticals.


www.dahuasecurity.com

Technical Specification
Camera
Image Sensor1/2.8”4 x 2Megapixel progressive CMOS
Max. Resolution
4096 (H) x 1800 (V)
ROM4 GB
RAM2 GB
Scanning SystemProgressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100,000 s
Min. Illumination0.002 Lux @F1.6
S/N Ratio>56dB
Illumination Distance30 m (98.42 ft) (IR LED)
Illuminator On/Off ControlAuto/Manual
Illuminator Number8 (IR LED)
Pan/Tilt/Rotation Range
Pan: 0°–355°
Tilt: 0°–90°
Rotation:0°–360°
Lens
Lens TypeFixed-focal
Mount TypeM12
Focal Length2.8 mm
Max. ApertureF1.6
Field of ViewHorizontal: 180°; Vertical: 90°
Iris TypeFixed
Close Focus Distance0.6 m (2.0 ft)
DORI Distance
DetectObserveRecognizeIdentify
38.6 m
(126.6 ft)
15.4 m
(50.5 ft)
7.7m
(25.3 ft)
3.9 m
(12.8 ft)
Professional, intelligent
Vehicle Density
Vehicle density; parking upper limit; vehicle congestion
alarm
Crowd Distribution Map
Crowd map, global people counting; people counting in
area
General Intelligence
IVSTripwire; intrusion
Video
Video Compression
H.265; H.264; H.264H; H.264B; MJPEG (only supported
by the sub stream)
Smart CodecSmart H.265+/ Smart H.264+
Video Frame Rate
Main stream: 4096 x 1800 (1–25/30 fps)
Sub stream: 1024 x 452 (1–25/30 fps)
Third stream: 1920 x 832 (1–25/30 fps)
Stream Capability3 streams
Resolution
4096 x 1800; 3840 x 1680; 2880 x 1264; 1024 x 452;
1920 x 832; 1280 x 560
Bit Rate ControlCBR/VBR

Video Bit Rate
H.264: 9 kbps–17664 kbps
H.265: 9 kbps–17664 kbps
Day/NightAuto (ICR)/Color/B/W
BLCYes
HLCYes
WDRDWDR
Scene Self-adaptation Yes
White Balance
Auto/natural/street lamp/outdoor/manual/regional
custom
Gain ControlAuto/Manual
Noise Reduction3D NR
Motion DetectionOFF/ON (4 areas, rectangular)
Region of Interest (RoI)Yes (4 areas)
Smart IlluminationYes
DefogYes
Privacy Masking4 areas
Audio
Audio CompressionG.711A; G.711Mu; G.726; AAC; G.723
Alarm Event
Alarm Event
No SD card; SD card full; SD card error; network
disconnection; IP conflict; illegal access; motion
detection; video tampering; tripwire; intrusion; scene
changing; audio detection; intensity change; voltage
detection; external alarm; safety exception; crowd
distribution map; vehicle congestion; parking upper limit
Network
NetworkRJ-45 (10/100/1000 Base-T)
SDK and APIYes
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP;
RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS;
UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE;
802.1x; SNMP
Interoperability
ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone;
Genetec
User/Host20 (Total bandwidth: 80 M)
Storage
Dahua Cloud (only supported by Dahua vesion); FTP;
SFTP; Micro SD card (support max. 256 G); NAS
Browser
IE: IE9 and later
Chrome: 50 and later
Firefox: 48 and later
Management SoftwareSmart PSS; DSS; DMSS
Mobile PhoneIOS; Android
Certification
Certifications
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Port
RS-4851 (baud rate range: 1200 bps–115200 bps)

| DH-IPC-PFW8840-A180

Audio Input1 channel (RCA port)
Audio Output1 channel (RCA port)
Alarm Input2 channels in: 5mA 3V–5V DC
Alarm Output2 channels out: 1,000mA 30V DC/500mA 50V DC
Power
Power Supply12V DC/24V AC/PoE+ (802.3at)
Power Consumption<16.2W
Environment
Operating Conditions -40°C to +60°C/Less than 95% RH
Storage Temperature-40°C to +60°C (–40°F to +140°F)
Protection GradeIP67; IK10
Construction
CasingMetal + plastic
Dimensions
297 mm x 169mm x120mm (11.69" x 6.65"x 4.72") (L
x W x H)
Net Weight2.86 kg (6.31 lb)
Gross Weight3.35 kg (7.39 lb)

Ordering Information
TypePart NumberDescription
8MP
Camera
DH-IPC-PFW8840P-A180
8MP WizMind Multi-Sensor
Panoramic Bullet Network Camera
IPC-PFW8840P-A180
DH-IPC-PFW8840N-A180
IPC-PFW8840N-A180
Accessories
(Optional)
PFA120-SGJunction Box
PFA150-SGPole Mount

www.dahuasecurity.com

Dimensions (mm[inch])

Rev 001.001© 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.
Accessories
PFA120-SG
Wall Mount
PFA150-SG
Pole Mount
Optional

| DH-IPC-PFW8840-A180
