Parking Detector | DHI-ITC314-PH2A Series

www.dahuasecurity.com
• 3 MP 1/2.8”inch CMOS, 0.01lux min illumination.
• Simultaneously detect up to 3 spaces.
• Indicator supports at least 7 colors.
• Interactive design with parking space indicator.
• In-ceiling installation.
• Supports dual stream output of JPEG and H.264, 1~20fps
adjustable.
• Supports WDR.
• Supports PvE (Power via Ethernet).

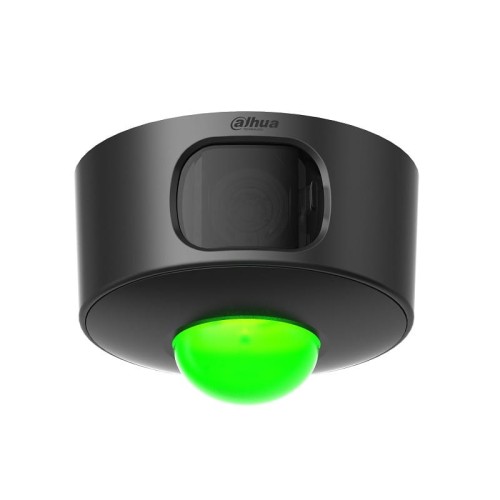

DHI-ITC314-PH2A Series
3MP Single-Lens Parking Space Detector

Technical Specification
Camera
Model DHI-ITC314-PH2A-F2DHI-ITC314-PH2A-F3
Focal Length2.8mm3.6mm
Image Sensor1/2.8 inch 3MP CMOS
Electronic Shutter SpeedAuto/manual, 1/3~1/10000s
Minimum illumination0.01Lux
WDR mode
Support
White Balance
Auto
Gain Control
Auto
Day/Night
Electronic color to B/W
Interface
Ethernet2 x10/100M self-adaptive Ethernet port
RS4851 xRS485
Lens PortM12(2.8mm lens)/M12 (3.6mm lens)

Function
ANPRSupport
Vehicle Parking DetectionSupport
OSD info overlaySupport
Parking Indicator7 colors, red /yellow /blue /green /cyan /white /pink
Maximum Detection Spaces3
Remote ControlVia WEB remote control
WatermarkWatermark and parity
Certifications
Certification
FCC: 47 CFR Part 15, Subpart B
CE: meet the standard

General
Power SupplyDC 12~48V Support PvE power supply
Power Consumption6W
DimensionØ120 mmx100mm
Weight 500g
Overview
DHI-ITC314-PH2A series Parking space detector is used in the indoor
parking area. The parking detector can accurately indicate up to 3
parking spaces status and recognize the plate number of vehicle at the
same time. Meanwhile, a 7 colors indicator can be used for guiding
vehicles to find the available parking spaces.

Ingress ProtectionIP50
Working
Temperature&humidity
-20° C ~ +50° C /10%~90% Humidity

Image compression standardJPEG
Image Resolution2048 x1536@20fps
Video

Video Compression StandardH.264
Multi-streaming2 streams
Video Bit StreamEach channel supports 1.2Mbps~6Mbps
Video Frame StramEach channel supports 1~20fps
Video Resolution
Main stream: 2048x1536
Sub stream: 704x576

Parking Detector | DHI-ITC314-PH2A Series
www.dahuasecurity.com

Dimensions (mm/inch)
Rev 001.001 © 2016 Dahua. All rights reserved. Design and specifications are subject to change without notice.

Ordering Information
Model Description
Parking Space
Detector
DHI-ITC314-PH2A-F2
2.8mm, 3 Parking Space Detector
ITC314-PH2A-F2
DHI-ITC-314-PH2A-F3
3.6mm, 3 Parking Space Detector
ITC-314-PH2A-F3
