LM27-F211

Blade Series | DHI-LM27-F211    www.dahuasecurity.com  Features：  · Industrial level LCD panel, suitable for continuous 24/7  operation  · Physical resolution of 1920x1080  · High fidelity digital processing for a brilliant and vivid video  · Ultra-narrow bezel design with 178°/178° wide viewing  angle make your vision more open  · Built-in speakers  DHI-LM27-F211  27'' FHD LED Monitor    Technical Specification  Model  ModelDHI-LM27-F211  Display  Screen Size27"  Aspect Ratio16:9  Resolution 1920x1080 (FHD)  Backlight LED  Brightness/Luminance300 cd/㎡  Contrast 1000:1  Display Colors16.7M(8bit)  Viewing Angle(H/V)178°(H)/178°(V)  Response Time14ms  Refresh Rate60Hz  Signals  InputVGA(D-Sub)x1, HDMIx1, Audiox1  OutputSpeaker2Wx2  General  Power SupplyAC110~240V (+/-10%), 50/60 Hz      Consumption (Standard) 35W  Consumption (Standby) ≤0.4W  TypeInternal  Net Weight 5.4kg (11.9lb)  Gross Weight7.0kg (15.4lb)  Bezel Width2.2mm (U/L/R), 18.1mm (B)  Wall Mount100x100mm (3.9"x3.9")  Dimension without standard  (WxHxD)  611.9x366.6x49.0mm (24.1"x14.4"x1.9")  Package(WxHxD)704x460x140mm (27.7"x18.1"x5.5")  Work Environment  Temperature0℃~...

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

Blade Series | DHI-LM27-F211

www.dahuasecurity.com
Features：
· Industrial level LCD panel, suitable for continuous 24/7
operation
· Physical resolution of 1920x1080
· High fidelity digital processing for a brilliant and vivid video
· Ultra-narrow bezel design with 178°/178° wide viewing
angle make your vision more open
· Built-in speakers
DHI-LM27-F211

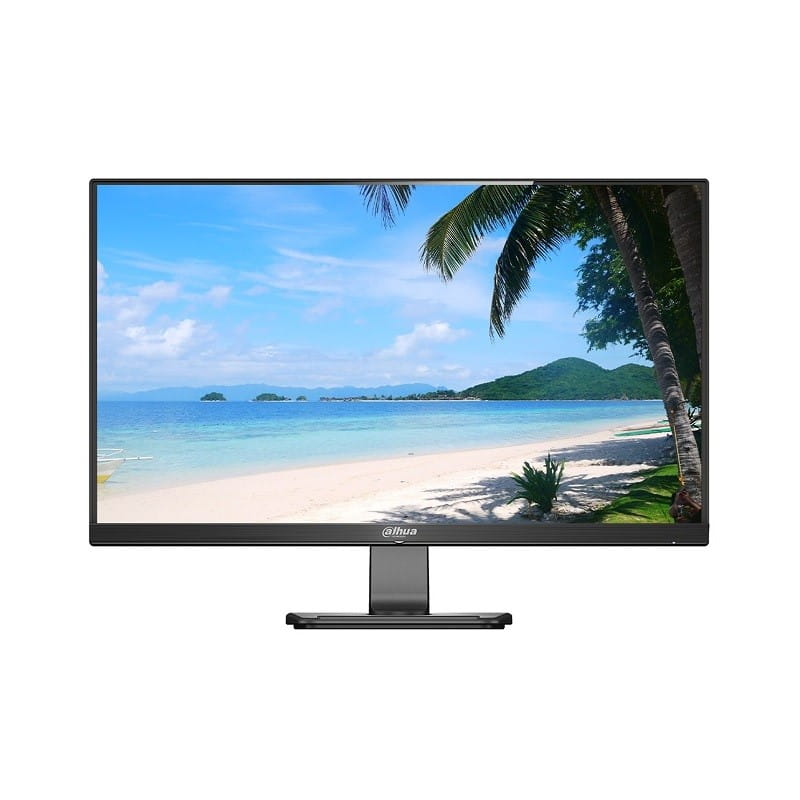

27'' FHD LED Monitor

Technical Specification
Model
ModelDHI-LM27-F211
Display
Screen Size27"
Aspect Ratio16:9
Resolution 1920x1080 (FHD)
Backlight LED
Brightness/Luminance300 cd/㎡
Contrast 1000:1
Display Colors16.7M(8bit)
Viewing Angle(H/V)178°(H)/178°(V)
Response Time14ms
Refresh Rate60Hz
Signals
InputVGA(D-Sub)x1, HDMIx1, Audiox1
OutputSpeaker2Wx2
General
Power SupplyAC110~240V (+/-10%), 50/60 Hz


Consumption (Standard) 35W
Consumption (Standby) ≤0.4W
TypeInternal
Net Weight 5.4kg (11.9lb)
Gross Weight7.0kg (15.4lb)
Bezel Width2.2mm (U/L/R), 18.1mm (B)
Wall Mount100x100mm (3.9"x3.9")
Dimension without standard
(WxHxD)
611.9x366.6x49.0mm (24.1"x14.4"x1.9")
Package(WxHxD)704x460x140mm (27.7"x18.1"x5.5")
Work Environment
Temperature0℃~40℃ (32°F~104°F)
Humidity10%~85%
Accessory
StandardVGA cable, power cable, pedestal
OptionalHanging bracket
Certifications
CertificationsCE/FCC

24h* 7

1080p


Blade Series | DHI-LM27-F211

Dimensions(mm)
www.dahuasecurity.com
