LR1002 Product Overview LR1002 is designed to work as a type of converter from RJ45 to BNC port, which supports long range power supply transmission via coaxial cable. It provides one BNC coaxial port and one RJ45 port. The product is equipped with two transmission modes which are 100Mbps and 10Mbps. www.dahuasecurity.com Features · Supports IEEE802.3, IEEE802.3u standards · Port: 1*RJ45 10/100Mbps, 1*BNC · Supports RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps · Supports MDI/MDIX self-adaption · Supports long range power supply transmission via coaxial cable LR1002 EoC Passive Converter Technical Specification ModelLR1002 Function Port 1*10/100 Mbps Base-TX 1*BNC Power Consumption<1W Transmission Bandwidth RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps PoE Protocol - (Based on the power input from the ePoE switch) Network StandardIEEE802.3, IEEE802.3u Lightning Protection Common Mode 6KV Differential Mode 2KV Operating Temperature-40°C-60°C Operating Humidity0%~95% Weight28.3g Dimension (WxDxH)56mmx27mmx21mm Cable Length (m) Communication Bandwidth (Mbps) PoE Max Load Capacity (...
Garantie: 36 mon.
Datentabelle
Textinhalt des PDF-Datenblattes:

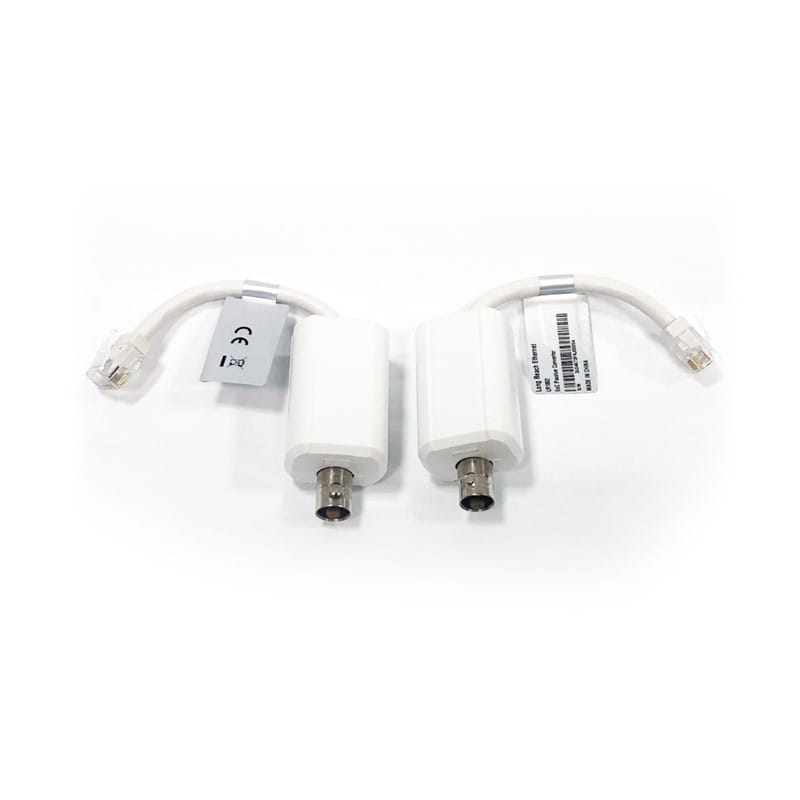

LR1002
Product Overview
LR1002 is designed to work as a type of converter from RJ45 to BNC
port, which supports long range power supply transmission via coaxial
cable. It provides one BNC coaxial port and one RJ45 port. The product
is equipped with two transmission modes which are 100Mbps and
10Mbps.
www.dahuasecurity.com
Features
· Supports IEEE802.3, IEEE802.3u standards
· Port: 1*RJ45 10/100Mbps, 1*BNC
· Supports RG59 coaxial cable: 400m/100Mbps,
1000m/10Mbps
· Supports MDI/MDIX self-adaption
· Supports long range power supply transmission via coaxial
cable
LR1002
EoC Passive Converter
Technical Specification
ModelLR1002
Function Port
1*10/100 Mbps Base-TX
1*BNC
Power Consumption<1W
Transmission Bandwidth
RG59 coaxial cable:
400m/100Mbps, 1000m/10Mbps
PoE Protocol
-
(Based on the power input from the ePoE switch)
Network StandardIEEE802.3, IEEE802.3u
Lightning Protection
Common Mode 6KV
Differential Mode 2KV
Operating Temperature-40°C-60°C
Operating Humidity0%~95%
Weight28.3g
Dimension (WxDxH)56mmx27mmx21mm
Cable Length (m)
Communication
Bandwidth (Mbps)
PoE Max Load
Capacity (W)
Hi-PoE Max
Load Capacity
(W)
Network
Operating
Mode
10010025.550IEEE/E100
20010025.530E100
3001001818E100
4001001515E100
500101212E10
8001066E10
10001055E10
ePoE switch power supply voltage is 48V.
The cable is RG59 coaxial cable, 100m DC impedance is no more than 5Ω.
10010025.552IEEE/E100
20010025.548E100
30010025.530E100
4001002023E100
500101616E10
800101010E10
10001088E10
ePoE switch power supply voltage is 53V.
The cable is RG59 coaxial cable, 100m DC impedance is no more than 5Ω.
Coaxial Cable
ePoE Switch
LR1002
ePoE IPC
LR1002
Diagram
