NKB1000

NKB1000/KBD1000/KB1000    www.dahuasecurity.com  Features：  Keyboard to Control  · Dahua High Speed Dome (all models)  · Dahua Standalone DVR (KBD1000 & NKB1000 only)  · Dahua Network High Speed Dome (NKB1000 only)  · Network Video Server (NKB1000 only)  Connection  · NKB1000: RS485, RS422, USB, RS232 & Network  · KBD1000: RS485, RS422, USB & RS232  · KB1000 : RS485, RS422 & USB  Functions  · Three Dimensional Joystick Control of PTZ Functions  · Preset Position, Auto Scan, Auto Pan, Auto Tour & Pattern  Auxiliary Functions  · On-Screen Menu & User Operation Procedure Tips  · Connect to SmartPSS via USB (NKB1000 only)  NKB1000/KBD1000/KB1000  Network Keyboard & Control Keyboard & Dome keyboard    Working Temperature-10℃~+55℃  Working Humidity10% ~ 90%  Atmosphere Pressure86kpa~106kpa  Dimension  330mmx160(140)mmx37.5(21)mm (WxDxH)(height:  100mm including joystick)  Weight2.5kg (Including package)    Technical Specification  Model  ModelNKB1000KBD1000KB1000  General  Keyboard Key panel Electromechanical  Joystick  3-axis, vector-solving, with twisting, return to-center head  Keyboard ConnectorRJ-45, RS232,  RS485, RS422, USB  RS232, RS485,  RS422  RS48...

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

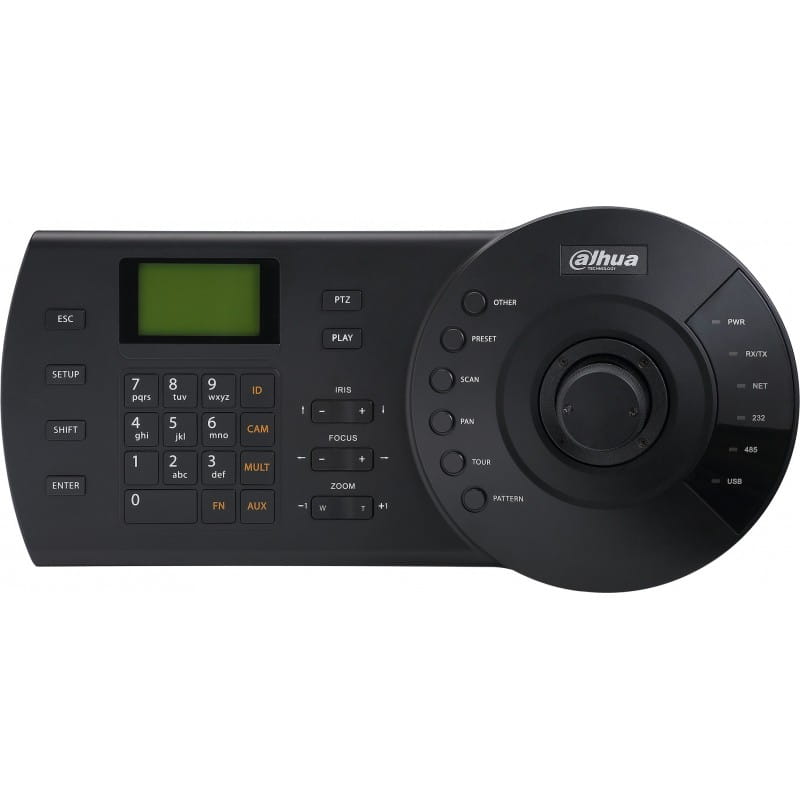

NKB1000/KBD1000/KB1000

www.dahuasecurity.com
Features：
Keyboard to Control
· Dahua High Speed Dome (all models)
· Dahua Standalone DVR (KBD1000 & NKB1000 only)
· Dahua Network High Speed Dome (NKB1000 only)
· Network Video Server (NKB1000 only)
Connection
· NKB1000: RS485, RS422, USB, RS232 & Network
· KBD1000: RS485, RS422, USB & RS232
· KB1000 : RS485, RS422 & USB
Functions
· Three Dimensional Joystick Control of PTZ Functions
· Preset Position, Auto Scan, Auto Pan, Auto Tour & Pattern
Auxiliary Functions
· On-Screen Menu & User Operation Procedure Tips
· Connect to SmartPSS via USB (NKB1000 only)
NKB1000/KBD1000/KB1000
Network Keyboard & Control Keyboard & Dome keyboard

Working Temperature-10℃~+55℃
Working Humidity10% ~ 90%
Atmosphere Pressure86kpa~106kpa
Dimension
330mmx160(140)mmx37.5(21)mm (WxDxH)(height:
100mm including joystick)
Weight2.5kg (Including package)

Technical Specification
Model
ModelNKB1000KBD1000KB1000
General
Keyboard Key panel Electromechanical
Joystick
3-axis, vector-solving, with twisting, return to-center head
Keyboard ConnectorRJ-45, RS232,
RS485, RS422, USB
RS232, RS485,
RS422
RS485, RS422
Keyboard
Communication
Direct Mode,
Network Mode
Direct ModeDirect Mode
Direct Mode
Interface: RS232/RS485
DVR Protocol: DH2
Dome Protocol: DH-SD/PELCO-D/PELCO-P/PELCO-D1/PELCO-P,
etc
Network Mode
Interface: RJ45
DVR/Network
Dome:
IP Address/Port/
Protocol
N/AN/A
DisplayLCD, 75.2mmx33.85mm
Environmental
Power Supply
Power adapter, input 100V~240V 50Hz/60Hz, output
DC12V/1000mA
Power Consumption5W

3-axis
RJ-45
port

USB
Control
