Keyboard | NKB5000-F

us.dahuasecurity.com
•Controls Dahua High Speed Domes, DVRs, and NVRs
•Full-featured Keypad Extension
•Four-axis Joystick Control for PTZ Functions
•Network, WiFi, R232, and RS485 Connections
•10.1-in. TFT LCD Touch Screen, 1280 x 800 Resolution
•Preset Position, Auto Scan, Auto Pan, Auto Tour, and Pattern Control
•Supports 4K Live View Decoding
•Four (4) HDMI Output Channels
•Supports Snapshot, Video Wall Control, and USB Recording

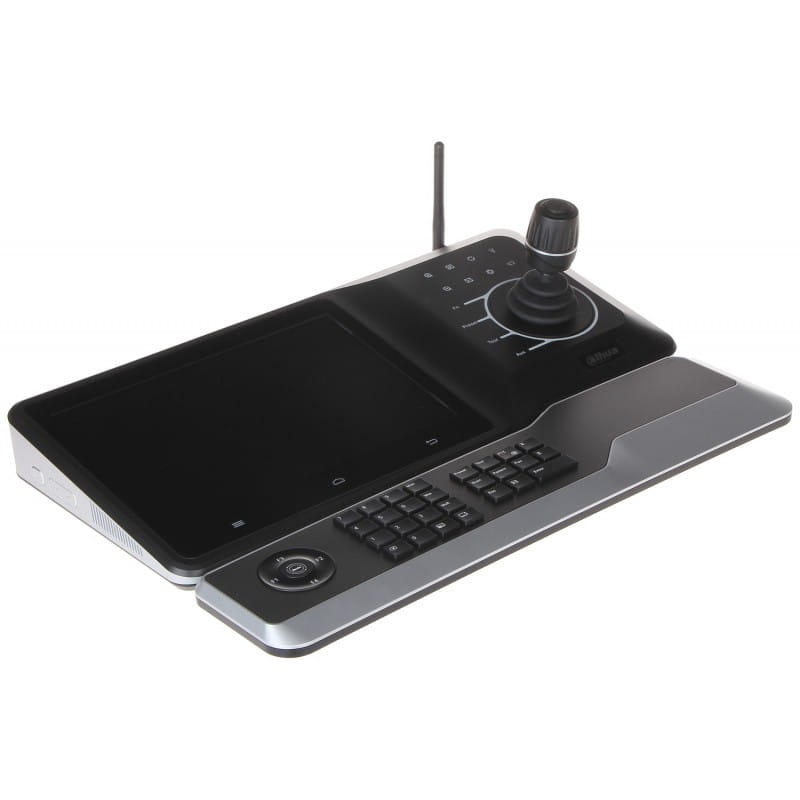

HD Network Control Keyboard

4-axis
Linu x

RJ-45
port

Technical Specification
System
Main ProcessorDual-core Braswell Processor
Operating SystemEmbedded Linux 4.2.0
Display
Video OutputFour (4) HDMI Channels (extension decoding display)
Video Output CompressionH.265, H.264, MPEG, Non-standard
Decoding Capability
• Four (4) Channels of 12 MP at 20 fps
• Four (4) Channels of 8 MP at 30 fps
• Six (6) Channels of 5 MP at 30 fps
• Eight (8) Channels of 4 MP at 30 fps
• Ten (10) Channels of 3 MP at 30 fps
• 16 Channels of 2 MP at 30 fps
Decoding Compression
H.265, Smart H.264+, H.264, H.264H, H.264B, MJPEG,
MPEG4, SVAC
Display Split1/4/9/16
Screen10.1-in. TFT LCD Touch Screen, 1280 x 800
Audio and Alarms
Audio
Input: One (1) Channel, 3.5 mm Jack
Output: One (1) Channel, 3.5 Jack Plus a Built-in Speaker
Supports Bi-directional Talk
Alarms
Input: Four (4) Channels, High-Low Level
Output: Four (4) Total Channels:
Three (3) Relays
One (1) 12 V, 1 A Output


Interface
Network
Two (2) RJ45 (10/100/1000 Mbps) and WiFi
Connectivity
USB
Two (2) USB 3.0 Ports
Two (2) USB 2.0 Ports
WiFiSupports 2.4 GHz Band
RS485One (1) Port for PTZ Control
RS232Two (2) Ports for Debugging and Recorder Control
RS422One (1) Port, Reserved
Electrical
Power Supply12 VDC, 4 A
Power Consumption25 W Maximum, 18 W Standby
Environmental
Operating Temperature-10° C to +55° C (14° F to +131° F), 95% RH
Operating Humidity10% to 95%
Atmospheric Pressure86 kpa to 106 kpa
Construction
Dimensions
Main Keyboard
425.0 mm x 194.0 mm x 59.0 mm
(16.73 in. x 7.64 in. x 2.32 in.)
Keypad Extension
421.0 mm x 105.0 mm x 26.0 mm
(16.57 in. x 4.13 in. x 1.02 in.)
Joystick Height100 mm (3.94 in.)
Net Weight, Keyboard + Keypad3.73 kg (8.22 lb)
Certificates
CE
EN55032:2015, EN61000-3-2:2014,
EN61000-3-3:2013, EN55024:2010+A1:2015,
EN50130-4:2011+A1:2014
Electromagnetic Compatibility
(EMC)
FCC 47 CFR Part 15, Subpart B:2016
SafetyEN60950-1
Rev 001.001© 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.
