Pro series | DHI-NVR5424-24P-4KS2

System Overview
Dahua NVR5000-4KS2 network video recorder delivers excellent
performance and high recording quality that is ideally suitable for IP
video surveillance applications. This professional NVR adopts powerful
processor, providing the capability of 4K resolution processing for
applications where image details are highly required. Additionally, the
NVR can be served as edge storage, central storage or backup storage
with an intuitive shortcut operation menu for remote management and
control.
Due to its easy-to-install design, the NVR is ideal for a wide range of
applications such as public safety, water conservancy, transportation, city
centers, education, and financial institutions.
The NVR is compatible with numerous third-party devices, which make
it the perfect solution for surveillance systems that work independently
of video management system (VMS). It features an open architecture
that supports for multi-user access and is compatible with ONVIF 2.4
protocol, enabling interoperability with 4K cameras.
Functions
Smart H.265+
Smart H.265+ is the optimized implementation of the H.265 codec that
uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI,
flexible multi-frame reference structure and intelligent noise reduction to
deliver high-quality video without straining the network. Smart H.265+
technology reduces bit rate and storage requirements by up to 70%
when compared to standard H.265 video compression.
DMSS
The DMSS app is available on the iOS App Store and Google Play. It
makes surveillance easy and simple, allowing you to remotely access NVR
devices, view live video, receive event push notifications, and search for
recorded videos from an iPhone, iPad, or Android phone at anytime from
virtually anywhere!
Fisheye Dewarping
Fisheye dewarping solves the problem of distortion in the circular
panoramic view. The NVR offers various dewarping modes for different
installations and configurations that enhance the video, in both live or
playback modes. Each dewarping mode offers options to adjust each
scene.
ANPR
Automatic Number Plate Recognition available for convenient entrance/
exit management. Support license plate recognition(working with Dahua
ITC camera), black/white list import/export, add/delete B/W list number,
search result from recorded video.
Point of Sale (POS)
Ideal for grocery and retail stores, the optional POS solution allows the
NVR to receive a POS transaction via corresponding video. This feature
allows merchants to analyze specific transactions via the Fuzzy search
algorithm.
Automatic Network Replenishment (ANR) Technology
Network Video Recorders with the ANR function automatically store
video data on an IP camera SD card when the network is disconnected.
After recovery of the network, the NVR automatically retrieves the video
data stored on the camera.
www.dahuasecurity.com

· Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
· Max 320Mbps Incoming Bandwidth
· Up to 12MP Resolution for Preview and Playback
· Support IPC UPnP, 24 PoE ports

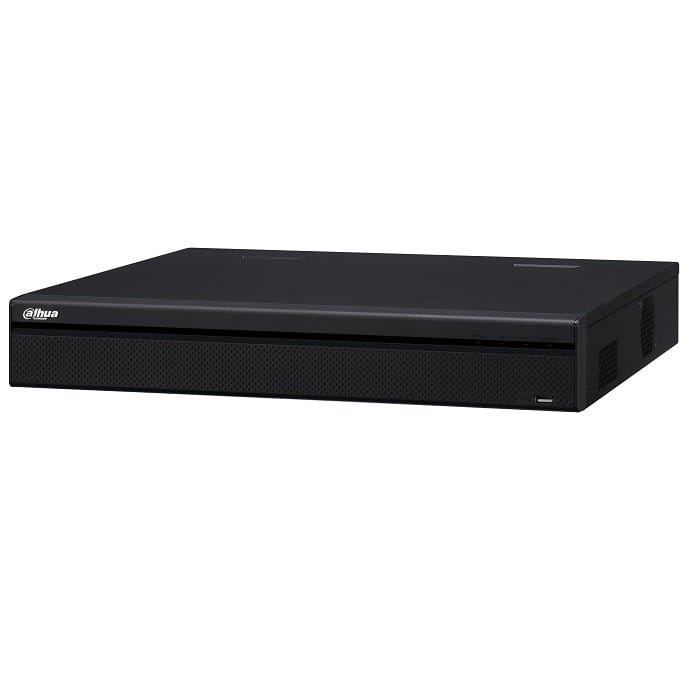

DHI-NVR5424-24P-4KS2
24Channel 1.5U 24PoE 4K&H.265 Pro Network Video Recorder

Pro

Intrusion
People Counting

Missing
Abandon Detection

Heat Map

COUNTING
Face Detection
Tripwire

H.265Series

www.dahuasecurity.com
Pro Series | DHI-NVR5424-24P-4KS2

Technical Specification
System
Main ProcessorQuad-core embedded processor
Operating System
Embedded LINUX
Audio and Video
IP Camera Input24 Channel
Two-way Talk1 Channel Input, 1 Channel Output, RCA
Display
Interface
2 HDMI (up to 3840 x 2160 , Different Source),
1 VGA
Resolution
HDMI1：3840 x 2160 , 1920 x 1080 , 1280 x 1024,
1280 x 720 , 1024 x 768
HDMI2/VGA ：1920 x 1080 , 1280 x 1024,
1280 x 720 , 1024 x 768
Multi-screen Display
1st Screen: 1/4/8/9/16/25
2nd Screen: 1/4/8/9/16
OSD
Camera title, Time, Camera lock, Motion detection,
Recording
Recording
CompressionSmart H.265+/H.265/Smart H.264+/H.264/MJPEG
Resolution
12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP,
720P, D1 etc.
Record Rate320Mbps
Bit Rate16Kbps ~ 20Mbps Per Channel
Record Mode
Manual, Schedule (Regular, MD(Motion Detection) ,
Alarm, IVS), Stop
Record Interval
1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30
sec, Post-record: 10 ~ 300 sec
Video Detection and Alarm
Trigger Events
Recording, PTZ, Tour, Alarm Out, Video Push, Email,
Snapshot, Buzzer and Screen Tips
Video Detection
Motion Detection, MD Zones: 396 (22 x 18), Video
Loss and Tampering
Alarm input16 Channel
Relay Output6 Channel
Playback and Backup
Sync Playback1/4/9/16
Search Mode
Time /Date, Alarm, MD and Exact Search (accurate
to second)
Playback Function
Play, Pause, Stop, Rewind, Fast play, Slow Play, Next
File, Previous File, Next Camera, Previous Camera,
Full Screen, Backup Selection, Digital Zoom
Backup ModeUSB Device/Network/eSATA Device
Third-party Support
Third-party Support
Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC,
LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony,
Watchnet and more


Network
Interface1 RJ-45 Ports (10/100/1000Mbps)
Ethernet Port1 Independent 1000Mbps Ethernet Port
PoE24 ports (IEEE802.3af/at)
Network Function
HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP,
UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS,
FTP, Alarm Server, IP Search (Support Dahua IP
camera, DVR, NVS, etc.), P2P
Max. User Access128 users
Smart PhoneiPhone, iPad, Android
InteroperabilityONVIF 2.4, SDK, CGI
Storage
Internal HDD4 SATA III Ports, Up to 8 TB capacity for each HDD
eSATA1 eSATA
Auxiliary Interface
USB3 USB Ports (2 Rear USB 3.0 , 1 Front USB 2.0 )
RS2321 Port, for PC Communication and Keyboard
RS4851 Port, for PTZ Control
Electrical
Power SupplySingle, AC100V ~ 240V, 50 ~ 60 Hz
Power Consumption
NVR : <18W (Without HDD)
PoE: Max 25.5W for single port
210W total rated power, 80% control for protection
Environmental
Operating Conditions-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
Construction
Dimensions
1.5U, 440mm x 413.3mm x 76mm ;
(17.3" x 16.3" x 3.0")
Net Weight4.7kg (10.4 lb) (without HDD)
Gross Weight6.84kg (15.1 lb)
InstallationRack-mounted
Certifications
CEEN55032, EN55024, EN50130-4, EN60950-1
FCCPart 15 Subpart B, ANSI C63.4-2014
ULUL 60950-1

Pro Series | DHI-NVR5424-24P-4KS2
Rev 001.001© 2016 Dahua . All rights reserved. Design and specifications are subject to change without notice

Ordering Information
TypePart NumberDescription
24 Channel
NVR
DHI-NVR5424-24P-
4KS2
24 Channel 1.5U 24PoE 4K&H.265 Pro
Network Video Recorder
Accessories ESS1504C
4 HDDs eSATA Storage (Please confirm
with Technical Support for HDD capacity
& compatibility)
www.dahuasecurity.com

Accessories
ESS1504C
Dimensions (mm)
