PFA162-SG

Camera Mount Series | DH-PFA162-SG  DH-PFA162-SG  Housing Bracket    Technical Specification  Performance  Model  DH-PFA162-SG  Material  Aluminum alloy  Product Dimensions  115.0 mm x 115.0 mm x 98.8 mm  (4.53" x 4.53" x3.89") (L x W x H)  Net Weight  0.5 kg (1.1 lb)  Load Bearing  6.0 kg (13.23 lb)  Operating Temperature  –40°C to +60°C (–40°F to +140°F)  Operating Humidity  <90% (RH)  Color  Silver gray  Applicable Camera  Please see "Accessory Selection"      Ordering Information  Type  ModelDescription  Camera Mount  DH-PFA162-SGHousing Bracket    Dimensions (mm/inch)    Installation    www.dahuasecurity.com  Rev 001.001 © 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice.   Pictures in the document are for reference only, and the actual product shall prevail.   Scene  Suitable for camera mounting with operating temperature from –40°C to  +60°C (–40°F to +140°F) and relative humidity less than 90%.    Easy I nstalla tionA esthetic D esig n M ade of Aluminum    · Aluminum alloy material  · Matched with particular came...

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

Camera Mount Series | DH-PFA162-SG
DH-PFA162-SG

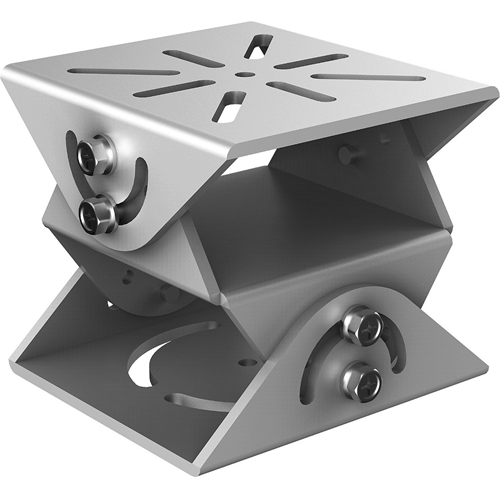

Housing Bracket

Technical Specification
Performance
Model
DH-PFA162-SG
Material
Aluminum alloy
Product Dimensions
115.0 mm x 115.0 mm x 98.8 mm
(4.53" x 4.53" x3.89") (L x W x H)
Net Weight
0.5 kg (1.1 lb)
Load Bearing
6.0 kg (13.23 lb)
Operating Temperature
–40°C to +60°C (–40°F to +140°F)
Operating Humidity
<90% (RH)
Color
Silver gray
Applicable Camera
Please see "Accessory Selection"


Ordering Information
Type
ModelDescription
Camera Mount
DH-PFA162-SGHousing Bracket

Dimensions (mm/inch)

Installation

www.dahuasecurity.com
Rev 001.001 © 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.
Scene
Suitable for camera mounting with operating temperature from –40°C to
+60°C (–40°F to +140°F) and relative humidity less than 90%.

Easy I nstalla tionA esthetic D esig n M ade of Aluminum

· Aluminum alloy material
· Matched with particular cameras, beautiful and elegant designed
