PFH610V-IR-V2

DH-PFH610V-IR      14” Vandal-proof IR Housing      Features  * IP66, IK10, Housing  * Water-proof coating film  * Neat & Integrated design    Specifications  Model DH-PFH610V-IR  General  Material Aluminum(case) & PC(others)  Product Dimension 404mm(L) x 164mm(W) x 132mm(H)  Inside Dimension  255mm(L) x 90mm(W) x 70.5mm(H)  215mm(L) x 90mm(W) x 83mm(H)  Window Dimension Φ50mm  Operating  Temperature  Set -40ºC ~60ºC  Heater ON: 5±5 ºC/OFF: 15±5 ºC  Cooler  ON: 37±5 ºC/OFF: 20±5 ºC  ON: 5±5 ºC/OFF: 15±5 ºC  Ingress Protection IP66, IK10  Humidity ≤90% RH  IR Distance 50&100m  Wiper N/A  Weight 2.7Kg  Power Supply AC24V 5A  Applicable Model Please see “Accessory Selection”        DH-PFH610V-IR      Dimensions (mm)      Application            Dahua Technology Co., Ltd.  1199 BinAn Road, Binjiang District, Hangzhou, China  Tel: +86-571-87688883  Fax: +86-571-87688815  Email: overseas@dahuatech.com  www.dahua...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DH-PFH610V-IR

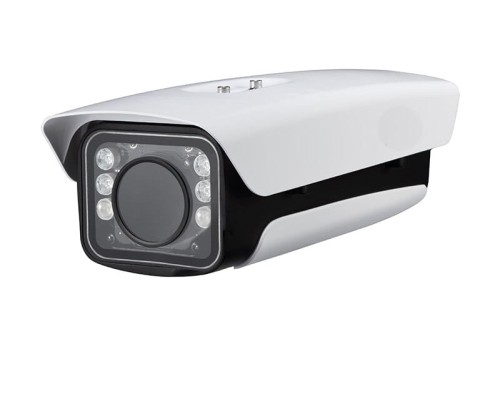

14” Vandal-proof IR Housing


Features
* IP66, IK10, Housing
* Water-proof coating film
* Neat & Integrated design

Specifications
Model DH-PFH610V-IR
General
Material Aluminum(case) & PC(others)
Product Dimension 404mm(L) x 164mm(W) x 132mm(H)
Inside Dimension
255mm(L) x 90mm(W) x 70.5mm(H)
215mm(L) x 90mm(W) x 83mm(H)
Window Dimension Φ50mm
Operating
Temperature
Set -40ºC ~60ºC
Heater ON: 5±5 ºC/OFF: 15±5 ºC
Cooler
ON: 37±5 ºC/OFF: 20±5 ºC
ON: 5±5 ºC/OFF: 15±5 ºC
Ingress Protection IP66, IK10
Humidity ≤90% RH
IR Distance 50&100m
Wiper N/A
Weight 2.7Kg
Power Supply AC24V 5A
Applicable Model Please see “Accessory Selection”



DH-PFH610V-IR


Dimensions (mm)


Application





Dahua Technology Co., Ltd.
1199 BinAn Road, Binjiang District, Hangzhou, China
Tel: +86-571-87688883
Fax: +86-571-87688815
Email: overseas@dahuatech.com
www.dahuasecurity.com
*Design and specifications are subject to change without notice.
© 2014 Dahua Technology Co., Ltd.
