PFL0550-E6D

Lens Series | DH-PFL0550-E6D            www.dahuasecurity.com  DH-PFL0550-E6D  6 MegaPixel 5-50mm Lens                          Lens | DH-PFL0550-E6D    www.dahuasecurity.com    Technical Specifications  Model DH-PFL0550-E6D  Parameter  Image format 1/2.7”  Focal length 5-50mm  Lens pixel 6MP  Aperture F1.6  Mount CS  Field Angle  (D*H*V)  1/2.7”  W: 65.7°x49.6°x36.9°  T: 5.2°x7°x5.2°  1/2.9”(3:2)  W: 58.1°x47°x33.2°  T: 8.1°x6.6°x4.7°  1/4’’  W: 42°x33°x25°  T: 5.9°x4.7°x3.6°  Lens Control  Focus Manual  Zoom Manual  Iris DC-iris  IR Correction Yes  M.O.D. 0.5m(1.64ft)  Dimension ɸ44x85.7mm(ɸ1.73”x3.37”)  Weight 0.2kg(0.44lb)  Operating temperature -30℃～+70℃(-22℉~158℉)  Humidity <90% RH    Order Information  Type Part Number Description  Lens  DH-PFL0550-E6D  6 MegaPixel 5-50mm Lens  _Dahua brand  PFL0550-E6D  6 MegaPixel 5-50mm Lens  _Neutral, no brand        Lens | DH-PFL0550-E6D      Rev 001.001 © 2016 Dahua. All rights reserved. Design and specifications are subject to change without notice.

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

Lens Series | DH-PFL0550-E6D





www.dahuasecurity.com
DH-PFL0550-E6D

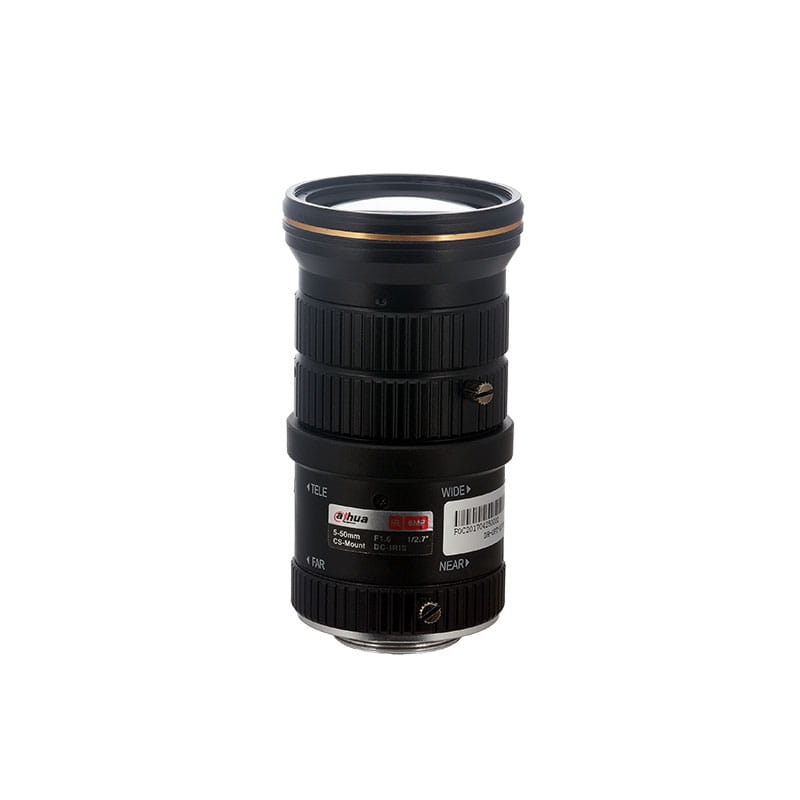

6 MegaPixel 5-50mm Lens












Lens | DH-PFL0550-E6D

www.dahuasecurity.com

Technical Specifications
Model DH-PFL0550-E6D
Parameter
Image format 1/2.7”
Focal length 5-50mm
Lens pixel 6MP
Aperture F1.6
Mount CS
Field Angle
(D*H*V)
1/2.7”
W: 65.7°x49.6°x36.9°
T: 5.2°x7°x5.2°
1/2.9”(3:2)
W: 58.1°x47°x33.2°
T: 8.1°x6.6°x4.7°
1/4’’
W: 42°x33°x25°
T: 5.9°x4.7°x3.6°
Lens Control
Focus Manual
Zoom Manual
Iris DC-iris
IR Correction Yes
M.O.D. 0.5m(1.64ft)
Dimension ɸ44x85.7mm(ɸ1.73”x3.37”)
Weight 0.2kg(0.44lb)
Operating temperature -30℃～+70℃(-22℉~158℉)
Humidity <90% RH

Order Information
Type Part Number Description
Lens
DH-PFL0550-E6D
6 MegaPixel 5-50mm Lens
_Dahua brand
PFL0550-E6D
6 MegaPixel 5-50mm Lens
_Neutral, no brand



Lens | DH-PFL0550-E6D


Rev 001.001 © 2016 Dahua. All rights reserved. Design and specifications are subject to change without notice.

www.dahuasecurity.com



Dimensions(mm/inch)


Application
