PFL1575-A12D

Lens Series | DH-PFL1575-A12D            www.dahuasecurity.com  DH-PFL1575-A12D  12MP 1/1.7” 15-75mm Vari-focal Lens                            Lens | DH-PFL1575-A12D    www.dahuasecurity.com  Technical Specifications  Model DH-PFL1575-A12D  Parameter  Image Format 1/1.7”  Focal Length 15-75mm  Lens Pixel 12MP  Aperture F1.5  Mount C  Field Angle  (D*H*V)  1/1.7”(4:3)  W: 33°(D)x26°(H)x19.2°(V)  T: 7.8°(D)x6.3°(H)x4.7°(V)  1/1.7”(17:9)  W: 30.6°(D)x26.8°(H)x13.8°(V)  T: 7.3°(D)x6.5°(H)x3.4°(V)  1/2’’  W: 28°(D)x22.2°(H)x16.5°(V)  T: 6.7°(D)x5.4°(H)x4°(V)  Lens Control  Focus Manual  Zoom Manual  Iris DC-Iris  IR Correction Yes  M.O.D. 1.5m (4.92ft)  Dimension ɸ58mmx116mm (ɸ2.28”x4.57”)  Weight 465g (1.03lb)  Operating Temperature -30℃~+70℃ (-22℉~+158℉)  Humidity <90% RH  Certifications  Certifications  CE (EN55032, EN55024, EN50130-4)  FCC (CFR 47 Part 15 Subpart B)    Order Information  Type Part Number Description  Lens  DH-PFL1575-A12D 12MP 1/1.7” 15-75mm vari-focal lens  PFL1575-A12D 12MP 1/1.7” 15-75mm vari-focal lens

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

Lens Series | DH-PFL1575-A12D





www.dahuasecurity.com
DH-PFL1575-A12D

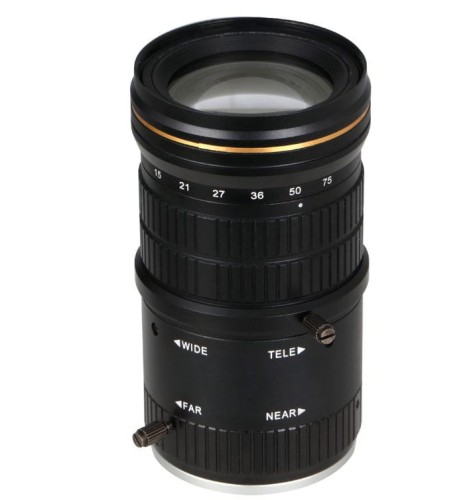

12MP 1/1.7” 15-75mm Vari-focal Lens













Lens | DH-PFL1575-A12D

www.dahuasecurity.com
Technical Specifications
Model DH-PFL1575-A12D
Parameter
Image Format 1/1.7”
Focal Length 15-75mm
Lens Pixel 12MP
Aperture F1.5
Mount C
Field Angle
(D*H*V)
1/1.7”(4:3)
W: 33°(D)x26°(H)x19.2°(V)
T: 7.8°(D)x6.3°(H)x4.7°(V)
1/1.7”(17:9)
W: 30.6°(D)x26.8°(H)x13.8°(V)
T: 7.3°(D)x6.5°(H)x3.4°(V)
1/2’’
W: 28°(D)x22.2°(H)x16.5°(V)
T: 6.7°(D)x5.4°(H)x4°(V)
Lens Control
Focus Manual
Zoom Manual
Iris DC-Iris
IR Correction Yes
M.O.D. 1.5m (4.92ft)
Dimension ɸ58mmx116mm (ɸ2.28”x4.57”)
Weight 465g (1.03lb)
Operating Temperature -30℃~+70℃ (-22℉~+158℉)
Humidity <90% RH
Certifications
Certifications
CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 Part 15 Subpart B)

Order Information
Type Part Number Description
Lens
DH-PFL1575-A12D 12MP 1/1.7” 15-75mm vari-focal lens
PFL1575-A12D 12MP 1/1.7” 15-75mm vari-focal lens



Lens | DH-PFL1575-A12D


Rev 001.001 © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.

www.dahuasecurity.com


Dimensions (mm/inch)

Application


Package Information
* 12MP 1/1.7” 15-75mm vari-focal lens PFL1575-A12D *1
* CS to C mount adapter *1
