Power Series | DH-PFM300





www.dahuasecurity.com

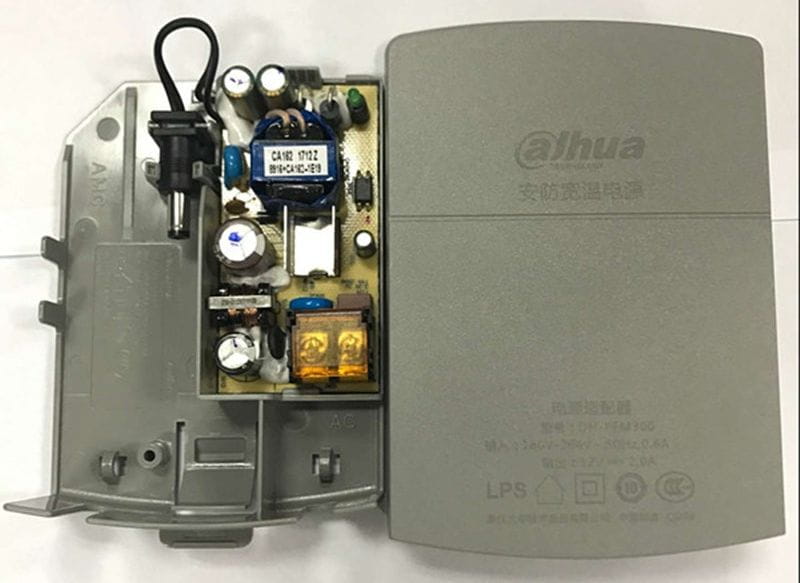

DH-PFM300
DC12V2A Power Adapter









Features
* Easy installation and wall mount, structural water-proof;
* Support -30℃~+70℃ wide-range temperature operation, and the full load efficiency of the power
supply can be up to 100% at these temperatures;
* With junction function for camera wiring or can place video balun with HDCVI/AHD/TVI/CVBS cameras;
* Made of PC environmental protection material, which meets “V0” fire protection;
* Accurate over current, voltage load protection.




Power Series | DH-PFM300

www.dahuasecurity.com
Technical Specifications
Model DH-PFM300
Electrical Specification
Rated input AC180~264V, 50/60Hz, 0.6A
Efficiency 82%
no-load power consumption <0.5W
Output voltage DC12V (±5%)
Output current 2A (±2%)
Protection/Environmental
Protection
* Accurate over current, voltage load protection
“V0” fire protection
Working temperature -30℃~+70℃(-22℉~+158℉)
Working humidity <90% RH
Physical Properties
Weight 160g(0.35lb)
Dimension(LxWxH) 88mmx37mmx138mm (3.46”x1.46“x5.43”)
Installation Wall mount
Color Grey
Input Palisade terminal
Output DC output wire 60mm (interface: φ5.5xφ2.1)
Safety Standards
Certification CE

Order Information
Type Part Number Description
Power series
DH-PFM300 DC12V 2A power adapter(CE)
DH-PFM320D-015 DC12V 1.5A power adapter(CE/FCC)
DH-PFM321D-EN
DC12V 1A power adapter(CE/FCC/UL-VI) for cameras DH-PFM321D-BS
DH-PFM321D-US
DH-PFM320D-EN
DC12V 2A power adapter(CE/FCC/UL-VI) for cameras DH-PFM320D-BS
DH-PFM320D-US

Power Series | DH-PFM300


Rev 001.001 © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.

www.dahuasecurity.com


Dimensions (mm/inch)

Application
