Power Series | DH-PFM340-5CH
www.dahuasecurity.com
DH-PFM340-5CH
CCTV Distributed Power Supply
Features

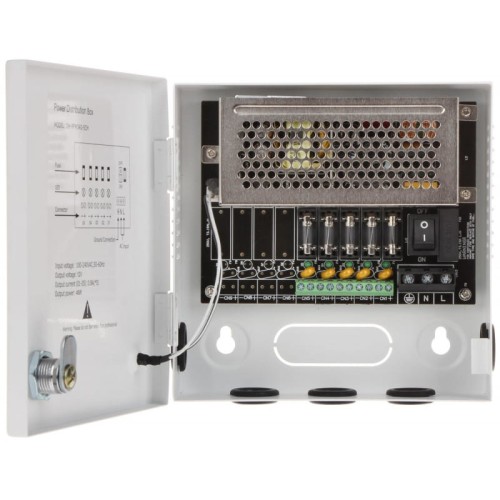

* 5 Channel security camera power supply distribution box with individual LED output indicator and
metal case by lock key to prevent unauthorized access.
* Wide voltage input: AC90~264Vac, meet the requirements in different parts for electric network
fluctuation.
* High quality and reliability: pass 100% quality examination and 3 months high temperature aging
test.
* With overload protection, over-current protection, over-voltage protection, anti-static and
anti-interference ability.
* Professional wall-mounted installation with reserved outlet holes, convenient and flexible.
Power Series | DH-PFM340-5CH
www.dahuasecurity.com
Technical Specifications
Model DH-PFM340-5CH
General
Input voltage range AC90~264V
Outputs 5 x 12VDC (-3%~+7%) Outputs
Max. output 4 A
Output protection 5 replacement fuses, max. per output 2.5A
Efficiency 84%
No load power consumption <0.5W
Surge protected
Line to ground: 4000V
Line to line: 2000V
ESD
Contact discharge: 6000V
Air discharge: 8000V
Internal ON/OFF power switch Yes
Individual LED output indicator Yes
Dimension 165mmx165mmx50mm(6.5”x6.5”x1.97”)
Weight 0.85kg(1.87lb)
Color White
Installation mode Wall-mounted
Operating temperature -20℃~+45℃(-4℉~+113℉)
Operating humidity <90% RH
Certification CE/FCC
Order Information
Type Part Number Description
Power
DH-PFM340-5CH
CCTV distributed power supply
_Dahua brand, 5x0.8A, DC12V
DH-PFM341-9CH
CCTV distributed power supply
_Dahua brand, 9x0.55A, DC12V
Power Series | DH-PFM340-5CH
Rev 001.001 © 2016 Dahua. All rights reserved. Design and specifications are subject to change without notice.
www.dahuasecurity.com
Dimensions (mm/inch)
Package Information
* CCTV distributed power supply box DH-PFM340-5CH *1
* Mounting sticker *1
* Fuse *2
* Key *2
* St4 screw *3
* Plastic anchor *3
Package data
Box Dimension 178mmx178mmx63mm (7.01”””
”””
