PFM341-9CH

www.dahuasecurity.com   Features  · 9 Channel security camera power supply distribution box with individual LED output indicator and metal case by lock  key to prevent unauthorized access;  · Wide voltage input: AC90~264Vac, meet the requirements in different parts for electric network fluctuation;  · High quality and reliability: pass 100% quality examination and 3 months high temperature aging test;  · With overload protection, over-current protection, over-voltage protection, anti-static and anti-interference ability;  · Professional wall-mounted installation with reserved outlet holes, convenient and flexible.    Power Series | DH-PFM341-9CH  DH-PFM341-9CH   CCTV Distributed Power Supply      Power Series | DH-PFM341-9CH    www.dahuasecurity.com    Technical Specification  Electrical Specification  ModelDH-PFM341-9CH  Input Voltage Range  AC90~264V  Outputs  9 x 12VDC (-3%~+7%) outputs  Max. output  5 A  Output Protection  9 replacement fuses, max. per output 2.5A  Efficiency  84%  No Load Power Consumption  <0.5W  Internal ON/OFF Power Switch  Yes  Individual LED Output IndicatorYes  Protection/Environmental  Surge Protected  Line to ground: 4000V  Line to l...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

www.dahuasecurity.com

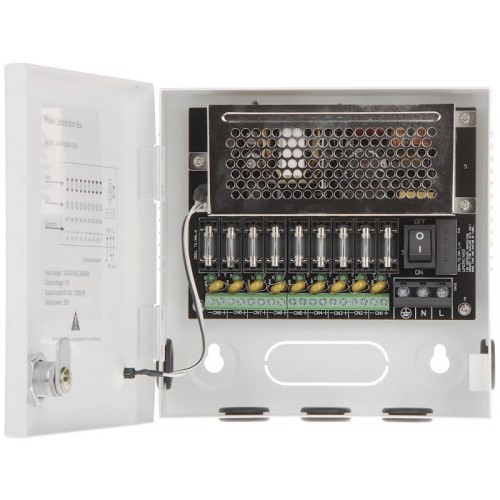

Features
· 9 Channel security camera power supply distribution box with individual LED output indicator and metal case by lock
key to prevent unauthorized access;
· Wide voltage input: AC90~264Vac, meet the requirements in different parts for electric network fluctuation;
· High quality and reliability: pass 100% quality examination and 3 months high temperature aging test;
· With overload protection, over-current protection, over-voltage protection, anti-static and anti-interference ability;
· Professional wall-mounted installation with reserved outlet holes, convenient and flexible.

Power Series | DH-PFM341-9CH
DH-PFM341-9CH
CCTV Distributed Power Supply


Power Series | DH-PFM341-9CH

www.dahuasecurity.com

Technical Specification
Electrical Specification
ModelDH-PFM341-9CH
Input Voltage Range
AC90~264V
Outputs
9 x 12VDC (-3%~+7%) outputs
Max. output
5 A
Output Protection
9 replacement fuses, max. per output 2.5A
Efficiency
84%
No Load Power Consumption
<0.5W
Internal ON/OFF Power Switch
Yes
Individual LED Output IndicatorYes
Protection/Environmental
Surge Protected
Line to ground: 4000V
Line to line: 2000V
ESD
Contact discharge: 6000V
Air discharge: 8000V
Working Temperature -20℃~+45℃(-4℉~+113℉)
Working Humidity<90% RH
Physical Properties
Weight 0.9kg(1.98lb)
Dimension(LxWxH) 165mmx165mmx50mm(6.5”x6.5”x1.97”)
InstallationWall mount
Color White
Safety Standards
Certification
CE(EN55032, EN55020)
FCC(FCC Part 15 Class B, ISED ICES-003 Issue 6)


Ordering Information
TypePart NumberDescription
Power series
DH-PFM340-5CHCCTV distributed power supply_Dahua brand, 5x0.8A, DC12V
DH-PFM341-9CH CCTV distributed power supply_Dahua brand, 9x0.55A, DC12V
DH-PFM342-9CHCCTV distributed power supply_Dahua brand, 9x1.1A, DC12V
DH-PFM343-19CHCCTV distributed power supply_Dahua brand, 19x1.05A, DC12V

Dimensions (mm/inch)
Rev 001.001© 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.

Power Series | DH-PFM341-9CH

www.dahuasecurity.com

Package Information

· CCTV distributed power supply box DH-PFM341-9CH *1
· Mounting sticker *1
· Fuse *2
· Key *2
· ST4 screw *3
· Plastic anchor *3

165.0[6.5”
]
50.0[1.97]
165.0[6.5”]
R9.5[0.37”]
160.0[6.3”]
50.0[1.97]
160.0[6.3”
]
160.0[6.3”]
