PFM800B-4K

www.dahuasecurity.com   Features  · Real-time transmission over UTP CAT5E/6 cable;  · Passive, no need for power supply;  · Excellent anti-thunder, anti-static and anti-interference capabilities;  · Compatible format: HDCVI/TVI/AHD/CVBS;  · With female BNC connector, and pluggable screw terminal connections.    HDCVI Accessory Series | DH-PFM800B-4K  DH-PFM800B-4K   1-CH Passive Video Balun      HDCVI Accessory Series | DH-PFM800B-4K    www.dahuasecurity.com    Technical Specification  ModelDH-PFM800B-4K  Properties  Transmission Signal1-CH  Network cable TypeUTP CAT5E/6 (material: CU)  Transmission Properties  HDCVI  720P : max.400m  (1312.34ft)  1080P : max.250m  (820.21ft)  4M/6M/4K : max.200m  (656.17ft)  TVI  720P : max.400m  (1312.34ft)  1080P : max.250m  (820.21ft)  4M/5M : max.200m  (656.17ft)  AHD  720P : max.400m  (1312.34ft)  1080P : max.250m  (820.21ft)  4M/5M : max.200m  (656.17ft)  Video Transmission Properties  Coaxial Video ConnectorBNC-M  Connection WayRJ45  Compatible FormatHDCVI/TVI/AHD/CVBS  Resolution720P/1080P/4MP/5MP/4K  Protection  ESD  1a contact discharge electricity level 3  1b air discharge el...

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

www.dahuasecurity.com
Features
· Real-time transmission over UTP CAT5E/6 cable;
· Passive, no need for power supply;
· Excellent anti-thunder, anti-static and anti-interference capabilities;
· Compatible format: HDCVI/TVI/AHD/CVBS;
· With female BNC connector, and pluggable screw terminal connections.

HDCVI Accessory Series | DH-PFM800B-4K
DH-PFM800B-4K

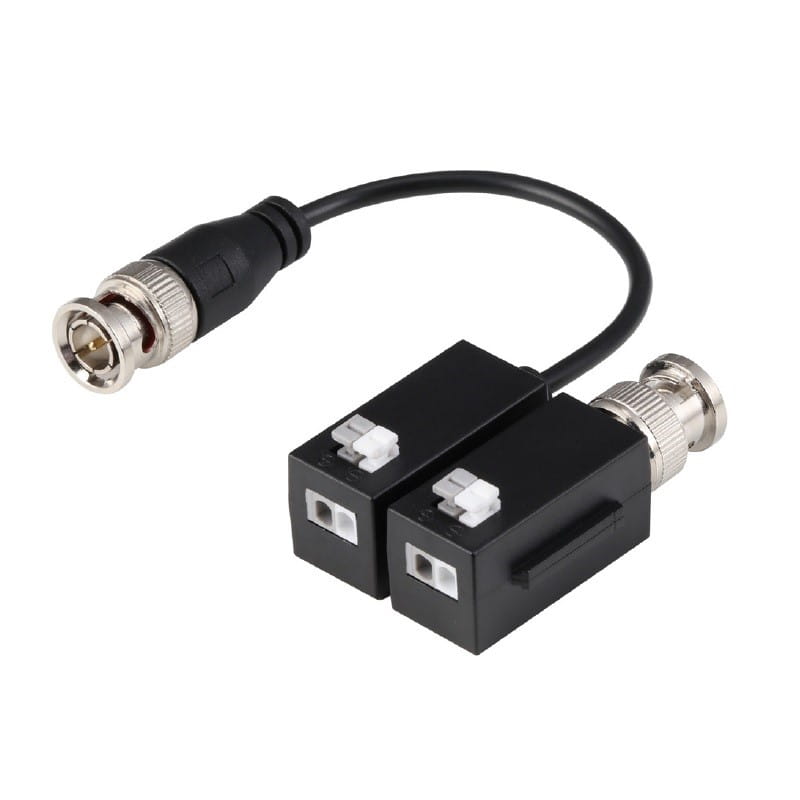

1-CH Passive Video Balun


HDCVI Accessory Series | DH-PFM800B-4K

www.dahuasecurity.com

Technical Specification
ModelDH-PFM800B-4K
Properties
Transmission Signal1-CH
Network cable TypeUTP CAT5E/6 (material: CU)
Transmission Properties
HDCVI
720P : max.400m
(1312.34ft)
1080P : max.250m
(820.21ft)
4M/6M/4K : max.200m
(656.17ft)
TVI
720P : max.400m
(1312.34ft)
1080P : max.250m
(820.21ft)
4M/5M : max.200m
(656.17ft)
AHD
720P : max.400m
(1312.34ft)
1080P : max.250m
(820.21ft)
4M/5M : max.200m
(656.17ft)
Video Transmission Properties
Coaxial Video ConnectorBNC-M
Connection WayRJ45
Compatible FormatHDCVI/TVI/AHD/CVBS
Resolution720P/1080P/4MP/5MP/4K
Protection
ESD
1a contact discharge electricity level 3
1b air discharge electricity level 3
Per: IEC61000-4-2
UTP Cable Connector
2KV(different-mode), 4KV(common-mode)
Per: IEC61000-4-5
Impedance
BNC Male Impedance75 ohms
UTP Cable Impedance100 ohms
Physical Properties
Weight34g (0.07lb) (1 pair)
Dimension(LxWxH)
TX: 173.8mmx19.5mmx21mm (6.84”x0.77“x0.83”)
RX: 49.1mmx19.5mmx21mm (1.93”x0.77“x0.83”)
ShellABS
Color Black
Environmental
Operating Temperature -30℃~+70℃(-22℉~+158℉)
Operating Humidity<95% RH
Storage Temperature -40℃~+80℃(-40℉~+176℉)


HDCVI Accessory Series | DH-PFM800B-4K

www.dahuasecurity.com

Dimension(mm/inch)

Ordering Information
TypePart NumberDescription
HDCVI Accessories
PFM800-E1-CH passive HDCVI balun
PFM800-4MP1-CH passive HDCVI balun
DH-PFM800-4K1-CH passive video balun
PFM800-4K1-CH passive video balun
DH-PFM800B-4K1-CH passive video balun
PFM800B-4K 1-CH passive video balun
PFM809-4MP16-CH passive HDCVI Balun
Related
Accessories
PFM920I-5EUN305m UTP CAT5E cable
PFM920I-5EU-C/U305m UTP CAT5E cable
PFM920I-6UN-C/U305m UTP CAT6 cable
PFM920I-6U-C/U305m UTP CAT6 cable


Rev 001.001© 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.

HDCVI Accessory Series | DH-PFM800B-4K

www.dahuasecurity.com

Application

Package Information
· 1-CH passive video balun DH-PFM800B-4K *1

CameraDVR
BALUN BALUN
