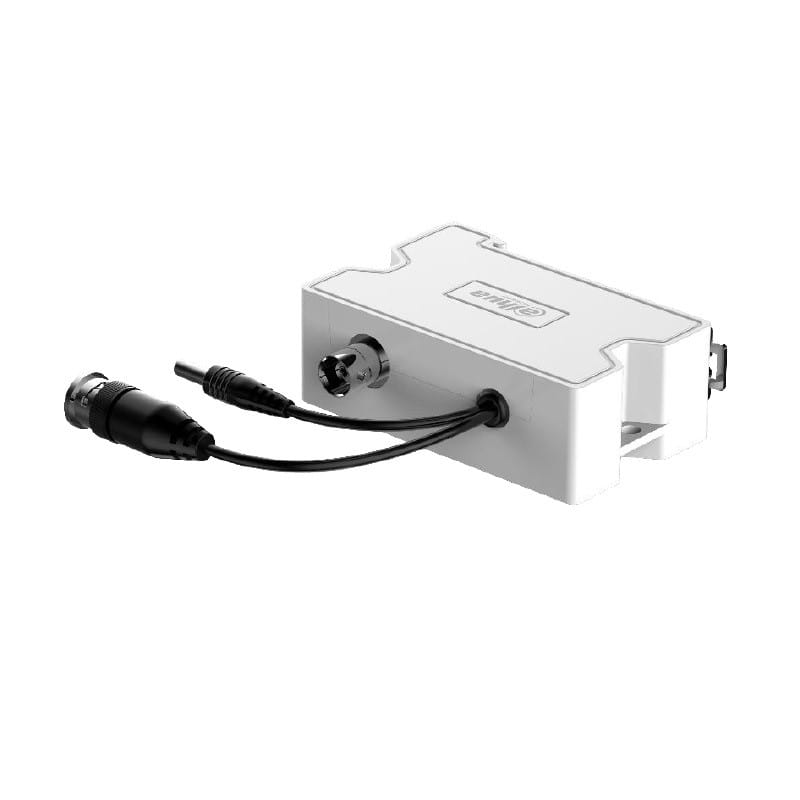

PFM811-C
product unavailable
zur Wunschliste hinzufügenBeschreibung
HDCVI Accessory Series | KIT/DH-PFM811-4CH/DH-PFM811-C www.dahuasecurity.com KIT/DH-PFM811-4CH/DH-PFM811-C POC Transmitter DH-PFM811-C *4 / DH-PFM811-4CH *1 Features * Support 400m RG59 transmission; support max. 15.6W HDCVI camera in single channel; * Support 400m OSD control; * Support DC12V~36V wide voltage power supply; * Support simultaneous power supply to max. 4 HDCVI cameras; * Support hot plugging. HDCVI Accessory Series | KIT/DH-PFM811-4CH/DH-PFM811-C www.dahuasecurity.com Technical Specifications Model DH-PFM811-C (PD end) DH-PFM811-4CH (PSE end) Video Transmission Properties And Port Transmission Channel 1-channel/pcs 4-channel/pcs Transmission Signal Support HDCVI 720P/1080P (AHD/TVI not supported) Transmission Distance RG59: max. 400m(1312.34ft) Transmission Medium RG59/RG6 Adaptive Power Range Of PSE End DC 12V~DC 36V Output Power Of PD End DC 12V, instantaneous max. power: 15.6W Storage Platform Support DVR-S3 and DVR-4M (XVR not supported) Protection Electrostatic Protection Contact discharge 6k Air ...
Warnung! Produkt aus der Produktion genommen!
Garantie: 36 mon.
Datentabelle
Textinhalt des PDF-Datenblattes:
HDCVI Accessory Series | KIT/DH-PFM811-4CH/DH-PFM811-C
www.dahuasecurity.com
KIT/DH-PFM811-4CH/DH-PFM811-C
POC Transmitter
DH-PFM811-C *4 / DH-PFM811-4CH *1
Features
* Support 400m RG59 transmission; support max. 15.6W HDCVI camera in single channel;
* Support 400m OSD control;
* Support DC12V~36V wide voltage power supply;
* Support simultaneous power supply to max. 4 HDCVI cameras;
* Support hot plugging.
HDCVI Accessory Series | KIT/DH-PFM811-4CH/DH-PFM811-C
www.dahuasecurity.com
Technical Specifications
Model DH-PFM811-C (PD end) DH-PFM811-4CH (PSE end)
Video Transmission Properties And Port
Transmission Channel 1-channel/pcs 4-channel/pcs
Transmission Signal
Support HDCVI 720P/1080P
(AHD/TVI not supported)
Transmission Distance RG59: max. 400m(1312.34ft)
Transmission Medium RG59/RG6
Adaptive Power Range Of PSE End DC 12V~DC 36V
Output Power Of PD End DC 12V, instantaneous max. power: 15.6W
Storage Platform Support DVR-S3 and DVR-4M (XVR not supported)
Protection
Electrostatic Protection
Contact discharge 6k
Air discharge 8k
Lighting Protection Grade Common mode 4k Common mode 2k
Stability
MTBF >10000h
Physical Properties
Dimension(LxWxH)
79mmx64mmx27mm
(3.11”x2.52”x1.06”)
183mmx105mmx42mm
(7.2”x4.13”x1.65”)
Shell Material PC+ABS SECC
Color White Black
N.W. 80g(0.18lb) 0.65kg(1.43lb)
Environmental
Operating Temperature -30℃~+60℃(-22℉~+140℉) -10℃~+55℃(+14℉~+131℉)
Storage Temperature -30℃~+80℃(-22℉~+176℉) -20℃~+70℃(-4℉~+158℉)
Humidity 0~95%(non-condensing)
No. Power Specification
Channel
15W Camera 12W Camera 6W Camera
1 12V
12V2A(24W) - 1CH 2 CH
12V3A(36W) 1 CH 2 CH 4 CH
12V5A(60W) 2 CH 4 CH 4 CH
2 24V
24V2.5A(60W) 2 CH 4 CH 4 CH
24V2A(48W) 2 CH 3 CH 4 CH
24V3A(72W) 3 CH 4 CH 4 CH
3 36V
36V1A(36W) 1 CH 2 CH 4 CH
36V2A(72W) 3 CH 4 CH 4 CH
Above testing conditions are as follows:
1. RG59-400m (DC impedance of RG59 cable is 5 Ohm for every 100 meters);
2. All cameras turn on infrared + 1 channel variable power and zoom.
HDCVI Accessory Series | KIT/DH-PFM811-4CH/DH-PFM811-C
www.dahuasecurity.com
Order Information
Type Part Number Description
HDCVI Accessories
DH-PFM811-C POC transmitter-PD end
PFM811-C POC transmitter-PD end
DH-PFM811-4CH POC transmitter-PSE end
PFM811-4CH POC transmitter-PSE end
KIT/DH-PFM811-4CH/DH-PFM811-C
POC transmitter-PD end *4
POC transmitter-PSE end *1
KIT/PFM811-4CH/PFM811-C
POC transmitter-PD end *4
POC transmitter-PSE end *1
Dimensions (mm/inch)
HDCVI Accessory Series | KIT/DH-PFM811-4CH/DH-PFM811-C
Rev 001.001 © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.
www.dahuasecurity.com
Application
