www.dahuasecurity.com
Features
· Support IP, HDCVI/AHD/HDTVI/CVBS;
· Highly compatible with ONVIF protocol;
· POE power supply/receiving & 12V/2A power output;
· 7”TFT HD capacitive touch screen(1920*1200);
· Two replaceable polymer lithium batterys 18.5Wh*2;
· Support WiFi test including spectrum, signal strength test @2.4G/5G Band;
· Support TDR network cable test;
· Support digital multi-meter function;
· Support optical power meter test function

Integrated Mount Tester Series | DH-PFM907

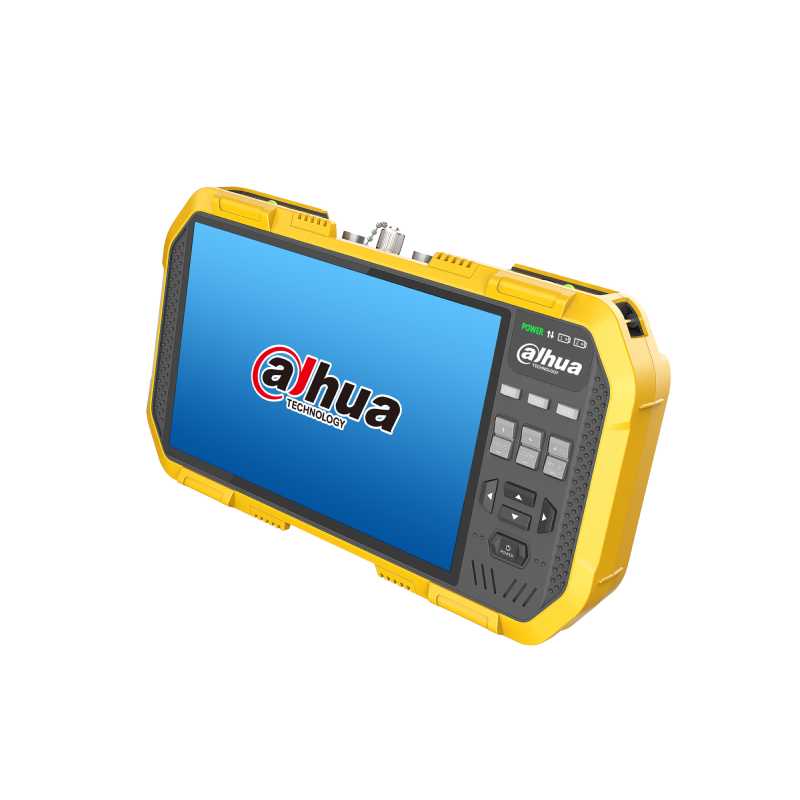

DH-PFM907
Integrated Mount Tester


Integrated Mount Tester Series | DH-PFM907

www.dahuasecurity.com

Technical Specification
ModelDH-PFM907
System Parameter
Screen
New 7 inch capacitive touch screen with retina display, 1920*1200 resolution, Adjustable backlight
Wi-Fi
Built in Wi-Fi, allows you to connect to a wireless network and view IP cameras
Control
Power button, 13 key control button, capacitive multi touch screen input
Auto Power Off
Disable / 5~60 minutes
Language
English / Chinese
Keyboard ToneEnable / Disable
UpgradeSupport online update on the internet
Dimension/Environmental
Dimensions235x135x45mm
Net Weight0.93Kg(2.05lb)
Working Temperature -10℃~+55℃(-22℉~+158℉)
Working Humidity30%~90% RH
IPC Test
IPC ProtocalONVIF, RTSP,RTP
Ethernet Test
10M/10M/1G ethernet link detection,ethernet loop detection, DHCP client and server, ethernet
traffic detection, data link quality detection.
IPC TestDiscovering the device, real-time video,camera configuration,PTZ test,discovering ONFIV device
IPC Image TestH.264/H.265 decoding, support 4K@30FPS, local zoom preview(at 8 levels)
InterfaceDual-port RJ45 ethernet 1Gbps, support Series/bridge connec
Analog Test
Video FormatHDCVI/HDTVI/AHD/CVBS(NTSC,PAL)
Video Signal 1 Vpp
Video ResolutionHDCVI 720P/1080P/4MP/4K; AHD/TVI 1080P/4MP
Video Input/OutputVideo IN BNC input, Video OUT BNC output
Video Digital ZoomSupport 8x digital zoom level
Video Signal GeneratorSending NTSC/PAL video test signal, sending HDCVI/HDTVI/AHD video test signal(720P/1080P)
WiFi Test
WiFi Test
Support 2.4G&5G frequency band, WiFi connection, WiFi list, WiFi information detection, Delay
detection, Test of packet loss rate
Spectrum TestSupport spatial frequency band signal scanning and detection and spatial noise signal detection
Signal MonitoringMonitor WiFi signal change, refresh frequency: 1~10Hz
Antenna typeFoldable dual antenna, dual band dipole omnidirectional antenna


Integrated Mount Tester Series | DH-PFM907

www.dahuasecurity.com

POE Test
PD Test
The tester receives the power(POE 802.3at), power supply voltage detection
PSE Test
The tester supplies the power(POE 802.3at)25.5W, PD actual power detection
HDMI Test
HDMI Output
Support 720P@25/30/50/60 Fps, 1080P@25/30Fps various formats video signal
Audio Test
Audio Input Support audio signal input test
Digital Multi-meter
DC Voltage2/20/200/600V measuring range, 0.1mV minimum resolution
AC Voltage20/200/600V measuring range, 1V minimum resolution
DC Current20/200/2000mA measuring range, 1μA minimum resolution
AC Current20/200/2000mA measuring range, 1μA minimum resolution
Resistor2/20/200KΩ 2/20MΩ measuring range, 0.1Ω minimun resolution
Capacitance2/20/200nF 2/20/200μF 2/20mF measuring range, 1pF minimun resolution
Diode Forward Voltage Drop2V measuring range, 0.1mV minimun resolution
Conductivity 2KΩ measuring range, 0.1Ω minimun resolution
Optical Power Meter
Type of Detector InGaAs
Calibration Wavelength1625nm/1550nm/1480nm/1310nm/1300nm/850nm
Power Range(dBm)-70 - +10 dBm
Measurement Accuracy<± 0.3dB(-10dBm@22℃) / <± 0.5dB(Full scale range@22℃)
Display ResolutionLinear display: 0.1%, Logarighmic dispaly: 0.01dBm
ConnectorInterchangeable FC/PC
Power Supply
Charger12V/1.5A 5.5mm round-plug power supply
BatteryTwo lithium batterys(18.5Wh) which can support 8~10 hours(it can work with a single battery)
Charging12V/1.5A(18W) charging about 3~4 hours.
Power Output12V/2A output interface: Round, external diameter 4mm, Internal needle: 1.6mm
PTZ Control test
Coaxial PTZ ControlHDCVI/HDTVI/AHD protocol
RS485 ControlMore than 30 protocols including Pelco-D/P, Samsung, Panasonic, Lilin, Yann & etc.

Integrated Mount Tester Series | DH-PFM907

www.dahuasecurity.com

Ordering Information
TypePart NumberDescription
Integrated Mount Tester Series
DH-PFM906-E
Integrated Mount Tester
PFM906-E

Dimensions (mm/inch)

Application


Rev 001.001© 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.

Integrated Mount Tester Series | DH-PFM907

www.dahuasecurity.com

Package Information
· Tool bag *1
· Warranty card *1
· User manual *1
· Power adaptor DC12V *1
· Network cable *1
· BNC cable *1
· RS485 cable *1
· 12V output cable *1
· Audio cable *1
· USB cable *1
· RS485 connection terminal *1
· Safety cord *1
· Tool bag cord *1
· Polymer lithium ion battery *2
· Multi-meter test leads one pair of red and black *1
