Cable Series | DH-PFM920I-5EUN-C
www.dahuasecurity.com
DH-PFM920I-5EUN-C

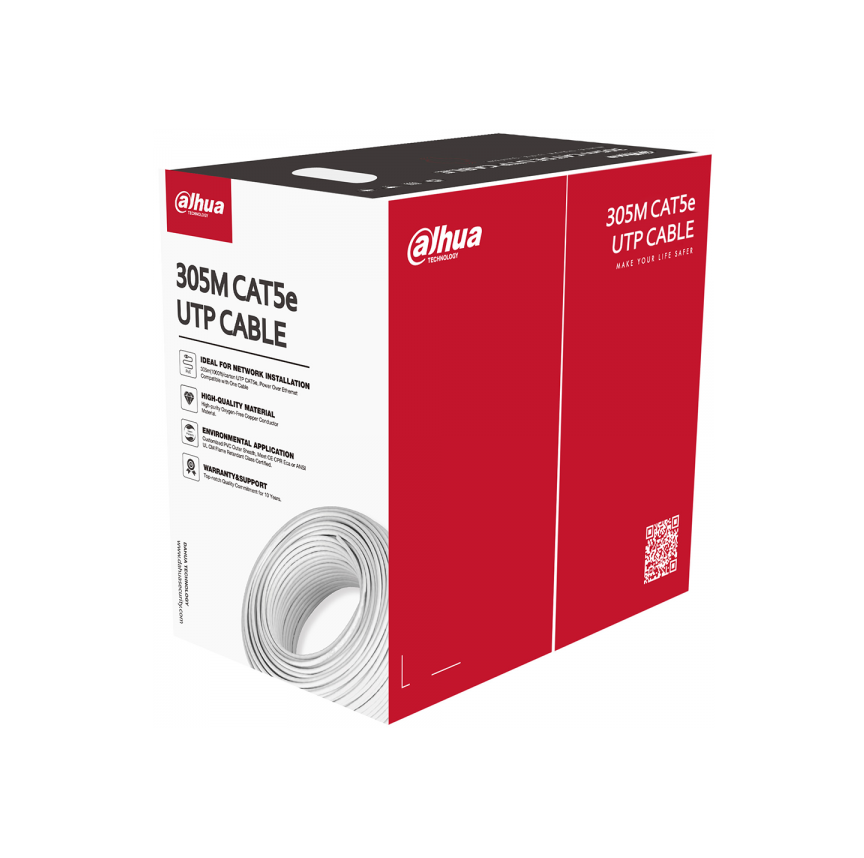

UTP CAT5e Cable
Network cables are the most commonly used transmission mediums in generic cabling system. It is usually composed of 4 pairs of twisted wires,
and is generally applied in system cabling within 100 meters.
Features
· 305.0 m (1000 ft)/carton UTP CAT5e, power over Ethernet, compatible with one cable
· High-purity Oxygen-Free Copper conductor material
· Customized PVC outer sheath; meet CE CPR Eca flame retardant class certified
· 10-year warranty
Cable Series | DH-PFM920I-5EUN-C
Technical Specification
Conductor
Material
Oxygen free copper (99.97% purity)
Diameter
0.45 mm ± 0.01 mm
Insulation
MaterialHDPE
Min. Average Thickness0.18 mm
Diameter0.83 mm ± 0.06 mm
Color (4 Pairs)
Blue, white/blue; orange, white/orange; green, white/green; brown, white/brown
Rip Cord
MaterialPolyester
Specification500D
Sheath
MaterialPVC
Min. Average Thickness0.5 mm
Diameter5.0 mm ± 0.3 mm
ColorWhite
Electrical
Max. DC Resistance of a Single Conductor12Ω/100 m
Min. Insulation Resistance5000MΩ·km
Max. DC Resistance Unbalance2% (pair intra), 4% (pairs inter)
Dielectric StrengthNo breakdown with 1KV DC for 1 min
Dielectric StrengthNo breakdown with 1KV DC for 1 min
Transmission
Characteristic Impedance100 ± 15Ω
Near End Cross Talk≥35.30 dB/100 m@100 MHz
Max. Attenuation24.2 dB/100 m@100 MHz
Return Loss≥20.1 dB/100 m@100 MHz
Mechanical
Tensile StrengthSheath≥13.5 MPa, insulation≥16 MPa
Elongation at BreakSheath≥150%, insulation≥300%
Installation Bending Radius>8 times of outer cable diameter
Conductor Elongation at Break≥10%
Environmental
Shrinkage of Insulation≤5%
Color Migration Resistance of InsulationNo migration
Sheath Tensile Strength and Elongation at Break after Aging≥12.5 MPa, ≥100%
Low Temperature Bending TestNo cracking after the test
Heat Shock TestNo cracking after the test
www.dahuasecurity.com
Cable Series | DH-PFM920I-5EUN-C
Dimensions (mm/inch)
www.dahuasecurity.com
Rev 001.001 © 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.
Ordering Information
TypePart NumberDescription
Network Cable
DH-PFM920I-5EUN-CUTP CAT5e Cable
Operation Temperature–20°C to +60°C (–4°F to 140°F)
Installation Temperature0°C to +50°C (32°F to 122°F)
Storage Temperature and Humidity–10°C to +40°C (14°F to 104°F), <60% (RH)
Security
Vertical Fire Propagation TestComply with IEC 60332-1-2
Packaging
Length305.0 m (1000.66 ft) ± 1.5 m (4.92 ft)
Packaging Dimensions342.0 mm x 342.0 mm x 220.0 mm (13.47" x 13.47" x 8.67") (L x W x H)
Packaging Method305.0 m (1000.66 ft) a carton, one protection carton with 2 cartons inside
Net Weight≥7.4 kg (16.31 lb)
Gross Weight≥8.4 kg (18.51 lb)
Executive Standard
Executive StandardQ/DXJ 067-2019, EN50575
Certification
CertificationCPR Eca
Package Information
· 305m UTP CAT5e cable *1
