PFM923I-6UN-C-V2

Cable Series | DH-PFM923I-6UN-C    www.dahuasecurity.com  DH-PFM923I-6UN-C  UTP CAT6 Cable    Network cables are the most commonly used transmission mediums in generic cabling system. It is usually composed of 4 pairs of twisted wires,  and is generally applied in system cabling within 100 meters.  Features  · 305.0 m (1000 ft)/carton UTP CAT6, power over Ethernet, compatible with one cable  · High-purity Oxygen-Free Copper conductor material  · Customized PVC outer sheath; meet CE CPR Eca flame retardant class certified  · 10-year warranty    Cable Series | DH-PFM923I-6UN-C    Technical Specification  Conductor  Material  Oxygen free copper (99.97% purity)  Diameter  0.53 mm ± 0.005 mm  Insulation  MaterialHDPE  Min. Average Thickness0.21 mm  Diameter0.98 mm ± 0.06 mm  Color (4 Pairs)  Blue, white/blue; orange, white/orange; green, white/green; brown, white/brown  Separator  Material  PE  Specification  Translucent 4.5 x 0.4 mm  Rip Cord  MaterialPolyester  Specification500D  Sheath  MaterialLSZH  Min. Average Thickness0.5 mm  Diameter6.3 mm ± 0.3 mm  ColorWhite  Electrical  Max. DC Resistance of a Single Conductor8.6Ω/100 m  Min. Insulation Resistan...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

Cable Series | DH-PFM923I-6UN-C

www.dahuasecurity.com
DH-PFM923I-6UN-C

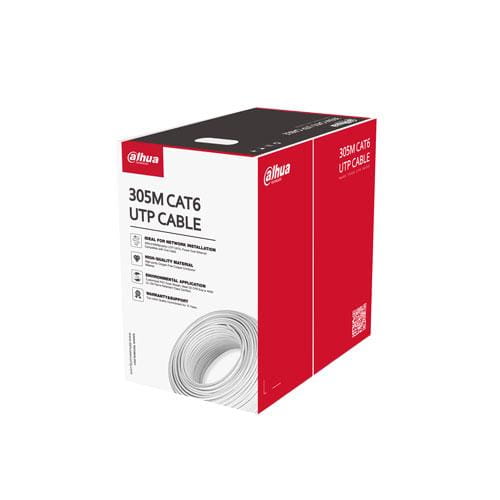

UTP CAT6 Cable

Network cables are the most commonly used transmission mediums in generic cabling system. It is usually composed of 4 pairs of twisted wires,
and is generally applied in system cabling within 100 meters.
Features
· 305.0 m (1000 ft)/carton UTP CAT6, power over Ethernet, compatible with one cable
· High-purity Oxygen-Free Copper conductor material
· Customized PVC outer sheath; meet CE CPR Eca flame retardant class certified
· 10-year warranty

Cable Series | DH-PFM923I-6UN-C

Technical Specification
Conductor
Material
Oxygen free copper (99.97% purity)
Diameter
0.53 mm ± 0.005 mm
Insulation
MaterialHDPE
Min. Average Thickness0.21 mm
Diameter0.98 mm ± 0.06 mm
Color (4 Pairs)
Blue, white/blue; orange, white/orange; green, white/green; brown, white/brown
Separator
Material
PE
Specification
Translucent 4.5 x 0.4 mm
Rip Cord
MaterialPolyester
Specification500D
Sheath
MaterialLSZH
Min. Average Thickness0.5 mm
Diameter6.3 mm ± 0.3 mm
ColorWhite
Electrical
Max. DC Resistance of a Single Conductor8.6Ω/100 m
Min. Insulation Resistance5000MΩ·km
Max. DC Resistance Unbalance2% (pair intra), 4% (pairs inter)
Dielectric StrengthNo breakdown with 1KV DC for 1 min
Transmission
Characteristic Impedance100 ± 15Ω
Near End Cross Talk≥39.3 dB/100 m@250 MHz
Max. Attenuation34.8 dB/100 m@250 MHz
Return Loss≥17.3 dB/100 m@250 MHz
Mechanical
Tensile StrengthSheath≥13.5 MPa, insulation≥16 MPa
Elongation at BreakSheath≥125%, insulation≥300%
Installation Bending Radius>8 times of outer cable diameter
Conductor Elongation at Break≥10%
Environmental
Shrinkage of Insulation≤5%
Color Migration Resistance of InsulationNo migration
Sheath Tensile Strength and Elongation at Break after Aging≥12.5 MPa, ≥100%

www.dahuasecurity.com

Cable Series | DH-PFM923I-6UN-C

Dimensions (mm/inch)

www.dahuasecurity.com

Rev 001.001 © 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.

Ordering Information
TypePart NumberDescription
Network Cable
DH-PFM923I-6UN-CUTP CAT6 Cable

Low Temperature Bending TestNo cracking after the test
Heat Shock TestNo cracking after the test
Operation Temperature–20°C to +60°C (–4°F to 140°F)
Installation Temperature0°C to +50°C (32°F to 122°F)
Storage Temperature and Humidity–10°C to +40°C (14°F to 104°F), <60% (RH)
Security
Vertical Fire Propagation TestComply with IEC 60332-1-2
Packaging
Length305.0 m (1000.66 ft) ± 1.5 m (4.92 ft)
Packaging Dimensions390.0 mm x 390.0 mm x 247.0 mm (15.37"x15.37"x9.73") (L x W x H)
Packaging Method305.0 m (1000.66 ft) a carton, one protection carton with 2 cartons inside
Net Weight≥11.5 kg (25.35 lb)
Gross Weight≥12.5 kg (27.56 lb)
Executive Standard
Executive StandardQ/DXJ 067-2019, EN 50575
Certification
CertificationCPR Eca


Package Information
· 305m UTP CAT6 cable *1
