PFS3006-4ET-60

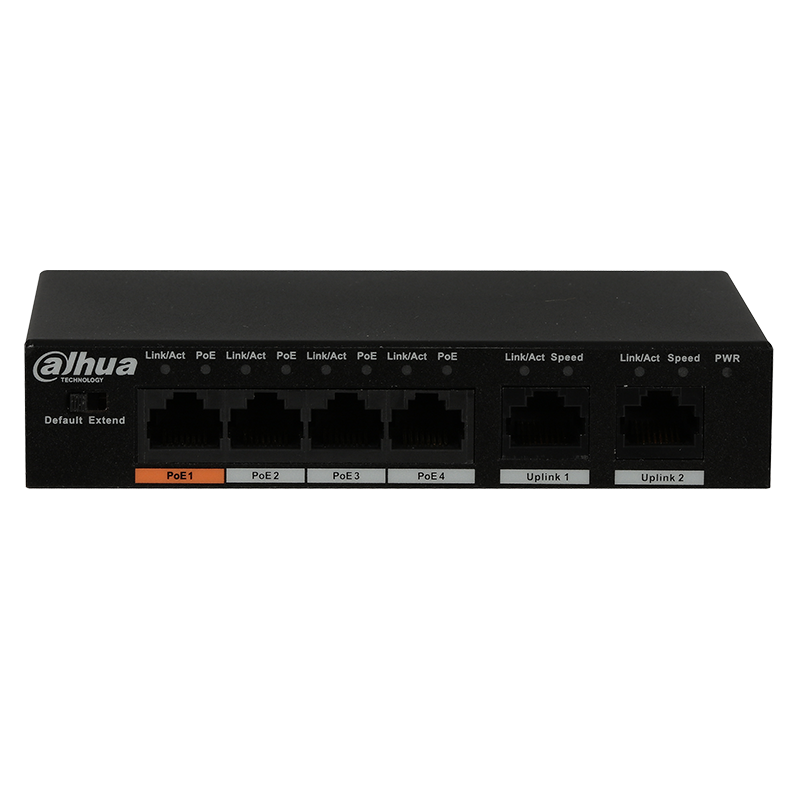

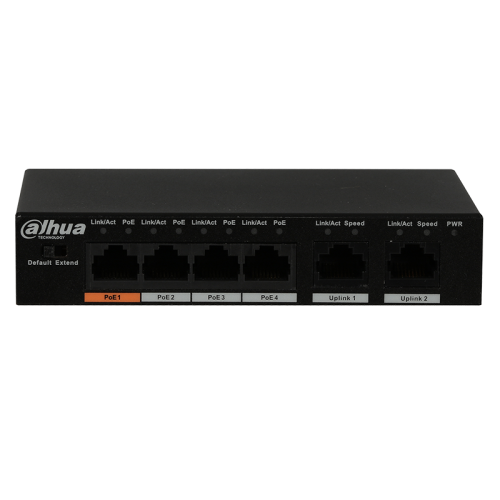

Product Overview
PFS3006-4ET-60 is a 4-port fast Ethernet switch, which supports 250
meters long distance PoE transmission. It provides 4*10/100Mbps
PoE ports and 2*100 Mbps uplink ports. The product is equipped with
two transmission modes (Default/Extend), which are controlled by DIP
switch.
www.dahuasecurity.com
Features
· Layer two commercial switch
· Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards
· MAC auto learning, aging, MAC address capacity is 2K
· Supports MDI/MDIX self-adaptation
· RJ45 port supports 10/100 Mbps self-adaptation
· Supports IEEE802.3af and IEEE803.3at power supply
standards
· Adopts metal enclosure
· Supports Hi-PoE 60W
· Supports DC 48-57V power supply
PFS30 06 - 4E T- 60
4-Port Fast Ethernet PoE Switch

Technical Specification
ModelPFS3006-4ET-60
Ethernet Port
2*10/100Mbps Uplink ports
4*10/100 Mbps PoE ports
PoE Power ConsumptionPort1≤60W, Port2-4≤30W, Total≤60W
PoE ProtocolIEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE
Switching Capacity1.8Gbps
Packet Forwarding Rate890kpps
Packet Buffer Memory768Kb
MAC Table Size2K
Flow ControlEnable by default
Application Humidity10%~90%
PowerDC48~57V power adapter
Lightning Protection
Common Mode 2KV
Differential Mode 0.5KV
Working Temperature-10°C~+55°C
Weight0.3kg
Dimension(WxDxH)130mmx85mmx26mm
