PFS3010-8GT-96-V2

www.dahuasecurity.com  DH-PFS3010-8GT-96  10-Port Gigabit Unmanaged Desktop Switch with 8-Port PoE    · Support eight 10/100/1000Mbps PoE Ethernet ports, and two   10/100/1000Mbps Ethernet ports  · Operating Temperature: –10°C to + 55°C  · PoE Power Requirement: 48V DC–57V DC Input  Desktop PoE Switch | DH-PFS3010-8GT-96   System Overview  The 8-port PoE gigabit switch is a gigabit access switch that supports  scenarios with 1 to 8 IPC and is widely used in supermarkets, hospitals  and stations.The 8-port PoE gigabit switch supports 8 gigabit PoE ports,  2 gigabit uplink Ethernet ports. The power consumption of full load is  96W.   Scene  Serve as the access switch in the security surveillance systems at  supermarkets, hospitals and stations.   Functions  Various Ports  Eight 10/100/1000 Mbps Base-TX PoE ports  Two 10/100/1000 Mbps Base-TX uplink Ethernet ports  Various Mount Type  Support desk mount and wall mount.    www.dahuasecurity.com    Desktop PoE Switch | DH-PFS3010-8GT-96  Rev 001.001© 2020 Dahua. All rights reserved. Design and specifications are subject to...

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

www.dahuasecurity.com
DH-PFS3010-8GT-96

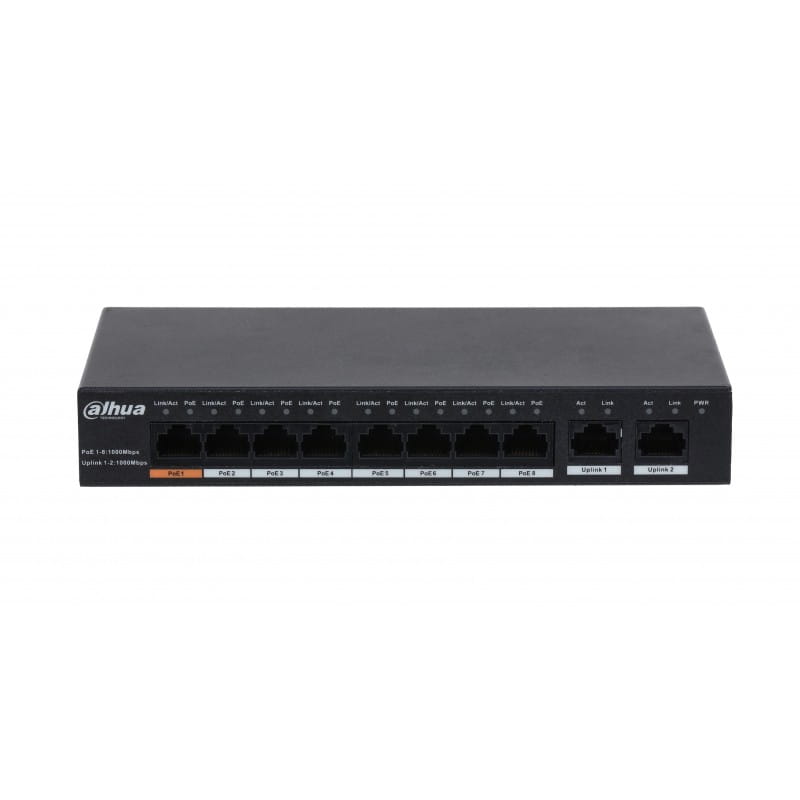

10-Port Gigabit Unmanaged Desktop Switch with 8-Port PoE

· Support eight 10/100/1000Mbps PoE Ethernet ports, and two
10/100/1000Mbps Ethernet ports
· Operating Temperature: –10°C to + 55°C
· PoE Power Requirement: 48V DC–57V DC Input
Desktop PoE Switch | DH-PFS3010-8GT-96
System Overview
The 8-port PoE gigabit switch is a gigabit access switch that supports
scenarios with 1 to 8 IPC and is widely used in supermarkets, hospitals
and stations.The 8-port PoE gigabit switch supports 8 gigabit PoE ports,
2 gigabit uplink Ethernet ports. The power consumption of full load is
96W.
Scene
Serve as the access switch in the security surveillance systems at
supermarkets, hospitals and stations.
Functions
Various Ports
Eight 10/100/1000 Mbps Base-TX PoE ports
Two 10/100/1000 Mbps Base-TX uplink Ethernet ports
Various Mount Type
Support desk mount and wall mount.

www.dahuasecurity.com

Desktop PoE Switch | DH-PFS3010-8GT-96
Rev 001.001© 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.

Technical Specification
Service Port
Eight 10/100/1000Mbps Base-TX PoE Ethernet ports
Two 10/100/1000Mbps Base-TX Ethernet ports
Power Supply
48V DC–57V DC
Operating Temperature–10°C to + 55°C (–14°F to 131°F)
Operating Humidity10%–90%
Power Consumption
Idling: 5W
Full load: 96W
PoE Budget
Port 1 ≤ 60W, Port 2–8 ≤ 30W, whole PoE budget ≤ 96W
PoE StandardIEEE802.3af; IEEE802.3at; Hi-PoE
PoE Pin AssignmentPoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
Switching Capacity20 Gbps
Packet Forwarding Rate14.88 Mpps
MAC Table Size4K
Jumbo Frame9216 bytes
Communication StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
ESD
Air discharge: 8kV
Contact discharge: 6kV
Thunderproof
Common mode: 6kV
Differential mode: 4kV
Net Weight0.50 kg (1.1 lb)
Gross Weight1.32 kg (2.91 lb)
Product Dimensions
190 mm x 100 mm x 30 mm (7.48" x 3.94" x 1.18")(W
x L x H)
Packaging Dimensions
Packing box: 303 mm x 262 mm x 72 mm (11.92"" x
10.31"" x 2.83"")
Protective box: 549 mm x 325 mm x 397 mm (21.61"" x
12.80"" x 15.63"")(W x L x H)
Package10 devices in one package
Certifications
CE: EN60950
FCC

Dimensions (mm[inch])

Panels

Application
