DH-PFS3106-4ET-60

www.dahuasecurity.com
Features
· Layer two Hardened PoE switch
· Supports PoE power management
· MAC auto learning and aging, MAC address capacity is 8K
· Conforms to IEEE802.3af and IEEE802.3at power supply
standard. Port 1 supports Hi-PoE 60W power supply
· Supports IEEE802.3, IEEE802.3u, IEEE802.3ab/z and
IEEE802.3X standards
· Wide working temperature design: -30°C~ 65°C
· Supports dual power backup
DH-PFS3106-4ET-60
4-Port PoE Switch (Unmanaged)

Technical Specification
ModelDH-PFS3106-4ET-60
Ethernet Port
1*100/1000 Base-X
1*10/100/1000 Base-T
4*10/100 Base-T (PoE power supply)
PoE Power ConsumptionPort1≤60W, Port2-4≤30W, Total≤60W
PoE PIN Assignment1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
PoE Power ManagementSupport
PoE ProtocolIEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE
Switching Capacity6.8G
Packet Forwarding Rate3.57Mpps
Packet Buffer Memory1Mb
MAC Table Size8K
Flow ControlEnable by default
Application Humidity5%~95%
PowerDC 48~57V power adapter
Lightning Protection
Common Mode 6KV
Differential Mode 4KV
ESD Protection
Air Discharge 15KV
Contact Discharge 8KV
Working Temperature-30°C~65°C
Weight440g
Dimension(WxDxH)150mmx108mmx30mm


Accessories
Model
PFT3900155M 850nm,2km,LC, Multi-mode
PFT39501.25G 850nm,500m,LC, Multi-mode
PFT3910155M 1310/1550nm,20km,LC, Single-mode
PFT3920155M 1550/1310nm,20km,LC, Single-mode
PFT39601.25G 1310/1550nm,20km,LC, Single-mode
PFT39701.25G 1550/1310nm,20km,LC, Single-mode

Product Overview

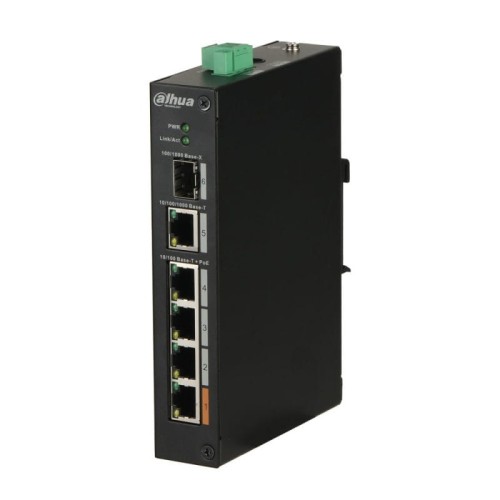

DH-PFS3106-4ET-60 is a layer two Hardened PoE Switch, which
provides 4*10/100Mbps PoE ports, 1*100/1000 Mbps optical port and
1*10/100/1000Mbps Ethernet uplink port. With high level lightning
protection and wide working temperature range makes it a better
performance in outdoor or harsh environment.
