PFS3111-8ET-96-F

DH-PFS3111-8ET-96-F    www.dahuasecurity.com   Features  · Layer-two Unmanaged PoE Switch  · Conforms to IEEE802.3, IEEE802.3u and IEEE802.3X  standards  · MAC auto study and aging, MAC address list capacity is 8K  · Conforms to IEEE802.3af and IEEE802.3at power supply  standard. Port 1 and 2 support Hi-PoE 60W power supply  · Adopts metal structure  · High protection grade, supports common mode 4KV,  differential mode 2KV  · Supports DC 48V-DC 57V power supply and dual power  backup  · Supports -30°C~65°C operating temperature  · Supports two types of transmission modes, which are  Default and Extend.Default mode is standard Ethernet mode  with transmission bandwidth of 100 Mbps and supports  transmission distance up to 100M via CAT6.Extend mode  is long distance transmission mode with transmission  bandwidth of 10 Mbps and supports transmission distance up  to 250M via CAT6. This function only supports port1-4  DH-PFS3111-8ET-96-F  11-Port Switch with 8-Port PoE    Technical Specification  ModelDH-PFS3111-8ET-96-F  Ethernet Port  8*RJ45 10/100M (PoE)  2*RJ45 10/100/1000M (uplink)  1*SFP 1000M (uplink)  PoE Power Consumption  Port1≤60W, Port2≤60W, Port3~8≤30W,  tot...

Warnung! Produkt aus der Produktion genommen!

Ersatzprodukt: PFS3110-8ET-96-V2

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DH-PFS3111-8ET-96-F

www.dahuasecurity.com
Features
· Layer-two Unmanaged PoE Switch
· Conforms to IEEE802.3, IEEE802.3u and IEEE802.3X
standards
· MAC auto study and aging, MAC address list capacity is 8K
· Conforms to IEEE802.3af and IEEE802.3at power supply
standard. Port 1 and 2 support Hi-PoE 60W power supply
· Adopts metal structure
· High protection grade, supports common mode 4KV,
differential mode 2KV
· Supports DC 48V-DC 57V power supply and dual power
backup
· Supports -30°C~65°C operating temperature
· Supports two types of transmission modes, which are
Default and Extend.Default mode is standard Ethernet mode
with transmission bandwidth of 100 Mbps and supports
transmission distance up to 100M via CAT6.Extend mode
is long distance transmission mode with transmission
bandwidth of 10 Mbps and supports transmission distance up
to 250M via CAT6. This function only supports port1-4
DH-PFS3111-8ET-96-F

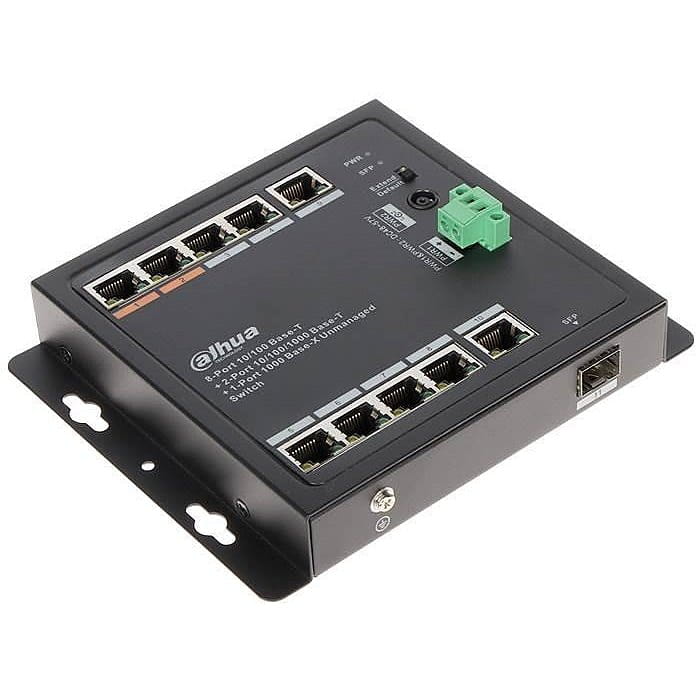

11-Port Switch with 8-Port PoE

Technical Specification
ModelDH-PFS3111-8ET-96-F
Ethernet Port
8*RJ45 10/100M (PoE)
2*RJ45 10/100/1000M (uplink)
1*SFP 1000M (uplink)
PoE Power Consumption
Port1≤60W, Port2≤60W, Port3~8≤30W,
total power≤96W
PoE ProtocolIEEE802.3af, IEEE802.3at, Hi-PoE
Switching Capacity13.6Gbps
Packet Forwarding Rate5.65Mpps
Packet Buffer Memory2Mb
Application Humidity10%~90%
PowerDC 48-57V
Lightning Protection
Common Mode 4KV
Differential Mode 2KV
Working Temperature-30°C~65°C
Dimension(WxDxH)158mm x130mm x25mm


Accessories
Model
PFT39501.25G 850nm,500m,LC, Multi-mode
PFT39601.25G 1310/1550nm,20km,LC, Single-mode
PFT39701.25G 1550/1310nm,20km,LC, Single-mode

Dimensions (mm)
