PFS3125-24ET-190

DH-PFS3125-24ET-190    www.dahuasecurity.com   Features  · Compliant IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x  standards  · Supports IEEE802.3af, IEEE802.3at, Hi-PoE standards  · Supports normal working mode, port isolation (VLAN) mode,  monitoring mode, network extend mode.  · Supports Store-and-Forward  · 24*10/100Mbps ports, 1*Gigabit Combo port, support port  auto flipping (Auto MDI / MDIX)  · Port 1-2 support the maximum power of 60W, PoE output  total power up to 190W  · Supports IEEE802.3x flow control for Full-duplex Mode and  backpressure for Half-duplex Mode  · 4K entry MAC address table with auto-learning and  auto-aging  · LED indicators for monitoring power, link and activity  DH-PFS3125-24ET-190  24-Port FE PoE+ 1-Port Gigabit Combo PoE Switch    Technical Specification  ModelDH-PFS3125-24ET-190  Standards  IEEE 802.3, IEEE 802.3u, IEEE802.3ab,  IEEE802.3z,IEEE802.3x, IEEE802.3af, IEEE802.3at,  Hi-PoE  Interface  24 x 10/100Mbps RJ45  1 x Gigabit Combo (RJ45/SFP)  Transfer MethodStore-and-Forward  Switching Capacity6.8Gbps  Packet Forwarding Rate5.06Mbps  Packet Buffer4Mbit  PoE Ports(RJ45)  Port 1/2 : Hi-PoE/PoE+/PoE;  Port 1-24 : PoE+/PoE...

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DH-PFS3125-24ET-190

www.dahuasecurity.com
Features
· Compliant IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x
standards
· Supports IEEE802.3af, IEEE802.3at, Hi-PoE standards
· Supports normal working mode, port isolation (VLAN) mode,
monitoring mode, network extend mode.
· Supports Store-and-Forward
· 24*10/100Mbps ports, 1*Gigabit Combo port, support port
auto flipping (Auto MDI / MDIX)
· Port 1-2 support the maximum power of 60W, PoE output
total power up to 190W
· Supports IEEE802.3x flow control for Full-duplex Mode and
backpressure for Half-duplex Mode
· 4K entry MAC address table with auto-learning and
auto-aging
· LED indicators for monitoring power, link and activity
DH-PFS3125-24ET-190

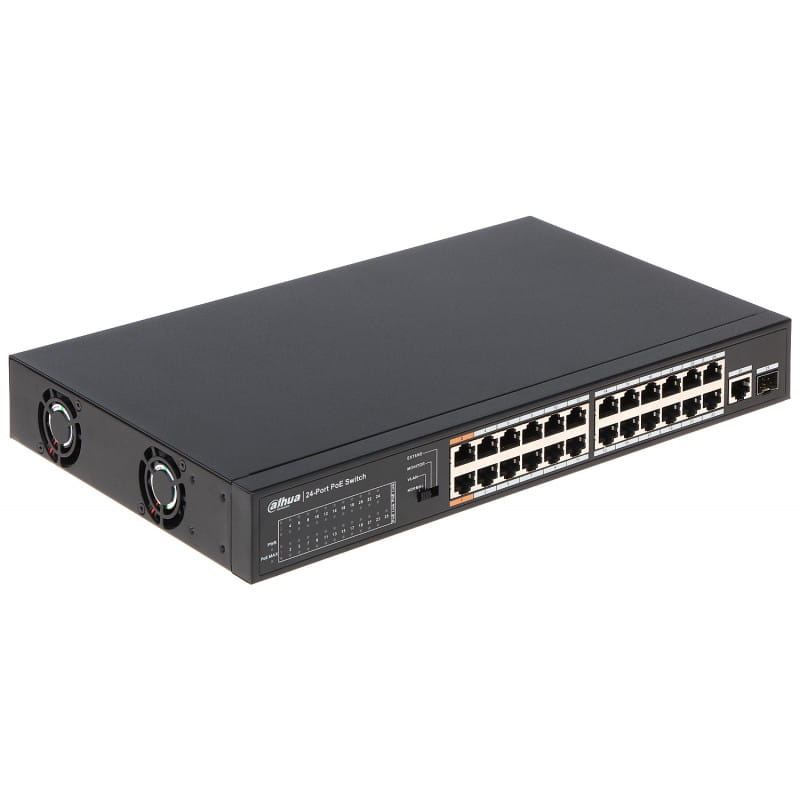

24-Port FE PoE+ 1-Port Gigabit Combo PoE Switch

Technical Specification
ModelDH-PFS3125-24ET-190
Standards
IEEE 802.3, IEEE 802.3u, IEEE802.3ab,
IEEE802.3z,IEEE802.3x, IEEE802.3af, IEEE802.3at,
Hi-PoE
Interface
24 x 10/100Mbps RJ45
1 x Gigabit Combo (RJ45/SFP)
Transfer MethodStore-and-Forward
Switching Capacity6.8Gbps
Packet Forwarding Rate5.06Mbps
Packet Buffer4Mbit
PoE Ports(RJ45)
Port 1/2 : Hi-PoE/PoE+/PoE;
Port 1-24 : PoE+/PoE
Power Pin Assignment
1 to 2 port: 1/2/4/5 (+), 3/6/7/8 (-)
Other PoE port: 4/5 (+), 7/8 (-)
PoE Budget190W
Mode
Default modeAll ports can communicate with each other
Isolation mode
PoE port cannot communicate with each other, but
can communicate with the uplink Combo port
CCTV mode
1 to 8 ports support port priority, optimize port
cache, switch all ports can communicate with each
other
Extender mode
1 to 8 port rate down to 10Mbps, the farthest
transmission distance of up to 250 meters, all ports
can communicate with each other


Accessories
Model
PFT39501.25G 850nm,500m,LC, Multi-mode
PFT39601.25G 1310/1550nm,20km,LC, Single-mode
PFT39701.25G 1550/1310nm,20km,LC, Single-mode

Indicators
Per DevicePower: Green MAX : Red
Per PortLink/Act: Green PoE: Yellow
Power SupplyAC 100V~240V 50/60HZ
Dimensions (W x D x H)340*200*43 mm (13” metal case)
Environment
Operating Temperature: 0°C ~ 45°C
Storage Temperature: -40°C ~ 70°C
Operating Humidity: 10%~90% RH No condensation
Storage humidity: 5%~90% RH No condensation
