PFS4018-16P-250

PFS4018-16P-250  16-Port PoE Switch      Product Overview  DH-PFS4018-16P-250 is a 16-port managed PoE Ethernet switch, which provides 16  100Mbps downlink PoE Ethernet ports, supports IEEE802.3 af/at and 2 1000Mpbs uplink  Ethernet ports. It supports Layer 2 network management and PoE management based on  web and provides high-speed data forwarding. It is widely used in security surveillance,  network engineering projects and so on.  Features     Two-layer network management PoE switch     Support IEEE802.3af, IEEE802.3at standard     Support spanning tree protocol STP/RSTP     Conform IEEE802.3, IEEE802.3u, IEEE802.3ab and IEEE802.3X standards     Support one-key recovery of IP address & user password  Technical Specifications  Model PFS4018-16P-250  Ethernet port  2*10/100/1000 Base-T、  （）      x≤，≤  、  x    －  ～２  x      ﹣℃～℃  x  xx          PFS4018-16P-250    Service Characteristics        Dahua Technology Co., Ltd.  1187 Bin...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

PFS4018-16P-250

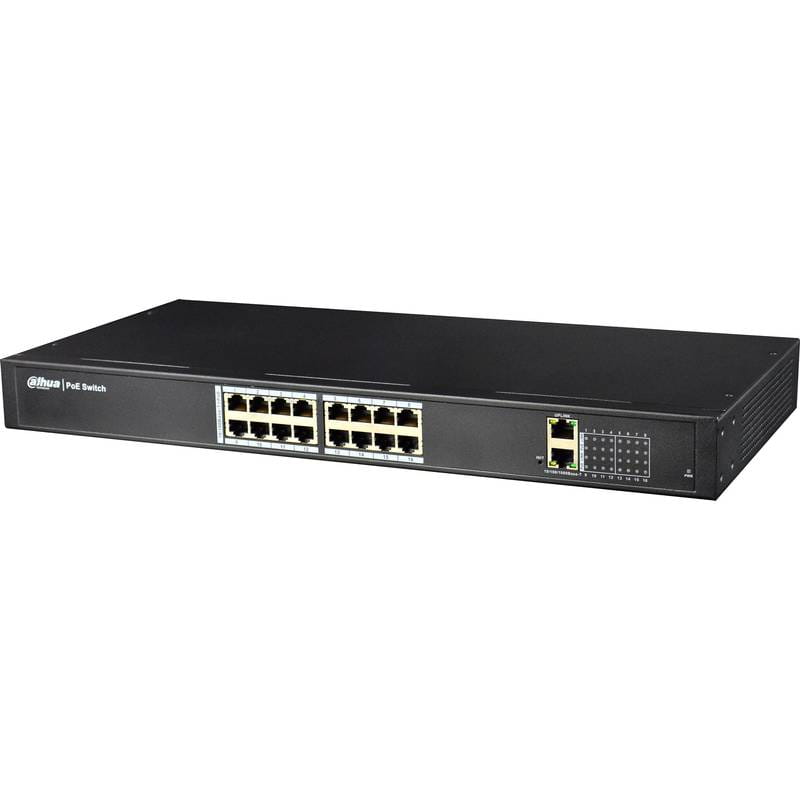

16-Port PoE Switch


Product Overview
DH-PFS4018-16P-250 is a 16-port managed PoE Ethernet switch, which provides 16
100Mbps downlink PoE Ethernet ports, supports IEEE802.3 af/at and 2 1000Mpbs uplink
Ethernet ports. It supports Layer 2 network management and PoE management based on
web and provides high-speed data forwarding. It is widely used in security surveillance,
network engineering projects and so on.
Features

Two-layer network management PoE switch

Support IEEE802.3af, IEEE802.3at standard

Support spanning tree protocol STP/RSTP

Conform IEEE802.3, IEEE802.3u, IEEE802.3ab and IEEE802.3X standards

Support one-key recovery of IP address & user password
Technical Specifications
Model PFS4018-16P-250
Ethernet port
2*10/100/1000 Base-T、
（）


x≤，≤
、
x

－
～２
x


﹣℃～℃
x
xx




PFS4018-16P-250

Service Characteristics



Dahua Technology Co., Ltd.
1187 BinAn Road, Binjiang District, Hangzhou, China
Tel: +86-571-87688883
Fax: +86-571-87688815
Email:overseas@dahuatech.com
www.dahuatech.com
*Design and specifications are subject to change without notice.
© 2012 Dahua Technology Co., Ltd.
Model DH-PFS4018-16P-250
System
Username / password: admin/admin
IP Address :192.168.1.200/24
PoE Budget 250W
MAC Table 16K
VLAN
Port-based VLAN
802.1Q Standard VLAN
Spanning Tree
STP
RSTP
Port Aggregation Link aggregation
Mirroring Support many-to-one port mirroring
Flow Control
Support half-duplex based on back pressure type control;
Support full duplex based on PAUSE frame;
Multicast IGMP Snooping
Security Features
Hardware supports IP+MAC binding based on port;
Support IEEE802.1x port authentication
System Maintenance
Support the configuration file upload/download
Support the updated packet upload
Support system logs
Network Management WEB(http and https protocol)
