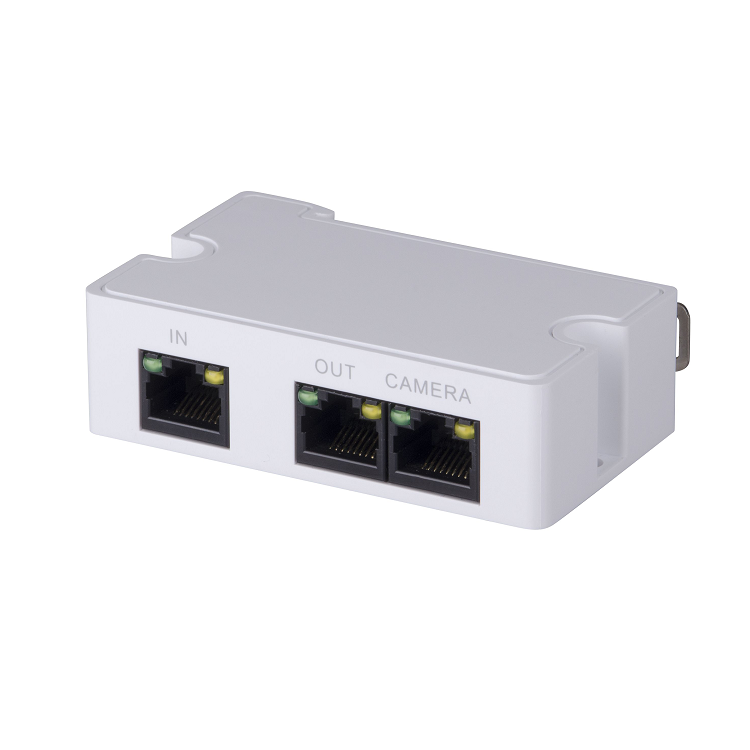

PFT1300
PoE Extender


Features
> Support passive PoE cascade power supply and Ethernet data exchange
> Support IEEE 802.3af/at standard power supply IP Camera
> Cooperate with High PoE Midspan (PFT1200), able to cascade level 2 PoE Extender,
connect to 3 IPC (power consumption <=8W), max transmission distance 300m
> 1*RJ45 10/100M PoE power supply input; 1*RJ45 10/100M supply power for IP Cam;
1*RJ45 10/100M supply power for the next extender
> Installation mode: junction box internal mounting, DIN rail mounting










PFT1300
Technical Specifications
Model PFT1300
Ethernet port
1*10/100 Base-T PoE power receiving port
1*10/100 Base-T PoE power supply port, supply power for the next
extender
1*10/100 Base-T PoE power supply port, supply power for IPC
Transmission
Distance
Cooperate with DH-PFT1200, able to cascade level two extender,
connect to 3 IPC (level one extender connects to 1 IPC, the
OUT port of level two extender and CAMERA port connect to
1 IPC respectively, IPC power consumption <=8W),
transmission distance is 300m
Power
Consumption
<=3W
Application
Humidity
10%－
