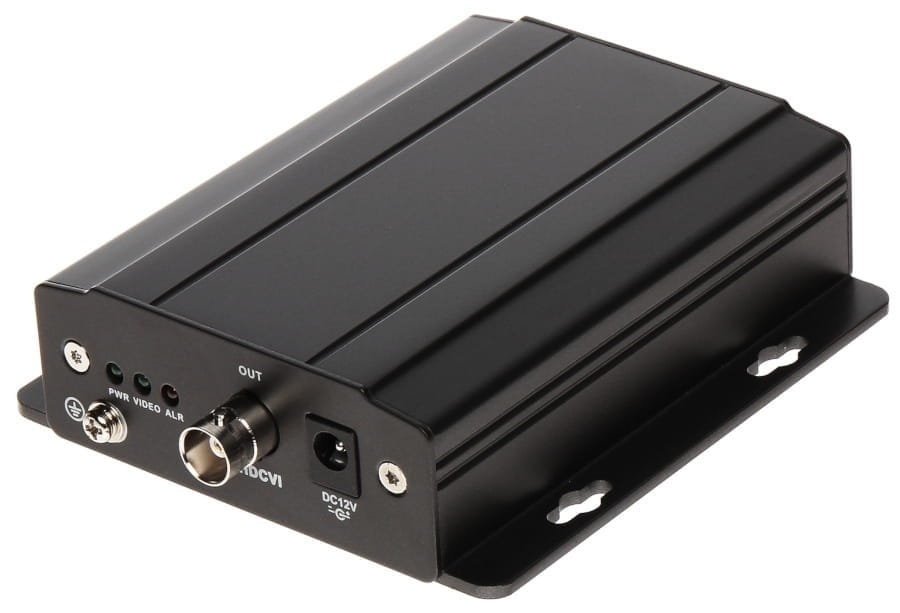

PFT2100
product unavailable
zur Wunschliste hinzufügenBeschreibung
PFT2100 www.dahuasecurity.com Features · Input HDMI video signal, self-adaptive output HDCVI signal · HDMI support mode, 1024*768@60Hz, 1280*720@50/60Hz, 1280*1024@60Hz, 1600*1200@60Hz, 1920*1080@50/60Hz · HDCVI output format, 720P/50, 720P/60, 1080P/25, 1080P/30 · Fully enclosed dustproof design PFT2100 HDMI-HDCVI Converter Technical Specification Model PFT2100 Physical Port Input : HDMI Output: HDCVI (BNC) Port SpecificationHDMI A Type HDMI Version HDMI 1.3,backward compatibility HDMI1.2 HDMI1.1 and etc HDMI Signal FormatEIA/CEA-861D standard Max Transmission Rate10.2Gbps Input Output TMDS Signal 0.5~1.5Vp-p(TDMS) Input Output DDC Signal 5Vp-p(TTL) Output Level1Vp-p Output Cable Length 1080P: 75-5 coaxial cable support 300m 720P: 75-5 coaxial cable support 500m Output Impedance75Ω Video Bandwidth45MHz Indicator Light Power , video , alarm indicator Application Humidity10%~90% PowerDC12V Power Consumption≤5W Working Temperature﹣10°C~55°C Weight315g Dimension(WxDxH)104.6mmx96.2mmx29.5mm Installation ModeWall-mounted...
Warnung! Produkt aus der Produktion genommen!
Garantie: 36 mon.
Datentabelle
Textinhalt des PDF-Datenblattes:
PFT2100
www.dahuasecurity.com
Features
· Input HDMI video signal, self-adaptive output HDCVI signal
· HDMI support mode, 1024*768@60Hz,
1280*720@50/60Hz, 1280*1024@60Hz,
1600*1200@60Hz, 1920*1080@50/60Hz
· HDCVI output format, 720P/50, 720P/60, 1080P/25,
1080P/30
· Fully enclosed dustproof design
PFT2100
HDMI-HDCVI Converter
Technical Specification
Model PFT2100
Physical Port
Input : HDMI
Output: HDCVI (BNC)
Port SpecificationHDMI A Type
HDMI Version
HDMI 1.3,backward compatibility HDMI1.2 HDMI1.1
and etc
HDMI Signal FormatEIA/CEA-861D standard
Max Transmission Rate10.2Gbps
Input Output TMDS Signal 0.5~1.5Vp-p(TDMS)
Input Output DDC Signal 5Vp-p(TTL)
Output Level1Vp-p
Output Cable Length
1080P: 75-5 coaxial cable support 300m
720P: 75-5 coaxial cable support 500m
Output Impedance75Ω
Video Bandwidth45MHz
Indicator Light Power , video , alarm indicator
Application Humidity10%~90%
PowerDC12V
Power Consumption≤5W
Working Temperature﹣10°C~55°C
Weight315g
Dimension(WxDxH)104.6mmx96.2mmx29.5mm
Installation ModeWall-mounted
