PLZ1040-D

www.dahuasecurity.com    Lens Series | PLZ1040-D  PLZ1040-D   4 MP 1/2.7” 2.7-12mm Vari-focal Lens      Lens Series | PLZ1040-D    www.dahuasecurity.com    Technical Specification  ModelPLZ1040-D  Prameter  Image Format1/2.7”  Focal Length2.7-12mm  Lens Pixel4MP  ApertureF1.6  MountCS  Field Angle  (D*H*V)  1/2.7” W: 137.8°(D)x102.6°(H)x74.3°(V)~T: 37.2°(D)x29.9°(H)x22.6°(V)  1/3” W: 120.1°(D)x91.3°(H)x66.3°(V)~T: 33.9°(D)x27.1°(H)x20.3°(V)  Lens Control  FocusManual  ZoomManual  IrisDC-Iris  IR CorrectionYes  TV Distortion -69.58%(w) ~ -3.3%  M.O.D.0.3m (0.98ft)  Dimension ɸ33.7mmx57.6mm (ɸ1.32”x2.27”)  Weight73.5g (0.16lb)  Operating Temperature-30℃~+70℃ (-22℉~+158℉)  Humidity<90% RH  Certifications  Certifications  CE (EN55022, EN55024, EN50130-4)  FCC (ANSI C63.4, FCC Part 15 Subpart B)      Ordering Information  TypePart NumberDescription  Lens  DH-PLZ1040-D 4MP 1/2.7” 2.7-12mm vari-focal lens  PLZ1040-D 4MP 1/2.7” 2.7-12mm vari-focal lens    Rev 001.001© 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.    Lens Series | PLZ1040-D    www.dahuasecurity.com    Dimensions (m...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

www.dahuasecurity.com

Lens Series | PLZ1040-D
PLZ1040-D

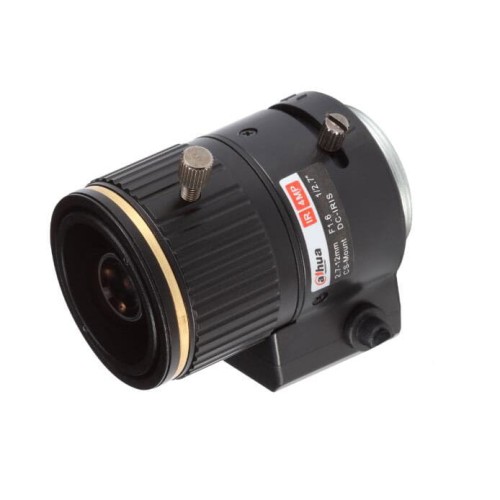

4 MP 1/2.7” 2.7-12mm Vari-focal Lens


Lens Series | PLZ1040-D

www.dahuasecurity.com

Technical Specification
ModelPLZ1040-D
Prameter
Image Format1/2.7”
Focal Length2.7-12mm
Lens Pixel4MP
ApertureF1.6
MountCS
Field Angle
(D*H*V)
1/2.7” W: 137.8°(D)x102.6°(H)x74.3°(V)~T: 37.2°(D)x29.9°(H)x22.6°(V)
1/3” W: 120.1°(D)x91.3°(H)x66.3°(V)~T: 33.9°(D)x27.1°(H)x20.3°(V)
Lens Control
FocusManual
ZoomManual
IrisDC-Iris
IR CorrectionYes
TV Distortion -69.58%(w) ~ -3.3%
M.O.D.0.3m (0.98ft)
Dimension ɸ33.7mmx57.6mm (ɸ1.32”x2.27”)
Weight73.5g (0.16lb)
Operating Temperature-30℃~+70℃ (-22℉~+158℉)
Humidity<90% RH
Certifications
Certifications
CE (EN55022, EN55024, EN50130-4)
FCC (ANSI C63.4, FCC Part 15 Subpart B)


Ordering Information
TypePart NumberDescription
Lens
DH-PLZ1040-D 4MP 1/2.7” 2.7-12mm vari-focal lens
PLZ1040-D 4MP 1/2.7” 2.7-12mm vari-focal lens

Rev 001.001© 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.

Lens Series | PLZ1040-D

www.dahuasecurity.com

Dimensions (mm/inch)

Package Information
· 4MP 1/2.7” 2.7-12mm vari-focal lens PLZ1040-D *1
