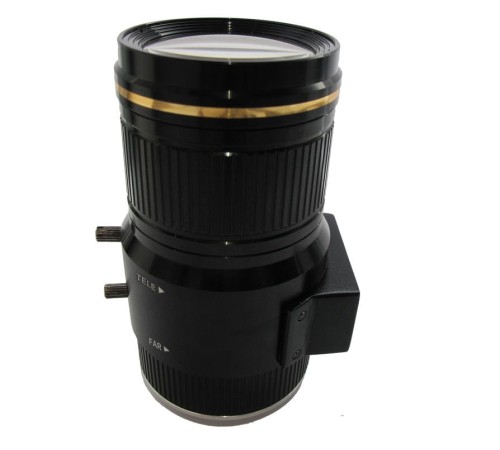

PLZ21C0-P

DH-PLZ21C0-P      12 MegaPixel P-Iris Lens        Specifications  Model DH-PLZ21C0-P  Parameter  Image format 1/1.7” (max. image format>ɸ9.33)  Focal length 10.5-42mm  Aperture F1.5±10%  Field Angle  W: 46.9°x 37.2°x 27.6°  T: 14.2°x 11.2°x 8.4°  M.O.D. 0.3m  TV Distortion -3%(Wide)  IR Correction Yes  Lens Control  Focus Manual  Zoom Manual  Iris P-Iris  Mount CS  Dimension ∅52x90.5mm  Weight 320g  Operating temperature -30℃～+70℃        DH-PLZ21C0-P      Dimensions (mm)              Dahua Technology Co., Ltd.  1199 BinAn Road, Binjiang District, Hangzhou, China  Tel: +86-571-87688883  Fax: +86-571-87688815  Email: overseas@dahuatech.com  www.dahuasecurity.com  *Design and specifications are subject to change without notice.  © 2014 Dahua Technology Co., Ltd....

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DH-PLZ21C0-P


12 MegaPixel P-Iris Lens



Specifications
Model DH-PLZ21C0-P
Parameter
Image format 1/1.7” (max. image format>ɸ9.33)
Focal length 10.5-42mm
Aperture F1.5±10%
Field Angle
W: 46.9°x 37.2°x 27.6°
T: 14.2°x 11.2°x 8.4°
M.O.D. 0.3m
TV Distortion -3%(Wide)
IR Correction Yes
Lens Control
Focus Manual
Zoom Manual
Iris P-Iris
Mount CS
Dimension ∅52x90.5mm
Weight 320g
Operating temperature -30℃～+70℃



DH-PLZ21C0-P


Dimensions (mm)






Dahua Technology Co., Ltd.
1199 BinAn Road, Binjiang District, Hangzhou, China
Tel: +86-571-87688883
Fax: +86-571-87688815
Email: overseas@dahuatech.com
www.dahuasecurity.com
*Design and specifications are subject to change without notice.
© 2014 Dahua Technology Co., Ltd.
