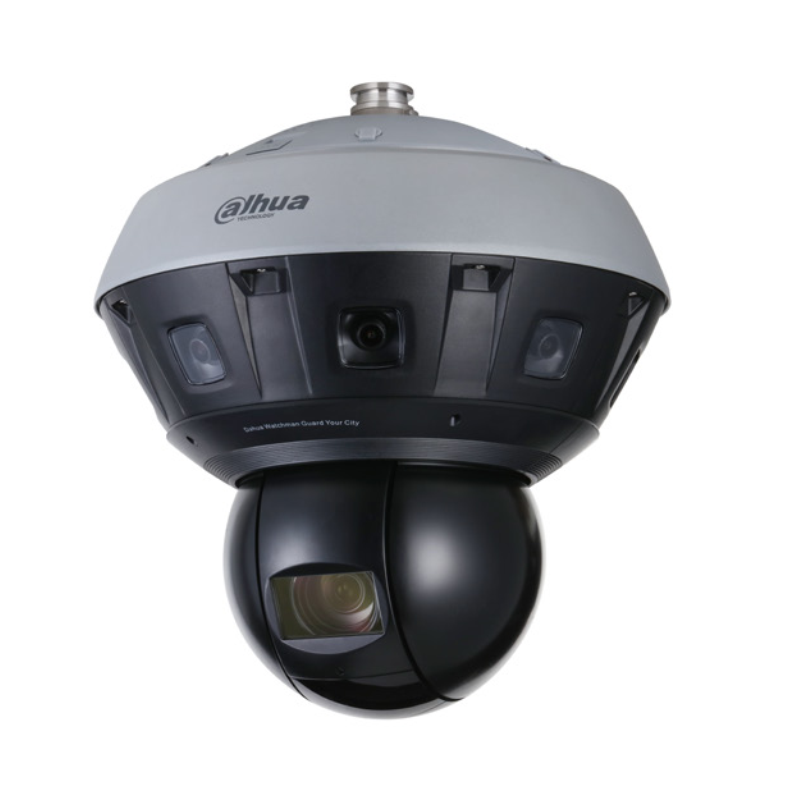

DH-PSDW82442M-A270-D440
6x4MP Multi-Sensor Panoramic + PTZ WizMind Network Camera

· Panoramic network camera: Six 1/1.8”4Megapixel progressive CMOS
PTZ camera: One 1/1.8”4Megapixel progressive CMOS
· Support 270-degree panoramic view
· Starlight+ technology
· Support Smart H265+/H264+ encoding
· Day/Night (ICR); 3D NR; AWB; AGC; BLC
· IR distance up to 400 m
· Smart tracking
· Tripwire
· Intrusion
· Crowd map
· Vehicle Density
Series Overview
The Panoramic Network Camera + PTZ Camera can splice up to a 270°
horizontal view to give you a wider view. Working with high-speed PTZ,
the camera can display the details. With advanced video analysis algo-
rithm, the camera supports linkage between panorama and details, and
situation analysis.
Functions
Panoramic Splicing
With advanced splicing algorithm, Dahua Panoramic Splicing technology
deletes overlapped area and splices multiple images to be a complete
panorama. The field of view of the spliced image can be up to 270°,
which largely improves surveillance efficiency and user experience. Gen-
erally, after splicing, the field of view of six-sensor camera can be 270°.
Smart Tracking
With advanced algorithm, Dahua network camera can detect targets,
track targets with speed dome, and view details.
Crowd Density
With deep learning algorithm, Dahua Crowd Density technology can de-
tect the crowd density on the image, and display it on heat map; it can
detect people quantity and density in selected area and set threshold.
When the number or density is larger or smaller than the threshold, it
triggers linkage.
Vehicle Density
With deep learning algorithm, Dahua Vehicle Density technology
analyses the vehicle situation in the image, such as vehicle number in
selected area. You can set threshold, and when the number is larger or
smaller than the threshold, it triggers linkage.
Perimeter Protection
With deep learning algorithm, Dahua Perimeter Protection technology
can recognize human and vehicle accurately. In restricted area (such as
pedestrian area and vehicle area), the false alarms of intelligent detec-
tion based on target type (such as tripwire and intrusion) are largely
reduced.
AR Panorama
Dahua AR panorama technology generates wide-field of view through
panoramic merging and splicing. The software overlaps the cameras
as tags in the image. Click the tag to display the corresponding camera
video, which makes monitoring visual and convenient, and improves
command efficiency.
| DH-PSDW82442M-A270-D440

Launched by Dahua Technology, Dahua WizMind is a full portfolio of so-
lutions composed of project-oriented products including IPC, NVR, PTZ,
XVR, Thermal and software platform which adopts industry-leading deep
learning algorithms. Focusing on customer's requirements, WizMind
provides precise, reliable and comprehensive AI solutions for verticals.
Panoramic Splicing
Vehicle DensitySmart Tracking
Crowd Density
Perimeter Protection


www.dahuasecurity.com

Technical Specification
Camera
Image Sensor1/1.8”4Megapixel progressive CMOS
Max. Resolution
8192 (H) x 2700 (V)
ROM
Panoramic network camera: 4 GB
PTZ camera: 32 GB
RAM
Panoramic network camera: 8 GB
PTZ camera: 4 GB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100,000 s
Min. Illumination
Panoramic network camera:
0.001 Lux (Color); 0.0001 Lux (B/W)
PTZ camera:
0.001 Lux (Color); 0.0001 Lux (B/W); 0 Lux (IR on)
S/N Ratio
> 56 dB
Illumination Distance
PTZ camera:
≥ 400 m (1312 ft) (IR LED)
Illuminator On/Off Control
Auto/Manual/Zoomprio
Illuminator Number
7 (IR LED)
Pan/Tilt/Rotation Range
Pan: 0° to 355°
Tilt: –20° to 70°
Rotation: 0°–355°
Lens
Lens Type
Panoramic network camera: Fixed-focal
PTZ camera: Vari-focal
Mount Type
Panoramic network camera: M12
PTZ camera: Module
Focal Length
Panoramic network camera: 2.8 mm
PTZ camera: 5.6 mm–223 mm
Max. Aperture
Panoramic network camera: F1.6
PTZ camera: F1.35–F4.8
Field of View
Panoramic network camera:
Horizontal: 270°
Vertical: 111°
PTZ camera:
Horizontal: 2.27°–61.4°
Vertical: 1.3°–35.99°
Diagonal: 2.62°–68.18°
Iris Type
Panoramic network camera: Fixed
PTZ camera: Auto
Close Focus Distance
Panoramic network camera: 1.4 m (4.6 ft)
PTZ camera: 500 mm–2000 mm (19.7"–78.7") (T to W)
DORI
Distance
LensDetectObserveRecognizeIdentify
Panoramic
network
camera
57.9 m
(190.0 ft)
23.2 m
(76.1 ft)
11.6 m
(38.1 ft)
5.8 m
(19.0 ft)
PTZ camera
2873.1 m
(9426.2 ft)
1149.2 m
(3770.3 ft)
574.6 m
(1885.2 ft)
287.3 m
(942.6 ft)
Professional, intelligent
IVS (Perimeter Protection)Tripwire; intrusion
Crowd Distribution Map
Crowd map, global crowd density; crowd density in area;
people counting in area; smart track for crowd density
exception
Vehicle DensityParking upper limit; traffic congestion alarm

| DH-PSDW82442M-A270-D440

Intelligent Search
Work together with Smart NVR to perform refine
intelligent search, event extraction and merging to event
videos.
Video
Video Compression
H.265; H.264; H.264H; H.264B; MJPEG (only supported by
the sub stream)
Smart Codec
Smart H.264+
Smart H.265+
Video Frame Rate
Panoramic network camera:
Main stream: 8192 x 2700 @1–25/30 fps
Sub stream 1: 2048 x 680 @1–25/30 fps
Sub stream 2: 3840 x 1248 @1–25/30 fps
PTZ camera:
Main stream: 2560 x 1440 @1–25/30 fps
Sub stream 1: 704 x 480 @1–25/30 fps
Sub stream 2: 1920 x 1080 @–25/30 fps
Stream Capability3 streams
Resolution
Panoramic network camera:
Main stream: 8192 x 2700; 7680 x 2520; 5760 x 1896;
4096 x 1360
Sub stream 1: 2048 x 680; 1600 x 532; 1280 x 420
Sub stream 2: 3840 x 1248; 2560 x 840
PTZ camera:
Main stream: 2560 x 1400; 2048 x 1536; 1920 x 1080;
1280 x 960; 1280 x 720
Sub stream 1: 704 x 576/704 x 480; 352 x 288/352 x 240
Sub stream 2: 1920 x 1080; 1280 x 960; 1280 x 720
Bit Rate ControlCBR/VBR
Video Bit Rate
Panoramic network camera:
H.264: 127 kbps– 65536 kbps
H.265: 50 kbps– 65536 kbps
PTZ camera:
H.264: 32 kbps– 17152 kbps
H.265: 12 kbps– 10240 kbp
Day/NightAuto (ICR)/Color/B/W
BLCYes
HLCYes
WDR
Panoramic network camera: DWDR
PTZ camera: 120 dB
Scene Self-adaptation Yes
White Balance
Auto/natural/street lamp/outdoor/manual/regional
custom
Gain ControlAuto/Manual
Noise Reduction3D NR
Motion DetectionOFF/ON (4 areas, rectangular)
Region of Interest (RoI)
Panoramic network camera: Yes (4 areas)
PTZ camera: Yes (4 areas)
Electronic Image
Stabilization (EIS)
Panoramic network camera: Not support
PTZ camera: Yes
Smart IlluminationYes
Defog
Panoramic network camera: Not support
PTZ camera: Optical defog
Flip
Panoramic network camera: Not support
PTZ camera: 180°
Privacy Masking
Panoramic network camera: 4 areas
PTZ camera: 8 areas


Power
Power Supply36V DC
Operating Voltage36V DC (±50%)
Power Consumption
Basic power consumption: 33.7W (36V DC)
Max. power consumption (Basic power consumption
+ WDR + intelligent functions enabled + IR on + PTZ
operation): Panoramic network camera: 71.9W (36V DC);
PTZ camera: 5.4W
Environmental
Operating Conditions–40°C to +70°C (–40°F to +158°F)
Storage Temperature
5°C–40°C (41°F–104°F)(The temperature difference of
each day is within 15°C/59°F)
Protection GradeIP66; IK10 (optional)
Structure
CasingMetal + Plastic
DimensionsΦ383 mmx389.8 (Φ15.1" x 15.3")
Box Dimensions
500 mm x 500 mm x 658 mm (19.7" x 19.7" x 25.9")
(L x W x H)
Net Weight14.7 kg (32.4 lb)
Gross Weight19.8 kg (43.7 lb)
InstallationWall mount; ceiling mount; pole mount
Power AdapterStandard
LensStandard
Power Output12V DC power output, max. current 165mA
Others
PositionGPS/BDS

Audio
Audio CompressionPCM;G.711A;G.711Mu;G.726;AA;G.723
Alarm
Alarm Event
No SD card; SD card full; SD card error; SD card service
life warning; network disconnection; IP conflict; illegal
access; motion detection; video tampering; tripwire;
intrusion; scene changing; audio detection; intensity
change; voltage detection; external alarm; safety
exception; crowd congestion; vehicle congestion; parking
upper limit
Audio Sampling8 KHz; 16 KHz; 32 KHz; 48 KHz; 64 KHz
Network
NetworkRJ-45 (10/100/1000 Base-T)
SDK and APIYes
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP;
RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP;
NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x;
SNMP
Interoperability
ONVIF (Profile S/Profile G/Profile T); CGI;
Milestone;Genetec
User/Host20 (Total bandwidth: 1000 M)
StorageMicro SD card (support max. 256 G); FTP; SFTP; NFS; SMB
Browser
IE: IE9; IE10; IE11
Chrome: 42 and earlier
Firefox: 52 and earlier
Management SoftwareEVS;NVR5X-I;IVSS;DSS Pro;M70;Milestone;Genetec
PTZ Dome
Pan Range
Pan: 0° to 360° endless
Tilt: –12° to 90°, auto flip 180
Manual Control Speed
Pan: 240°/s
Tilt: 100°/s
Remote Lens ResetYes
Remote PTZ ResetYes
Preset300
Tour 8 (up to 32 presets per tour0)
Pattern 5
Scan5
Power-off MemoryYes
Idle MotionPreset/Pattern/Tour/Scan
Time TaskYes
Three-dimensional
Positioning
Yes
PTZ LimitYes
Position DisplayYes
Information DisplayYes
Time DisplayYes

www.dahuasecurity.com
| DH-PSDW82442M-A270-D440

Certifications
Certifications
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Port
RS-4851 (baud rate range: 1200 bps–115200 bps); reserved
Audio Input2 channels (terminal)
Audio Output2 channels (terminal)
Alarm Input7 channels in: 5mA 3V–5V DC
Analog Output1 channel (CVBS outputs, NBC port)
Optical Module
Specification
SFP optical module, single mode, single fiber 20KmTX-
1310nm/RX-1550nm
Optical FiberFC
Optical Fiber Module Type
Gigabit SFP optical module, single mode, single fiber TX-
1550nm/RX-1310nm
Alarm Output3 channels out: 1,000mA 30V DC/500mA 50V AC
SDIYes

Dimensions (mm[inch])

Rev 001.001© 2020 Dahua . All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.

www.dahuasecurity.com
| DH-PSDW82442MP-A270-D440

Accessories
Optional:

PFB710W-SG
Wall Mounted
PFA153-SG
Polo Mounted
PFB710C-SG
Ceiling Mounted

Ordering Information
TypePart NumberDescription
24MP
Camera
DH-PSDW82442M-
A270-D440
6x4MP Multi-Sensor Panoramic + PTZ
WizMind Network Camera, PAL/NTSC
Accessories
(Optional)
PFB710C-SGCeiling Mounted
PFB710W-SGWall Mounted
PFA153-SGPolo Mounted
