All-environment Series | DH-PTZ12230F-LR8-N

www.dahuasecurity.com
· 1/1.9” 2Megapixel CMOS
· Powerful 30x optical zoom
· Starlight technology
· Support Triple-stream encoding
· Max. 25/30fps@1080P, 25/30/50/60fps@720P
· Auto-tracking and IVS
· IR Distance up to 800m
· IP66

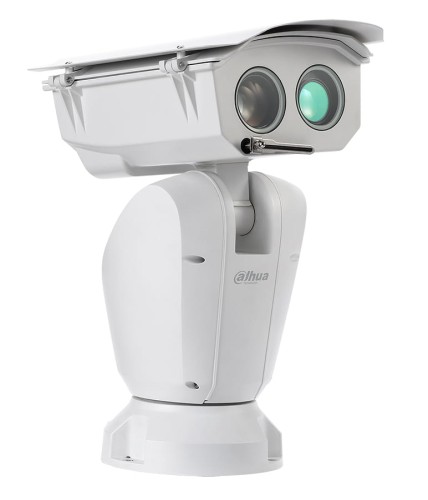

DH-PTZ12230F-LR8-N
2MP 30x Starlight Laser Network Positioning System

System Overview

Featuring powerful optical zoom and accurate pan/tilt/zoom
performance, this camera provides an all-in-one solution for capturing
long distance video surveillance for outdoor applications. Together with
infrared illumination and Starlight technology, the camera is the perfect
solution for dark, lowlight applications. The series combines a day/night
mechanical IR cut filter for the highest image quality in variable lighting
conditions during the day, and True WDR for applications with direct
sunlight or glare.
Functions
Starlight Technology
For challenging low-light applications, Dahua’s Starlight Ultra-low Light
Technology offers best-in-class light sensitivity, capturing color details
in low light down to 0.002 lux. The camera uses a set of optical features
to balance light throughout the scene, resulting in clear images in dark
environments.
Wide Dynamic Range
The camera achieves vivid images, even in the most intense contrast
lighting conditions, using industry-leading wide dynamic range (WDR)
technology. For applications with both bright and low lighting conditions
that change quickly, True WDR (120 dB) optimizes both the bright and
dark areas of a scene at the same time to provide usable video.
Auto-tracking
This feature controls the pan/tilt/zoom actions of the camera to
automatically track an object in motion and to keep it in the scene. The
tracking action can be triggered manually or automatically by defined
rules. Once a rule is triggered, the camera can zoom in and track the
de fined target automatically.
PFA Technology
PFA technology has innovatively introduced new methods of judgment
to ensure the accuracy and predictability of the direction of subject
distance adjustment. The result is a set of advanced focusing algorithms.
PFA ensures clarity of the image throughout the process of zooming
and shortens focus time. The realization of PFA technology substantially
improves user experience and increases product value.
Environmental
Dahua cameras operate in extreme temperature environments, rated
for use in temperatures from -40 °C to +70 °C (-40 °F to +158 °F) with
95% humidity. Subjected to rigorous dust and water immersion tests
and certified to the IP66 Ingress Protection rating makes it suitable for
demanding outdoor applications.
Protection
The camera allows for ±25% input voltage tolerance, suitable for the
most unstable conditions for outdoor applications. Its 6KV lightning
rating provides effective protection for both the camera and its structure
against lightning.
Interoperability
The camera conforms to the ONVIF (Open Network Video Interface
Forum) specifications, ensuring interoperability between network video
products regardless of manufacturer.

0.002
Lux

www.dahuasecurity.com
All-environment Series | DH-PTZ12230F-LR8-N

Technical Specification
Camera
Image Sensor1/1.9" CMOS
Effective Pixels
1920(H) x 1080(V), 2 Megapixels
RAM/ROM1024M/64M
Scanning SystemProgressive
Electronic Shutter Speed 1/1s~1/30,000s
Minimum Illumination
Color: 0.002Lux@F1.5; B/W: 0.0002Lux@F1.5;
0Lux@F1.5 (IR on)
S/N RatioMore than 55dB
IR DistanceDistance up to 800m(2625ft)
IR On/Off ControlAuto/Manual
IR LEDs4
Wiper Support
Lens
Focal Length6mm ~ 180mm
Max. ApertureF1.5~ F4.3
Angle of ViewH: 61.2° ~ 2.1°
Optical Zoom30x
Focus ControlAuto/Manual
Close Focus Distance100mm~ 1000mm
DORI Distance
*Note: The DORI distance is a “general proximity” of distance which makes it easy to
pinpoint the right camera for your needs. The DORI distance is calculated based on
sensor specification and lab test result according to EN 62676-4 which defines the
criteria for Detect, Observe, Recognize and Identify respectively.
DetectObserveRecognizeIdentify
1920m(6299ft)768m(2520ft)384m(1260ft)192m(630ft)
PTZ
Pan/Tilt RangePan: 0° ~ 360° endless; Tilt: -90° ~ 45°
Manual Control SpeedPan: 0.1° ~160° /s; Tilt: 0.1° ~60° /s
Preset SpeedPan:160° /s; Tilt: 60° /s
Presets300
PTZ Mode5 Pattern, 8 Tour, Auto Pan ,Auto Scan
Speed SetupHuman-oriented focal Length/ speed adaptation
Power up Action
Auto restore to previous PTZ and lens status after
power failure
Idle Motion
Activate Preset/ Scan/ Tour/ Pattern if there is no
command in the specified period
ProtocolDH-SD, Pelco-P/D (Auto recognition)
Intelligence
Event Trigger
Motion detection, Video tampering , Scene
changing, Network disconnection, IP address
conflict, Illegal Access, Storage anomaly


Auto TrackingSupport
IVSTripwire, Intrusion, Abandoned/Missing
Advanced Intelligent FunctionsFace Detection, Heat Map
Video
CompressionH.264 / MJPEG
Streaming Capability3 Streams
Resolution
1080P(1920x1080)/720P(1280x720)/D1(704x576/
704x480)/CIF(352x288/352x240)
Frame Rate
Main stream: 1080P(1~25/30fps), 720P(1~50/60fps)
Sub stream1: D1/CIF(1 ~ 25/30fps)
Sub stream2: 1080P/720P/D1/CIF (1 ~ 25/30fps)
Bit Rate ControlCBR/VBR
Bit RateH.264: 448K~8192Kbps, MJPEG: 4096K~20480Kbps
Day/NightAuto(ICR) / Color / B/W
Backlight CompensationBLC / HLC / WDR (120dB)
White BalanceAuto, ATW, Indoor, Outdoor, Manual
Gain ControlAuto / Manual
Noise ReductionUltra DNR (2D/3D)
Motion DetectionSupport
Region of InterestSupport
Electronic Image Stabilization
(EIS)
Support
DefogSupport
Digital Zoom16x
Flip180°
Privacy MaskingUp to 24 areas
Audio
CompressionG.711a/G.711mu/G.726/AAC
Network
EthernetRJ-45 (10Base-T/100Base-TX)
Protocol
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP,
ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP,
DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
InteroperabilityONVIF Profile S&G, API
Streaming MethodUnicast / Multicast
Max. User Access20 users
Edge StorageLocal PC for instant recording, Micro SD card 128GB
Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS, DMSS
Smart Phone IOS, Android

All-environment Series | DH-PTZ12230F-LR8-N
Rev 001.001© 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.
www.dahuasecurity.com

Ordering Information
TypePart NumberDescription
2MP
Positioning
System
DH-PTZ12230F-LR8-N
2MP 30x Starlight Laser Network
Positioning System, WDR, PAL
DH-PTZ12230FN-LR8-N
2MP 30x Starlight Laser Network
Positioning System, WDR, NTSC
PTZ12230F-LR8-N
2MP 30x Starlight Laser Network
Positioning System, WDR, PAL
PTZ12230FN-LR8-N
2MP 30x Starlight Laser Network
Positioning System, WDR, NTSC
Accessories
AC24V/8APower Adapter
PFB712W Wall Mount

Certifications
Certifications
CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB,ANSI C63.4- 2014
Interface
Video Interface1 port(BNC, 1.0V[p-p], 75Ω)
RS4851
Audio I/O1/1
Alarm I/O7/2
Electrical
Power SupplyAC24V/8A(±25%)
Power Consumption70W, 90W (IR on, Heater on)
Environmental
Operating Conditions-40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH
Ingress Protection IP66
Vandal ResistanceN/A
Construction
Casing Metal
DimensionsΦ252(mm) x 360(mm) x 464(mm)
Net Weight12.87kg(28.37lb)
Gross Weight19kg(41.89lb)
Dimensions (mm)
Accessories
Included：
AC24V/8A
Power Adapter
Optional：
PFB712W
Wall Mount

252mm

464mm
360mm
