Warnung! Produkt aus der Produktion genommen!

Ersatzprodukt: PTZ12248V-IRB-N

Ersatzproduktcode: PTZ12248V-IRB-N

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

All-environment Series | DH-PTZ12240-IRB-N

www.dahuasecurity.com
· 1/2.8” 2Megapixel CMOS
· Powerful 40x optical zoom
· Support Triple-stream encoding
· Max. 25/30fps@1080P, 25/30/50/60fps@720P
· Auto-tracking and IVS
· IR Distance up to 300m
· IP66

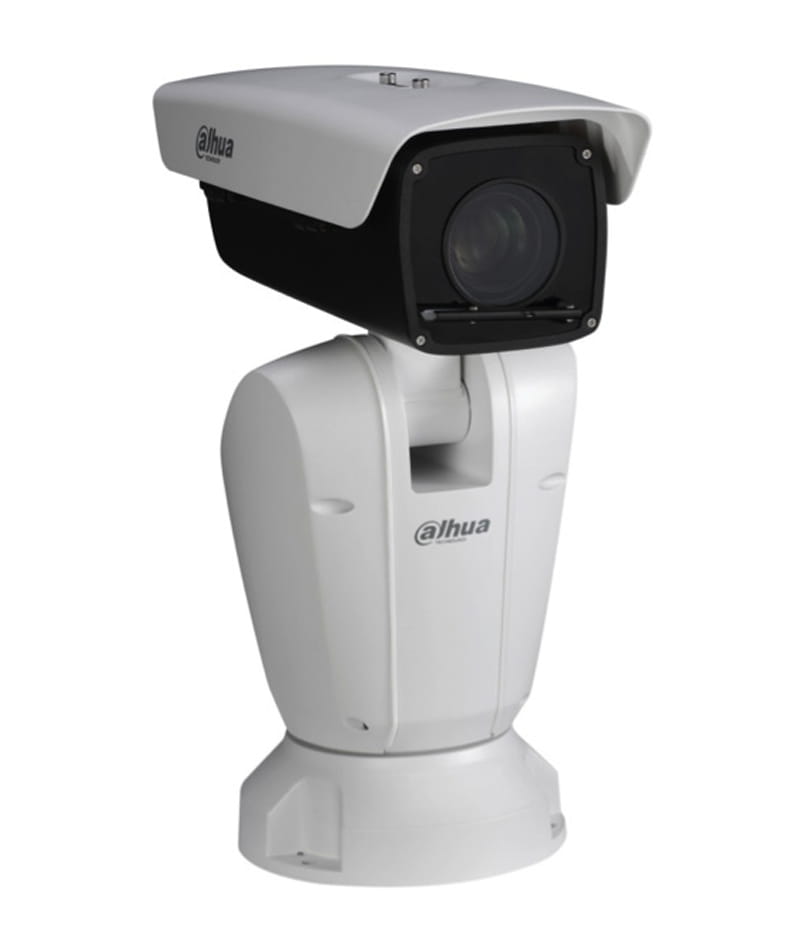

DH-PTZ12240-IRB-N
2MP 40x Network IR Positioning System

IP66
System Overview

Featuring powerful optical zoom and accurate pan/tilt/zoom
performance, this camera provides an all-in-one solution for capturing
long distance video surveillance for outdoor applications. Together with
infrared illumination, the camera is the perfect solution for lowlight
applications. The series combines a day/night mechanical IR cut filter
for the highest image quality in variable lighting conditions during the
day, and True WDR for applications with direct sunlight or glare.
Functions
Auto-tracking
This feature controls the pan/tilt/zoom actions of the camera to
automatically track an object in motion and to keep it in the scene. The
tracking action can be triggered manually or automatically by defined
rules. Once a rule is triggered, the camera can zoom in and track the
de fined target automatically.
Environmental
Dahua cameras operate in extreme temperature environments, rated
for use in temperatures from -40 °C to +70 °C (-40 °F to +158 °F) with
95% humidity. Subjected to rigorous dust and water immersion tests
and certified to the IP66 Ingress Protection rating makes it suitable for
demanding outdoor applications.
Protection
The camera allows for ±25% input voltage tolerance, suitable for the
most unstable conditions for outdoor applications. Its 6KV lightning
rating provides effective protection for both the camera and its structure
against lightning.
Interoperability
The camera conforms to the ONVIF (Open Network Video Interface
Forum) and PSIA (Physical Security Interoperability Alliance)
specifications, ensuring interoperability between network video products
regardless of manufacturer.

www.dahuasecurity.com
All-environment Series | DH-PTZ12240-IRB-N

Technical Specification
Camera
Image Sensor 1/2.8" CMOS
Effective Pixels
1920(H) x 1080(V), 2 Megapixels
RAM/ROM1024M/64M
Scanning SystemProgressive
Electronic Shutter Speed 1/1s~1/30,000s
Minimum IlluminationColor: 0.05Lux@F1.6; 0Lux@F1.6 (IR on)
S/N RatioMore than 55dB
IR DistanceDistance up to 300m(984ft)
IR On/Off ControlAuto/Manual
IR LEDs4
Lens
Focal Length7.9mm ~ 316mm
Max. ApertureF1.6 ~ F6.1
Angle of ViewH: 41.5° ~ 1.1°
Optical Zoom40x
Focus ControlAuto/Manual
Close Focus Distance100mm~ 1000mm
DORI Distance
*Note: The DORI distance is a “general proximity” of distance which makes it easy to
pinpoint the right camera for your needs. The DORI distance is calculated based on
sensor specification and lab test result according to EN 62676-4 which defines the
criteria for Detect, Observe, Recognize and Identify respectively.
DetectObserveRecognizeIdentify
3571m(11716ft) 1428m(4685t) 714m(2343ft) 357m(1171ft)
PTZ
Pan/Tilt RangePan: 0° ~ 360° endless; Tilt: -90° ~ 45°
Manual Control SpeedPan: 0.1° ~160° /s; Tilt: 0.1° ~60° /s
Preset SpeedPan:160° /s; Tilt: 60° /s
Presets300
PTZ Mode5 Pattern, 8 Tour, Auto Pan ,Auto Scan
Speed SetupHuman-oriented focal Length/ speed adaptation
Power up Action
Auto restore to previous PTZ and lens status after
power failure
Idle Motion
Activate Preset/ Scan/ Tour/ Pattern if there is no
command in the specified period
ProtocolDH-SD, Pelco-P/D (Auto recognition)
Intelligence
Auto TrackingSupport
IVS
Tripwire, Intrusion,Abandoned/Missing, Face
Detection, Heat Map


Video
CompressionH.264 / MJPEG
Streaming Capability3 Streams
Resolution
1080P(1920x1080)/720P(1280x720)/D1(704x576/
704x480)/CIF(352x288/352x240)
Frame Rate
Main stream: 1080P (1 ~ 25/30fps), 720P(1~50/60fps)
Sub stream1: D1/CIF(1 ~ 25/30fps)
Sub stream2: 1080P/720P/D1/CIF (1 ~ 25/30fps)
Bit Rate ControlCBR/VBR
Bit RateH.264: 448K~8192Kbps, MJPEG: 4096K~20480Kbps
Day/NightAuto(ICR) / Color / B/W
Backlight CompensationBLC / HLC / DWDR
White BalanceAuto,ATW,Indoor,Outdoor,Manual
Gain ControlAuto / Manual
Noise ReductionUltra DNR (2D/3D)
Motion DetetionSupport
Region of InterestSupport
Electronic Image
Stabilization (EIS)
Support
DefogSupport
Digital Zoom16x
Flip 180°
Privacy MaskingUp to 24 areas
Audio
CompressionG.711a/G.711mu/G.726/AAC
Network
EthernetRJ-45 (10Base-T/100Base-TX)
Protocol
IPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP, UDP,UPnP,
ICMP,IGMP,SNMP,RTSP,RTP, SMTP, NTP,DHCP,
DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
InteroperabilityONVIF, PSIA, CGI
Streaming MethodUnicast / Multicast
Max. User Access20 users
Edge StorageLocal PC for instant recording, Micro SD card 128GB
Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS
Smart Phone IOS, Android
Certifications
Certifications
CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB,ANSI C63.4- 2014
UL: UL60950-1+CAN/CSA C22.2,No.60950-1

All-environment Series | DH-PTZ12240-IRB-N
Rev 001.001© 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice.
www.dahuasecurity.com

Ordering Information
TypePart NumberDescription
2MP
Positioning
System
DH-PTZ12240-IRB-N
2MP 40x Network IR Positioning
System, PAL
DH-PTZ12240N-IRB-N
2MP 40x Network IR Positioning
System, NTSC
PTZ12240-IRB-N
2MP 40x Network IR Positioning
System, PAL
PTZ12240N-IRB-N
2MP 40x Network IR Positioning
System, NTSC
Accessories
AC24V/5APower Adapter
PFB712W-CA010Wall Mount

Interface
Video Interface1 port(BNC, 1.0V[p-p], 75Ω)
RS485 1
Audio I/O1/1
Alarm I/O7/2
Electrical
Power SupplyAC24V/5A(±25%)
Power Consumption50W, 75W (IR on, Heater on)
Environmental
Operating Conditions-40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH
Ingress Protection IP66
Vandal ResistanceN/A
Construction
Casing Metal
Dimensions Φ202.7(mm)x390.8(mm)x472.2(mm)
Net Weight10.5kg(23.15lb)
Gross Weight16.5kg(36.38lb)
Dimensions (mm)
Accessories
Included ：
AC24V/5A
Power Adapter

Optional：
PFB712W-CA010
Wall Mount

202.7mm
230.9mm
390.8mm
472.2mm
