Positioning System | DH-PTZ12240-LR8-N

System Overview

Featuring with powerful optical zoom and accurate pan/tilt/zoom
performance, this series provides an all-in-one solution for capturing
long distance video surveillance for outdoor applications.The series
combines a day/night mechanical IR cut filter for the highest image
quality for variable lighting conditions.
Functions
Auto-tracking
The camera supports auto-tracking. The tracking action can be triggered
manually or automatically by defined rules. Once rules are triggered,
the camera can zoom in and track the defined target automatically.
Environmental
With a temperature range of -40 °C to +70 °C (-40 °F to +158 °F), the
camera is designed for extreme temperature environments. Subjected
and certified to rigorous dust and water immersion tests, the IP66 rating
makes it suitable for demanding outdoor applications.
Protection
This camera suits even the harsh conditions for outdoor applications.
Its 8KV lightning rating provides protection against the camera and its
structure from the effects of lightning.
Interoperability
The camera conforms to the ONVIF (Open Network Video Interface
Forum) and PSIA (Physical Security Interoperability Alliance)
specifications, ensuring interoperability between network video
products regardless of manufacturer.
www.dahuasecurity.com
· 1/2.8” 2Megapixel Exmor CMOS
· Powerful 40x optical zoom
· Support Triple-stream encoding
· Max. 25/30fps@1080P, 25/30/50/60fps@720P
· Auto-tracking and IVS(Optional)
· IR Distance up to 800m
· IP66

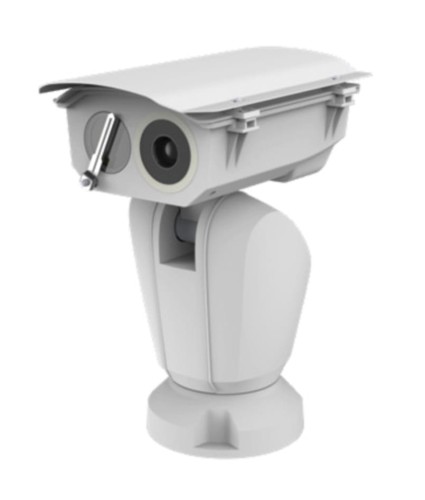

DH-PTZ12240-LR8-N
2MP 40x Network Laser IR Positioning System

IP66


www.dahuasecurity.com
Positioning System | DH-PTZ12240-LR8-N

Technical Specification
Camera
Image Sensor 1/2.8" Exmor CMOS
Effective Pixels
1920(H) x 1080(V), 2 Megapixels
RAM/ROM1024M/64M
Scanning SystemProgressive
Minimum IlluminationColor: 0.05Lux@F1.6; 0Lux@F1.6 (IR on)
S/N RatioMore than 55dB
IR DistanceDistance up to 800m(2625ft)
IR On/Off ControlAuto/Manual
IR LEDsLaser module
Lens
Focal Length7.9mm ~ 316mm
Max. ApertureF1.6 ~ F6.1
Angle of ViewH: 41.5° ~ 1.1°
Optical Zoom40x
Focus ControlAuto/Manual
Close Focus Distance100mm~ 1000mm
PTZ
Pan/Tilt RangePan: 0° ~ 360° endless; Tilt: -90° ~ 45°
Manual Control SpeedPan: 0.1° ~160° /s; Tilt: 0.1° ~60° /s
Preset SpeedPan:160° /s; Tilt: 60° /s
Presets300
PTZ Mode5 Pattern, 8 Tour, Auto Pan ,Auto Scan
Speed SetupHuman-oriented focal Length/ speed adaptation
Power up Action
Auto restore to previous PTZ and lens status after
power failure
Idle Motion
Activate Preset/ Scan/ Tour/ Pattern if there is no
command in the specified period
ProtocolDH-SD, Pelco-P/D (Auto recognition)
Intelligence
Auto TrackingSupport
IVS (optional)
Tripwire, Intrusion,Abandoned/Missing, Face
Detection
Video
CompressionH.264 / MJPEG
Streaming Capability3 Streams
Resolution
1080P(1920x1080) /720P(1280x720)/D1(704x576/
704x480)/CIF(352x288/352x240)
Frame Rate
Main stream1080P (1 ~ 25/30fps), 720P(1~50/60fps)
Sub stream1D1/CIF(1 ~ 25/30fps)
Sub stream21080P/720P/D1/CIF (1 ~ 25/30fps)


Bit Rate ControlCBR/VBR
Bit RateH.264: 448K~8192Kbps, MJPEG: 4096K~20480Kbps
Day/NightAuto(ICR) / Color / B/W
Backlight CompensationBLC / HLC / DWDR
White BalanceAuto,ATW,Indoor,Outdoor,Manual
Gain ControlAuto / Manual
Noise ReductionUltra DNR (2D/3D)
Motion DetetionSupport
Region of InterestSupport
Electronic Image
Stabilization (EIS)
Support
DefogSupport
Digital Zoom16x
Flip 180°
Privacy MaskingUp to 24 areas
Audio
CompressionG.711a/G.711mu/G.726/AAC
Network
EthernetRJ-45 (10/100Base-T)
Protocol
IPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP, UDP,UPnP,
ICMP,IGMP,SNMP,RTSP,RTP, SMTP, NTP,DHCP,
DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
InteroperabilityONVIF, PSIA, CGI
Streaming MethodUnicast / Multicast
Max. User Access20 users
Edge Storage
NAS (Network Attached Storage),Local PC for
instant recording, 128GB
Web ViewerIE10/Google/Firefox/Safari...
Management SoftwareSmart PSS, DSS
Smart Phone iPhone, iPad, Android, Windows Phone
Certifications
Certifications
CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB,ANSI C63.4- 2014
UL: UL60950-1+CAN/CSA C22.2,No.60950-1
Interface
Video Interface 1
Audio Interface1/1
RS4851
Alarm7/2
Electrical
Power SupplyAC24V/5A(±25%)
Power Consumption70W, 90W (IR on)

Positioning System | DH-PTZ12240-LR8-N
Rev 001.001 © 2016 Dahua
®
. All rights reserved.
www.dahuasecurity.com

Ordering Information
TypePart NumberDescription
2MP
Positioning
System
DH-PTZ12240-LR8-N
2MP 40x Network Laser IR
Positioning System, PAL
DH-PTZ12240N-LR8-N
2MP 40x Network Laser IR
Positioning System, NTSC
PTZ12240-LR8-N
2MP 40x Network Laser IR
Positioning System, PAL
PTZ12240N-LR8-N
2MP 40x Network Laser IR
Positioning System, NTSC
Accessories AC24V/5APower Supply

Environmental
Operating Conditions -40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH
Ingress Protection IP66
Vandal ResistanceN/A
Construction
CasingMetal
Dimensions Φ252(mm) x 360 (mm) x 464 (mm)
Net Weight12.87kg(28.37lb)
Gross Weight19kg(41.89lb)
Dimensions (mm)
Accessories
Included ：
AC24V/5A
Power Supply
