PTZ83240-HNF-WA

All-environment Series | DH-PTZ83240-HNF-WA    www.dahuasecurity.com  DH-PTZ83240-HNF-WA  2MP 40x Starlight IR AI Network Positioning System    AI series products adopt the most advanced AI technologies, includ-  ing deep learning algorithms that primarily target people and vehicles,  which provides higher flexibility and accuracy for end-users. This enables  the Dahua AI series to offer various advanced applications such as Face  Recognition, ANPR, Metadata, People Counting, traffic data statistics,  etc. The complete lineup of Dahua AI includes network (PTZ) cameras,  network video recorders, servers, and more devices. Beyond seeing the  world, the power of AI allows devices to perceive the environment and  understand the world in a better way.  System Overview  With CNN algorithm, Dahua AI speed dome supports intelligent func-  tions like tripwire and intrusion; and supports video structuralization  function that recognizes motor vehicle, non-motor vehicle, and huam  to analyze their detailed information (plate number, vehicle brand, and  human age and gender, etc.). With PFA algorithm, the speed dome can  get clear images all the time during zooming. In addition, silent motor  driver integrated...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

All-environment Series | DH-PTZ83240-HNF-WA

www.dahuasecurity.com
DH-PTZ83240-HNF-WA

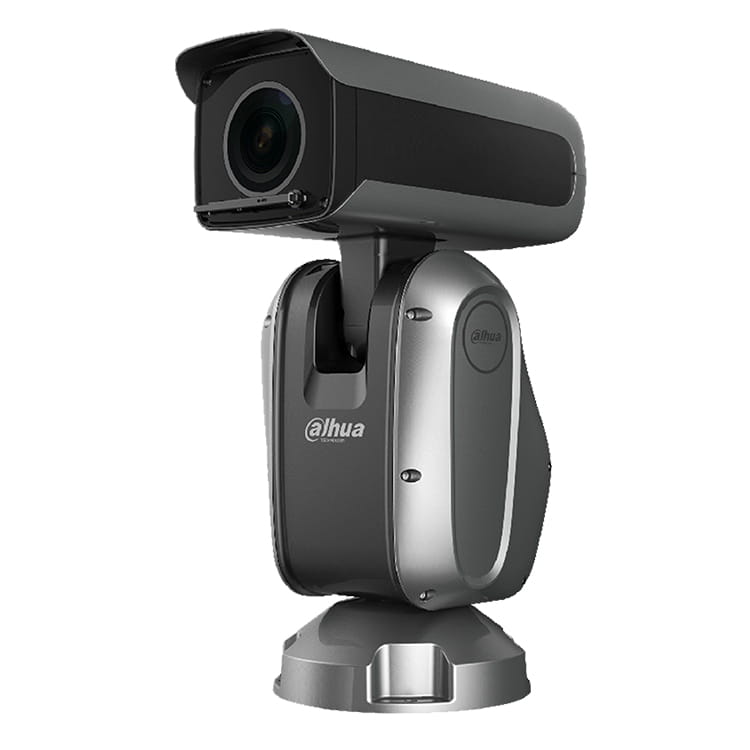

2MP 40x Starlight IR AI Network Positioning System

AI series products adopt the most advanced AI technologies, includ-
ing deep learning algorithms that primarily target people and vehicles,
which provides higher flexibility and accuracy for end-users. This enables
the Dahua AI series to offer various advanced applications such as Face
Recognition, ANPR, Metadata, People Counting, traffic data statistics,
etc. The complete lineup of Dahua AI includes network (PTZ) cameras,
network video recorders, servers, and more devices. Beyond seeing the
world, the power of AI allows devices to perceive the environment and
understand the world in a better way.
System Overview
With CNN algorithm, Dahua AI speed dome supports intelligent func-
tions like tripwire and intrusion; and supports video structuralization
function that recognizes motor vehicle, non-motor vehicle, and huam
to analyze their detailed information (plate number, vehicle brand, and
human age and gender, etc.). With PFA algorithm, the speed dome can
get clear images all the time during zooming. In addition, silent motor
driver integrated circuits enable the speed dome to make faint sounds
during rotation.
Functions
Perimeter Protection
Automatically filtering out false alarms caused by animals, rustling
leaves, bright lights, etc. Enables system to act secondary recognition
for the targets. Improving alarm accuracy.
Starlight Technology
For challenging low-light applications, Dahua’s Starlight Ultra-low Light
Technology offers best-in-class light sensitivity, capturing color details
in low light down to 0.001 lux. The camera uses a set of optical features
to balance light throughout the scene, resulting in clear images in dark
environments.
PFA Technology
PFA technology has innovatively introduced new methods of judgment
to ensure the accuracy and predictability of the direction of subject
distance adjustment. The result is a set of advanced focusing algo -
rithms.PFA ensures clarity of the image throughout the process of
zooming and shortens focus time. The realization of PFA technology
substantially improves user experience and increases product value.
Environmental
Dahua cameras operate in extreme temperature environments, rated
for use in temperatures from -40 °C to +70 °C (-40 °F to +158 °F) with
95% humidity. Subjected to rigorous dust and water immersion tests
and certified to the IP67 Ingress Protection rating makes it suitable for
demanding outdoor applications.
Protection
The camera allows for ±25% input voltage tolerance, suitable for the
most unstable conditions for outdoor applications. Its 6KV lightning rat-
ing provides effective protection for both the camera and its structure
against lightning.
Interoperability
The camera conforms to the ONVIF (Open Network Video Interface
Forum) specifications, ensuring interoperability between network video
products regardless of manufacturer.
Wide Dynamic Range
The camera achieves vivid images, even in the most intense contrast
lighting conditions, using industry-leading wide dynamic range (WDR)
technology. For applications with both bright and low lighting conditions
that change quickly, True WDR (120 dB) optimizes both the bright and
dark areas of a scene at the same time to provide usable video.
Auto-tracking
This feature controls the pan/tilt/zoom actions of the camera to
automatically track an object in motion and to keep it in the scene. The
tracking action can be triggered manually or automatically by defined
rules. Once a rule is triggered, the camera can zoom in and track the
defined target automatically.
Smart H.265+
Smart H.265+ is the optimized implementation of the H.265 codec that
uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI,
flexible multi-frame reference structure and intelligent noise reduction
to deliver high-quality video without straining the network. Smart
H.265+ technology reduces bit rate and storage requirements by up to
70% when compared to standard H.265 video compression.
· 1/1.8” 2Megapixel CMOS
· Powerful 40x optical zoom
· Starlight technology
· Max. 25/30fps@1080P
· IR distance up to 400m
· Deep-learning-based auto tracking and perimeter protection
· Auto-tracking and IVS
· IP67

IP67

H.265


All-environment Series | DH-PTZ83240-HNF-WA

Technical Specification
Camera
Image Sensor
1/1.8" CMOS
Max. Resolution
2MP
Effective Pixels
1920(H)x1080 (V)
ROM
32GB
RAM
4GB
Electronic Shutter Speed
1/1–1/30000s
Scanning Mode
Progressive Scanning
Minimum Illumination
Color: 0.001Lux@F1.4
B/W: 0.0001Lux@F1.4
0Lux (IR light on)
IR Distance
400m( 1312.34ft )
IR On/Off Control
Zoom Prio/Manual/SmartIR
IR LED Number
10
Wiper
Support
Lens
Focal Length5.6 mm–223 mm
ApertureF1.4–F4.5
Field of ViewH: 1.8°~70.3°; V: 1.2°–35°; D: 2.4°–66.9°
Optical Zoom40x
Focus ControlAuto/Semi-Auto/Manual
Close Focus Distance0.5 m–2 m
Iris ControlAuto
DORI Distance
DetectObserveRecognizeIdentify
2346.7 m
(7697.18 ft)
938.7 m
(3.78.9ft)
469.3 m
(1539.4 ft)
234.7m
(769.7 ft)
PTZ
Pan/Tilt RangePan: 0°–360°; Tilt: -90°~45°
Manual Control SpeedPan: 0.1°–160°/s; Tilt: 0.1°–60°/s
Preset SpeedPan: 160°/s; Tilt: 60°/s
Presets300
Tour8(up to 32 preset per tour)
Pattern Number5
Scanning Number5
Speed AdjustmentSupport
Power-off MemorySupport
Idle MotionPreset/Tour/Pattern/Scanning
Protocol
DH-SD
Pelco-P/D(Auto recognition)
Artificial Intelligence
Metadata
Support human body, human face, motor vehicle
and non-motor vehicle image capture and atributes
extracton.

www.dahuasecurity.com

Perimeter Protection
Tripwire and intrusion. Support alarm triggering by
target types (human and vehicle). Support filtering
false alarms caused by animals, rustling leaves, bright
lights, etc.
Auto TrackingSupport
Face RecognitionSupport
General Intelligence
Event Trigger
Motion detection, video tampering, scene changing,
Network disconnection, IP address conflict, illegal
access, and storage anomaly.
General IVSObject Abandoned/Missing
Video
Compression
H.265, H.264Main/High/Baseline Profile, MJPEG(Sub
Stream)
Streaming Capability3 Streams
Resolution
1080P (1920x1080); 1.3M(1280x960); 720P
(1280x720); D1 (704x 576); CIF (352x288)
Frame Rate
Main stream:1080P/1.3M/720P(1–25/30fps)
Sub stream 1: D1/CIF(1–25/30fps)
Sub stream 2: 1080P/1.3M/720P(1–25/30fps), D1/
CIF(1–25/30fps)
Bit Rate ControlVariable Bit Rate/Constant Bit Rate
Bit Rate
H.264: 1792 Kbps–9216 Kbps
H.265: 512 Kbps–5632 Kbps
Day/NightSupport
BLC Support
WDR120dB
HLCSupport
White Balance
Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/
Natural/Street lamp
Gain ControlAuto/Manual
Noise Reduction2D/3D
Motion DetectionSupport
Region of Interest (RoI)Support
Electronic Image Stabilization
(EIS)
Support
Defogsupport
Digital Zoom16x
Flip180°
Privacy MaskingUp to 24 areas
Function
CVI ModeCVBS
Audio
Audio Compression
G.711A; G.711Mu; G.726; AAC; G.722.1; G.723; G.729;
PCM; MPEG2-Layer2
Port
Ethernet1 RJ-45 Port 10/100Base-T
Audio In1

www.dahuasecurity.com

Rev 001.001 © 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.
All-environment Series | DH-PTZ83240-HNF-WA

Audio Out1
Alarm7 in and 2 out
Analog Output1 BNC
RS-4851
Network
Protocol
IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP;
UPnP; SNMPv1/v2c/v3(MIB-2); DNS; DDNS; NTP; RTSP;
RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE
Interoperability ONVIF Profile S&G; CGI
Streaming MethodUnicast/Multicast
Max. User Access20 (Total bandwidth 64M)
Edge StorageFTP; Micro SD card (256G)
Browser
IE7 and newer versions
Chrome 42 and older versions
Firefox 52 and older versions
Safari
Management Software
Smart Player
Smart PSS
DSS
Easy4ip
Smart PhoneIOS/Android/Windows Phone
Electrical
Power SupplyAC24V/8.35A±25%
Power Consumption
39W
70W (IR light on, PTZ, wiper, heater)
Environment
Operating Conditions-40°C ~ 70°C (–40°F to +158°F)
Operating Humidity≤95%RH
Ingress ProtectionIP67; TVS 6000V lightning protection; surge protection
Construction
Dimensions210.7mmx366.5mmx498.7mm (8.30"x14.43"x19.63")
Weight
Net Weight: 14 kg (30.86 lb); Gross Weight: 19.77 kg
(43.59 lb)


Ordering Information
TypeModel Description
1080P
Camera
DH-PTZ83240-HNF-WA
2MP 40x Starlight IR AI Network Positioning
System
PTZ83240-HNF-WA
2MP 40x Starlight IR AI Network Positioning
System
DH-PTZ83240N-HNF-
WA
2MP 40x Starlight IR AI Network Positioning
System
PTZ83240N-HNF-WA
2MP 40x Starlight IR AI Network Positioning
System
Accessories
DH-PFB741W(Bracket)Wall Mount
DH-PFB741W(Junction
box)
Wall Mount
AC24V/8APower Adapter
Accessories

AC24V/8A
Power Adapter
Optional:
DH-PFB741W
(Junction box)
Wall Mount
DH-PFB741W
(Bracket)
Wall Mount

Wall Mount

PFB41W

Pole Mount

Dimensions (mm[inch])
