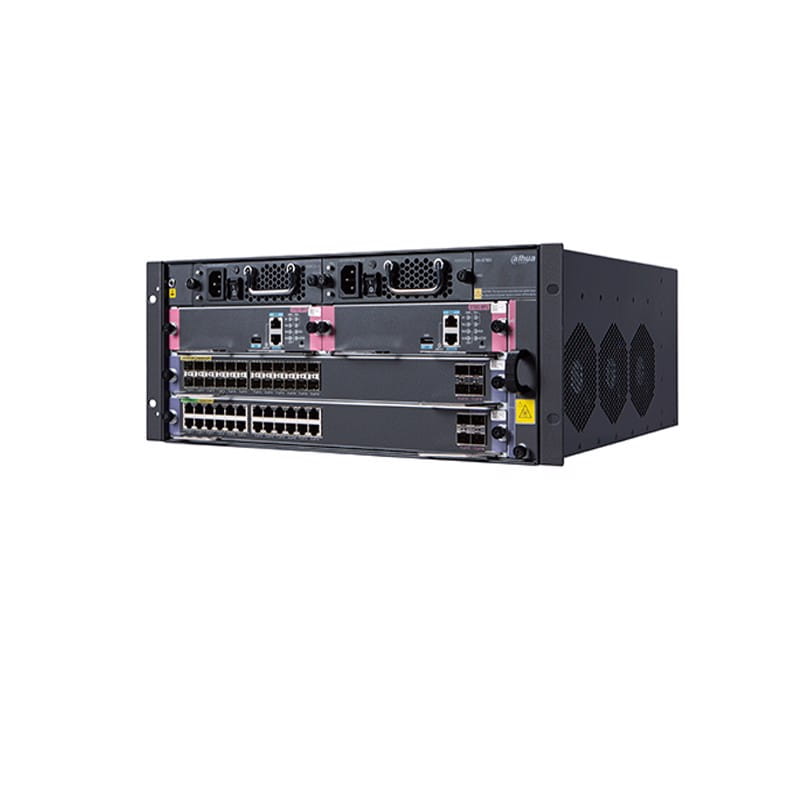

DH-S7602

Product Overview
The DH S7600 series switches are designed based on 40G and 100G
platforms, and support a variety of Ethernet interfaces, including 1000M
optical interfaces, 1000M electrical interfaces, 10G optical interfaces,
10G electrical interfaces, 40G interfaces, and 100G interfaces, which
meet multi-level link bandwidth requirements of users. The DH S7600
series comply with the "Restriction of Hazardous Substances (RoHS)",
and therefore, are green and environment-friendly routing switches.
The DH S7600 series includes two models: S7606 (with eight slots)
and S7602 (with four slots), and supports main controller redundancy.
The DH S7600 series can be widely applied in multiple network
environments, including the core layer and convergence layer of
metropolitan networks, data centers, and campus networks, providing
users with industry solutions that integrate security and switching
components, integrate wired and wireless components, and integrate
active and passive components.
www.dahuasecurity.com
DH-S7602
High-end Multiservice Routing Switches

Features
· Supporting technologies required by cloud data centers, for example,
TRILL, EVB, and FCoE
· Fully compatible with 40GE and 100GE Ethernet standards
· Integrating multiple network services such as IPv6, network security,
wireless control, and passive optical networks
· Providing multiple high availability technologies such as non-stop
forwarding, non-stop upgrade, graceful restart, and ring network
protection. This improves production efficiency of users and ensures a
maximum normal operation time of the network, thereby lowering the
total costs of ownership (TCOs) for customers


Key Features
· Rich Services, Adaptive to the Development Trend of
Converged Service Networks
High-performance IPv4/IPv6 Service Capabilities
The DH S7600 series supports the IPv4/IPv6 dual-protocol stack, multiple
tunneling technologies, and IPv4/IPv6 multicast technologies, to provide
users with complete IPv4/IPv6 solutions. The DH S7600 series uses
distributed system architecture, to implement non-blocking line rate
forwarding of IPv4/IPv6 services. The DH S7600 series has passed the IPv6
network entry certification and IPv6 Ready stage two certification of the
Information Industry Ministry, and therefore, is a mature commercial IPv6
product.
Integration of Wired and Wireless Components, and Integration of
Active and Passive Components
The wireless control module integrated in the DH S7600 series provides
a variety of service capabilities, including fine-grained user control and
management, complete RF management and security mechanisms,
rapid roaming, powerful QoS, and support for IPv6. The wireless control
module is associated with the security policy server, to implement
endpoint admission defense (EAD) for wireless access users, thereby
improving security of the entire network.
The DH S7600 series uses chips supporting the AC function, which can
expand on-board AC functions, to provide more options for customers in
establishing networks that integrate wired and wireless components.
The DH S7600 series is an Ethernet passive optical network (EPON)
device with high density in the industry, and provides a highly reliably
EPON system. The EPON system uses distributed system architecture,
modular design, hot backup of main control boards, passive backplanes,
and dual-input redundant power sources, thereby achieving carrier-grade
reliability.
EAD Technology
The DH S7600 series supports the large-capacity portal authentication
function, and can be used as:
●EAD gateway devices in local area networks with thousands of users,
to provide an EAD security authentication function for users on the
networks;
●Convergence/Core devices in large- and medium-sized campus
networks, to provide the portal authentication function for authentication
and charging in the college dormitory area.
Basic Network Architecture for BYOD
The DH S7600 series support a variety of access authentication manners
and can be used as:
●Authentication gateway devices in local area networks with thousands
of users, to provide users with the security authentication function;
●Convergence/Core devices and VPN authentication gateways, in
collaboration with SSL VPN cards, in large- and medium-sized campus
networks.
The DH S7600 provides basic network architecture for bring your own
device (BYOD), to facilitate expansion of BYOD applications, such as
mobile ERP, OA, and UC&C.
· Technologies Oriented to Cloud Data Centers
As enterprise-grade network core devices, the DH S7600 series
products provide users with technologies and solutions required in
establishing cloud data centers:
●TRILL
Propelled by the increase of server and switch scales, data center
networks develop toward the flattened network architecture, to
facilitate maintenance and management. This requires a large-scale
Layer-two network. The DH S7600 series products use the
TRansparent Interconnection of Lots of Links (TRILL) and vertical
virtualization technologies to support the construction of large-scale
Layer-two data center networks. The data center large Layer-two
TRILL protocol introduces the Layer-three routing technology
Intermediate System-to-Intermediate System (IS-IS) to the Layer-two
network, and amends the IS-IS technology as required. This smoothly
integrates the simplicity and flexibility of Layer two and stability,
scalability, and high performance of Layer 3.
●EVB
The DH S7600 series products support Edge Virtual Bridging (EVB). A
Virtual Ethernet Port Aggregator (VEPA) technology is used to upload
network traffic of virtual machines to physical switches connected
to the servers. This implements traffic forwarding between virtual
machines, and also solves problems such as virtual machine traffic
monitoring and access control policy deployment.
●FCoE
The DH S7600 series products support the FCoE technology. The FCoE
technology addresses the issue that the LAN and storage network
in the cloud data center are heterogeneous. The FCoE and CEE
technologies can be used in deployment, to converge the front-end
network and back-end network architecture of the data center. This
cracks the technical hard nut that data, computing, and storage
networks are split, thereby greatly reducing the device purchasing
and expansion costs of the data center.

· Comprehensive Security Assurance, Defending Against
Multiple Network Security Threats
Three-plane Security Assurance Mechanisms
The DH S7600 series provides complete security defense mechanisms
from the control, management, and forwarding planes, to comprehensive
ensure network security:
●On the control plane, a protocol packet attack recognition module
is embedded, to prevent packet attacks of protocols such as TCN and
ARP; and OSPF, BGP, and IS-IS routing protocols use MD5 verification,
to prevent networks from breaking down due to illegal route update
packets.
●On the management plane, SNMPv3 network management protocols,
SSH V2, user identity authentication based on 802.1x, AAA, or Radius, and
level-based user rights management ensure device management security.
●On the forwarding plane, IP addresses, VLANs, MAC addresses, and
ports can be bond in multiple combinations; unicast reverse path
forwarding (URPF) is supported, to prevent illegal traffic from accessing
the network; and the longest match packet-by-packet forwarding
mechanism is used, to effectively prevent virus attacks.
The DH S7600 series further supports embedded high-performance
firewalls, abnormal-traffic cleaning modules, and other modules. In this
way, professional security mechanisms are integrated in the switches.
EAD Fully Supported on Wired and Wireless Devices
The DH S7600 series is an important part of the EAD solution. The
DH S7600 series can dynamically receive control policies from the
security policy server and grant corresponding access permissions to
terminals according to security statuses of the terminals. The DH 7600
series supports EAD for wired terminals and wireless terminals, to
comprehensively ensure terminal security.
Enhanced ACL Features
The DH S7600 series supports powerful ACL capabilities, including:
●Standard and extended ACLs
●VLAN-based ACLs, facilitating user configuration and saving ACL
resources
●Egress and ingress ACLs, meet requirements of industries such as the
financial industry on restrict access permission control
· Carrier-grade High Availability, Ensuring Long-term Stable
Operation of User Services
Carrier-grade High Availability Design
The DH S7600 uses a design free from single points of failure. All key
parts, such as the main control boards, power sources, and fans, use
redundancy design. The passive backplanes avoid single points of failure
of the chassis. All the boards and power modules support the hot swap
function. The DH S7600 series can operate stably for a long time in harsh
environments, and reach a carrier-grade reliability of 99.999%.
Multiservice High-Availability Operation
The DH S7600 series supports the following features:
●Non-stop forwarding and graceful restart, providing a millisecond-level
switching time
●Equivalent routes, helping users establish multiple equal-cost path, to
implement load balancing and redundancy back of traffic
●Rapid Ring Protection Protocol (RRPP)
●Smart-Link protocol, ensuring millisecond-level rapid service switching
in a dual-uplink network topology
By using the technologies above, the DH S7600 series can operate
continuously when carrying multiple services, implementing service
continuity.
· Hardware-level Encryption Technology
The DH S7600 series supports the MACsec technology (802.1ae), which
is a hardware-level encryption technology. Different from conventional
end-to-end soft encryption technologies for protecting the basic
application layer, MACsec uses a password technology that identifies data
sources to protect and manage control protocols of bridge networks and
other data, protecting information integrity and providing protection and
privacy services. By confirming the station that sends a frame, Layer-two
protocols can be protected against attacks from the origin.

Technical Specification
ModelDH-S7602
Switching capacity
5.12 Tbit/s or 12.8 Tbit/s
IPv4 packet forwarding rate960 Mpps/2400 Mpps
Number of slots4
Number of service slots2
Redundancy design
Redundancy of power sources and main control
boards
Layer-two features
Supports the following Layer-two features:
●IEEE 802.1P (CoS priority)
●IEEE 802.1Q (VLAN)
●802.1d (STP)/802.1w (RSTP)/802.1s (MSTP)
●IEEE 802.1ad (QinQ), flexible QinQ, and VLAN
mapping
●IEEE 802.3x (full duplex flow control) and
backpressure flow control (half duplex)
●IEEE 802.3ad (link aggregation) and cross-board
link aggregation
●IEEE 802.3 (10Base-T)/802.3u (100Base-T)
●IEEE 802.3z (1000BASE-X)/802.3ab (1000BaseT)
●IEEE 802.3ae (10Gbase)
●RRPP
●Cross-board port/flow mirroring
●Suppression of port broadcast/multicast/unknown
unicast storms
●Jumbo frames
●VLAN division based on ports, protocols, subnets,
and MAC addresses
●SuperVLANs
●PVLANs
●Multicast VLAN+
●Point-to-point single-VLAN cross connection and
dual-VLAN cross connection
●Forwarding dependent on VLAN IDs only, without
MAC address learning
●Maximum VLAN mapping/Full support of VLAN
mapping by flexible QinQ entries
●GVRP
●LLDP
IPv4 routing
Supports the following IPv4 routing features:
●ARP Proxy
●DHCP Relay
●DHCP Server
●Static routing
●RIPv1/v2
●OSPFv2
●IS-IS
●BGPv4
●OSPF/IS-IS/BGP GR (Graceful Restart)
●Equivalent routing
●Policy-based routing
●Routing policies
IPv6 routing
Supports the following IPv6 routing features:
●ICMPv6
●ICMPv6 redirection
●DHCPv6
●ACLv6
●OSPFv3
●RIPng
●BGP4+
●IS-ISv6
●ISATAP
●6to4 tunnels
●IPv6/IPv4 dual-protocol stack
Multicast
Supports the following multicast routing features:
●IGMPv1/v2/v3
●IGMPv1/v2/v3 Snooping
●IGMP Filter
●IGMP fast leave
●PIM-SM/PIM-DM/PIM-SSM
●MSDP
●AnyCast-RP
●MLDv2/MLDv2 Snooping
●PIM-SMv6, PIM-DMv6, and PIM-SSMv6


ACL/QoS
Supports the following ACL/QoS features:
●Standard and extended ACLs
●VLAN-based ACLs
●Ingress and egress ACLs
●Ingress and Egress CARs (with granularities
reaching 8 Kbit/s)
●Two-level metering capability
●VLAN-based aggregated CAR, and MAC address–
based CAR
●Traffic shaping
●802.1P/DSCP priority marking and remarking
●Hierarchical QoS (H-QoS)
●Three-level queue scheduling
●Queue scheduling mechanisms (SP, WRR, SP+WRR,
and CBWFQ)
●Congestion avoidance mechanisms (including Tail-
Drop and WRED)
●Mirroring
Security mechanism
Supports the following system management
features:
●FTP, TFTP, and Xmodem
●SNMP v1/v2/v3
●sFlow traffic statistics
●RMON
●NTP clock
●NetStream traffic statistics function
●Smart power source management
●802.3az efficient energy-saving Ethernet
●Device online status monitoring mechanism,
detecting key components such as main
control engines, backplanes, chips, and storage
components
Reliability
Supports the following reliability features:
●1+1 redundant backup of main control boards
●1+1 redundant backup of power sources
●Passive backup design
●Hot swap of all boards
●CPU protection
●VRRP
●Ethernet OAM (802.1ag)
●MAC Tracert
●RPR
●RRPP and ERPS
●Graceful Restart for OSPF/BGP/IS-IS
●DLDP
●VCT
●Smart-Link
●Hot patches
Environment requirements
●Temperature range: 0°C (32°F)–45°C (113°F)
●Relative humidity: 10%–95% (non condensing)
Security standards and EMC
certification
Passed CE, FCC PART 15, TUV-GS, UL-CUL, ICES003,
and VCCI certification
Power source
DC:–48 V to–60V
AC: 100 V to 290 V
Dimensions (Width x Height x
Depth) (mm)
436 x 175 x 420
Weight (full configuration)≤ 27 kg
