SD59225-HC-LA

HDCVI Series | DH-SD59225-HC-LA    www.dahuasecurity.com  DH-SD59225-HC-LA  2MP 25x Starlight IR PTZ HDCVI Camera    Featuring with powerful optical zoom and accurate pan/tilt/zoom perfor-  mance, the SD59 series PTZ camera can provide large monitoring range  and great detail. The camera delivers 1080P resolution at 25/30 fps, with  25x optical zoom, and has very excellent low light performance due to  the latest starlight technology. SD59 series PTZ camera is equipped with  smooth control, high quality image and good protection, which makes it  meet small and medium-sized video surveillance applications.  Functions  Simplicity  HDCVI technology inherits the born feature of simplicity from traditional  analog surveillance system, making itself a best choice for investment  protection. HDCVI system can seamlessly upgrade the traditional  analog system without replacing existing coaxial cabling. The plug and  play approach enables full HD video surveillance without the hassle of  configuring network.  Starlight Technology  For challenging low-light applications, Dahua's Starlight Ultra-low Light  Technology offers best-in-class light sensitivity, capturing color details  in low light down to 0.005 Lux...

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

HDCVI Series | DH-SD59225-HC-LA

www.dahuasecurity.com

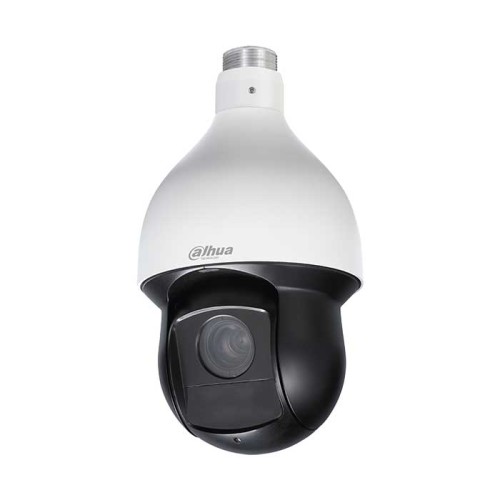

DH-SD59225-HC-LA
2MP 25x Starlight IR PTZ HDCVI Camera

Featuring with powerful optical zoom and accurate pan/tilt/zoom perfor-
mance, the SD59 series PTZ camera can provide large monitoring range
and great detail. The camera delivers 1080P resolution at 25/30 fps, with
25x optical zoom, and has very excellent low light performance due to
the latest starlight technology. SD59 series PTZ camera is equipped with
smooth control, high quality image and good protection, which makes it
meet small and medium-sized video surveillance applications.
Functions
Simplicity
HDCVI technology inherits the born feature of simplicity from traditional
analog surveillance system, making itself a best choice for investment
protection. HDCVI system can seamlessly upgrade the traditional
analog system without replacing existing coaxial cabling. The plug and
play approach enables full HD video surveillance without the hassle of
configuring network.
Starlight Technology
For challenging low-light applications, Dahua's Starlight Ultra-low Light
Technology offers best-in-class light sensitivity, capturing color details
in low light down to 0.005 Lux. The camera uses a set of optical features
to balance light throughout the scene, resulting in clear images in dark
environments.
PFA Technology
PFA technology has innovatively introduced new methods of judgment
to ensure the accuracy and predictability of the direction of subject dis-
tance adjustment. The result is a set of advanced focusing algorithms.
PFA ensures clarity of the image throughout the process of zooming
and shortens focus time. The realization of PFA technology substantially
improves user experience and increases product value.
Environmental
The camera is designed for extreme temperature environments. Sub-
jected and certified to rigorous dust and water immersion tests, the
IP66 rating makes it suitable for demanding outdoor applications.
Wide Dynamic Range
The camera achieves vivid images, even in the most intense contrast
lighting conditions, using industry-leading wide dynamic range (WDR)
technology. For applications with both bright and low lighting conditions
that change quickly, True WDR (120 dB) optimizes both the bright and
dark areas of a scene at the same time to provide usable video.
Protection
This camera suits even the harsh conditions for outdoor applications.
Its 6KV lightning rating provides protection against the camera and its
structure from the effects of lightning.
· 1/2.8" 2Megapixel STARVIS™ CMOS
· Powerful 25x optical zoom
· Starlight technology
· 120 dB true WDR, 3D DNR
· Max. 25/30 fps@1080P, 25/30/50/60 fps@720P
· IR distance up to 150 m
· IP66

Day/Night

Starlight

0.005Lux


HDCVI Series | DH-SD59225-HC-LA

Technical Specification
Camera
Image Sensor
1/2.8" STARVIS™ CMOS
Pixel
2MP
Max. Resolution
1920 (H) x 1080 (V)
ROM
16 MB
RAM
256 MB
Electronic Shutter Speed
1/3 s–1/100000 s
Scanning System
Progressive
Min. Illumination
Color: 0.005 Lux@F1.6
B/W: 0.0005 Lux@F1.6
0 Lux@F1.6 (IR on)
Illumination Distance
150 m (492.13 ft)
Illuminator On/Off Control
Auto/Manual
Illuminator Number
4
Lens
Focal Length4.8 mm–120 mm
Max. ApertureF1.6–F3.5
Field of View
H: 61°–2.8°
V: 22.6°–0.4°
Optical Zoom25x
Focus ControlAuto/Semi-Auto/Manual
Close Focus Distance0.1 m–1.5 m (0.33 ft–4.92 ft)
Iris ControlAuto/Manual
DORI Distance
DetectObserveRecognizeIdentify
1655.2 m
(5430.45 ft)
656.8 m
(2154.86 ft)
331.0 m
(1085.96 ft)
165.5 m
(542.98 ft)
PTZ
Pan/Tilt Range
Pan: 0°–360°
Tilt: -15°–+90°
Manual Control Speed
Pan:0.1°–300°/s
Tilt:0.1°–200°/s
Preset SpeedPan: 400°/s; Tilt: 300°/s
Presets300
Tour8 (up to 32 presets per tour)
Pattern5
Scan5
Speed AdjustmentSupport
Power-off MemorySupport
Idle MotionPreset/Tour/Pattern/Scanning
Protocol
DH-SD
Pelco-P/D (auto recognition)

www.dahuasecurity.com

Video
Resolution
1080P (1920 x 1080); 720P (1280 x 720); D1 (704 x
576/704 x 480)
Frame Rate1080P (25/30 fps), 720P (25/30/50/60 fps)
CVI Product Output ModeCVI; TVI; AHD; CVBS
Day/NightSupport
BLC Support
WDR120 dB
HLCSupport
White Balance
Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/
Natural light/Street lamp
Gain ControlAuto/Manual
Noise Reduction2D/3D
DefogElectronic
Digital Zoom16x
Flip0°/180°
Privacy MaskingUp to 24 areas
Audio
CompressionG.711a; G.711Mu
Certification
Certifications
CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4-2014
UL: UL60950-1+CAN/CSA C22.2, No.60950-1
Port
Audio Input1 (LINE IN; bare wire)
Analog Output1 (CVBS/CVI output, BNC port )
RS-4851 (baud rate range: 1200 bps–9600 bps)
Alarm Input2
Alarm Output1
Power
Power SupplyDC 24V/3A ± 25%
Power Consumption
9.6W
22W (IR light on, PTZ)
Environment
Operating Temperature –40°C to +70°C (–40°F to +158°F)
Operating Humidity≤ 95%RH
ProtectionIP66; TVS 6000V lightning protection; surge protection
Structure
Dimensions310.0 mm x Φ186.0 mm (12.20" x Φ7.32")
Net Weight3.9 kg (8.60 lb)
Gross Weight7.2 kg (15.87 lb)


www.dahuasecurity.com

Rev 001.001 © 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.
HDCVI Series | DH-SD59225-HC-LA

Ordering Information
TypeModel Description
2M Camera
DH-SD59225-HC-LA
2MP 25x Starlight IR PTZ HDCVI Camera, WDR,
PAL
DH-SD59225N-HC-LA
2MP 25x Starlight IR PTZ HDCVI Camera, WDR,
NTSC
SD59225-HC-LA
2MP 25x Starlight IR PTZ HDCVI Camera, WDR,
PAL
SD59225N-HC-LA
2MP 25x Starlight IR PTZ HDCVI Camera, WDR,
NTSC
Accessories
PFB300SWall Mount Bracket
PFA110Mount Adapter
DC24V/2.5APower Supply
PFA140Power Box
PFB300CCeiling Mount Bracket
PFA120Junction Box
PFA150Pole Mount Bracket
PFA151Corner Mount Bracket
PFB303SParapet Mount Bracket
Accessories

PFB300S
Wall Mount Bracket
PFA110
Mount Adapter

1 8 6 [ 7 . 3 2 ]∅

310[
1
2
.
20]

26[
1
.
02]

144[
5
.
67]

1 5 4 [ 6 . 0 6 ]

4 7 [ 1 . 8 5 ]∅

Dimensions (mm[inch])

DC24V/2.5A
Power Supply

PFA140
Power Box
PFB300C
Ceiling Mount Bracket
PFA120
Junction Box

PFA150
Pole Mount Bracket
PFA151
Corner Mount
Bracket
PFB303S
Parapet Mount
Bracket

Included:
Optional:
