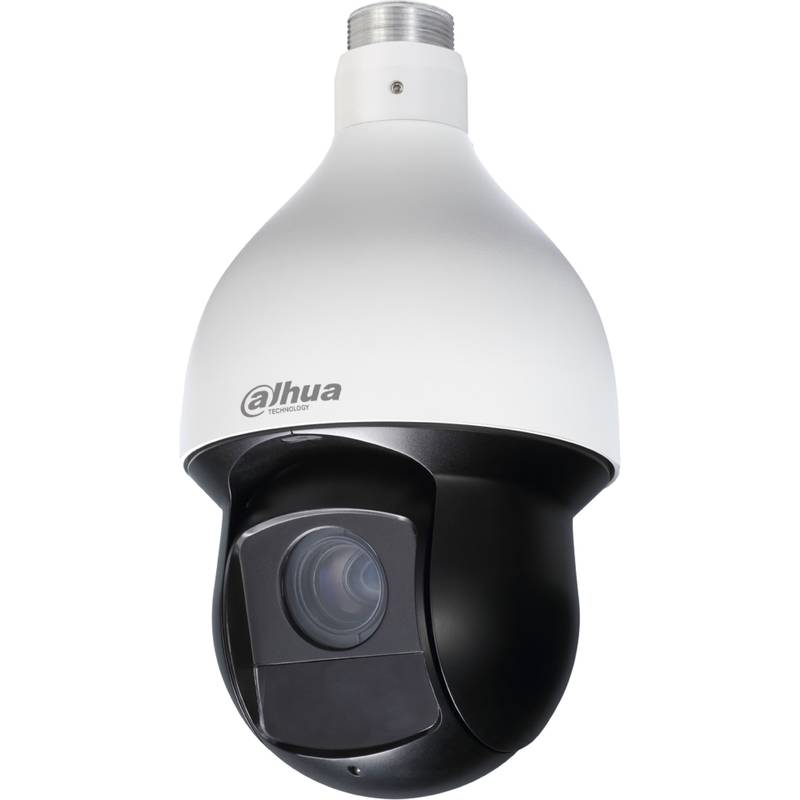

SD59225I-HC

Verfügbarkeit: 0
Preis: 657,19 € 657.19
bez 23.00% VAT i kosztów dostawy
quantity szt.

product unavailable

zur Wunschliste hinzufügen
Anbieter: DAHUA
Produkt-Code/SKU: SD59225I-HC

Beschreibung

Pro Series | DH-SD59225I-HC     System Overview    Featuring with powerful optical zoom and accurate pan/tilt/zoom  performance, the SD59 series PTZ camera can provide large monitoring  range and great detail. The camera delivers 1080P resolution at 25/30  fps, with 25x optical zoom, and has very excellent low light performance  due to adopting the latest starlight technology. SD59 series PTZ is  equipped with quick and smooth control, high quality image and good  protection, which make it can meet most of the requirements of video  surveillance applications.   Functions    Simplicity  HDCVI technology inherits the born feature of simplicity from traditional  analog surveillance system, making itself a best choice for investment  protection. HDCVI system can seamlessly upgrade the traditional  analog system without replacing existing coaxial cabling. The plug and  play approach enables full HD video surveillance without the hassle of  configuring a network.  Starlight Technology  For challenging low-light applications, Dahua’s Starlight Ultra-low Light  Technology offers best-in-class light sensitivity, capturing color details...

Garantie: 36 mon.

Datentabelle PDF


Textinhalt des PDF-Datenblattes:

Pro Series | DH-SD59225I-HC

System Overview

Featuring with powerful optical zoom and accurate pan/tilt/zoom
performance, the SD59 series PTZ camera can provide large monitoring
range and great detail. The camera delivers 1080P resolution at 25/30
fps, with 25x optical zoom, and has very excellent low light performance
due to adopting the latest starlight technology. SD59 series PTZ is
equipped with quick and smooth control, high quality image and good
protection, which make it can meet most of the requirements of video
surveillance applications.
Functions

Simplicity
HDCVI technology inherits the born feature of simplicity from traditional
analog surveillance system, making itself a best choice for investment
protection. HDCVI system can seamlessly upgrade the traditional
analog system without replacing existing coaxial cabling. The plug and
play approach enables full HD video surveillance without the hassle of
configuring a network.
Starlight Technology
For challenging low-light applications, Dahua’s Starlight Ultra-low Light
Technology offers best-in-class light sensitivity, capturing color details
in low light down to 0.005 lux. The camera uses a set of optical features
to balance light throughout the scene, resulting in clear images in dark
environments.
Wide Dynamic Range
Embedded with industry leading wide dynamic range (WDR) technology,
vivid pictures are achieved even in the most intense contrast lighting
conditions. For applications with both bright and low lighting conditions
that change quickly, true WDR (120dB) optimizes both the bright and
dark areas of a scene at the same time to provide usable video.
Environmental
With a temperature range of -40 °C to +70 °C (-40 °F to +158 °F), the
camera is designed for extreme temperature environments. Subjected
and certified to rigorous dust and water immersion tests, the IP66 rating
makes it suitable for demanding outdoor applications.
Protection
This camera suits even the harsh conditions for outdoor applications.
Its 6KV lightning rating provides protection against the camera and its
structure from the effects of lightning.
www.dahuasecurity.com
· 1/2.8” 2Megapixel STARVIS™ CMOS
· Powerful 25x optical zoom
· Starlight technology
· 120dB true WDR, 3D DNR
· Max. 25/30fps@1080P, 25/30/50/60fps@720P
· IR distance up to 150m
· IP66
DH-SD59225I-HC
2MP 25x Starlight IR PTZ HDCVI Camera


www.dahuasecurity.com
Pro Series | DH-SD59225I-HC

Technical Specification
Camera
Image Sensor 1/2.8” STARVIS™ CMOS
Effective Pixels
1920(H) x 1080(V), 2 Megapixels
Scanning SystemProgressive
Electronic Shutter Speed
PAL: 1/3s~1/30,000s
NTSC: 1/4s~1/30,000s
Minimum Illumination
Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6;
0Lux@F1.6 (IR on)
S/N RatioMore than 55dB
IR DistanceDistance up to 150m (492ft)
IR On/Off ControlAuto/Manual
IR LEDs4
Lens
Focal Length4.8mm~120mm
Max. ApertureF1.6 ~ F4.4
Angle of ViewH: 62.8° ~ 2.6°
Optical Zoom25x
Focus ControlAuto/Manual
Close Focus Distance100mm~ 1000mm
DORI Distance
*Note: The DORI distance is a “general proximity” of distance which makes it easy to
pinpoint the right camera for your needs. The DORI distance is calculated based on
sensor specification and lab test result according to EN 62676-4 which defines the
criteria for Detect, Observe, Recognize and Identify respectively.
DetectObserveRecognizeIdentify
1613m(5259ft) 646m(2119ft) 323m(1060ft) 161m(528ft)
PTZ
Pan/Tilt RangePan: 0° ~ 360° endless; Tilt: -15° ~ 90°,auto flip 180°
Manual Control SpeedPan: 0.1° ~300° /s; Tilt: 0.1° ~200° /s
Preset SpeedPan: 400° /s; Tilt: 300° /s
Presets300
PTZ Mode5 Pattern, 8 Tour, Auto Pan ,Auto Scan
Speed SetupHuman-oriented focal Length/ speed adaptation
Power up Action
Auto restore to previous PTZ and lens status after
power failure
Idle Motion
Activate Preset/ Scan/ Tour/ Pattern if there is no
command in the specified period
ProtocolDH-SD, Pelco-P/D (Auto recognition)
Video
Resolution1080P(1920x1080)/720P(1280x720)
Frame Rate25/30fps@1080P, 25/30/50/60fps@720P


Video Output
1-channel BNC high definition video output/ CVBS
standard definition video output (switchable)
Day/NightAuto(ICR) / Color / B/W
OSD Menu Support
Backlight CompensationBLC / HLC / WDR (120dB)
White BalanceAuto, ATW, Indoor, Outdoor, Manual
Gain ControlAuto / Manual
Noise ReductionUltra DNR (2D/3D)
Digital Zoom16x
Flip 180°
Privacy MaskingUp to 24 areas
Certifications
Certifications
CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB,ANSI C63.4- 2014
UL: UL60950-1+CAN/CSA C22.2,No.60950-1
Interface
Video Interface1
Audio Interface1 channel in
RS4851
Alarm I/O2/1
Electrical
Power SupplyAC24V/3A(±10%)
Power Consumption13W, 23W (IR on)
Environmental
Operating Conditions-40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH
Ingress Protection IP66
Vandal ResistanceN/A
Construction
CasingMetal
Dimensions Φ186(mm) x 309(mm)
Net Weight3.5kg(7.72lb)
Gross Weight6.8kg(14.99lb)

Pro Series | DH-SD59225I-HC
Rev 001.001© 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.
www.dahuasecurity.com

Ordering Information
TypePart NumberDescription
2MP PTZ
Camera
DH-SD59225I-HC
2MP 25x Starlight IR PTZ HDCVI
Camera, WDR, PAL
DH-SD59225IN-HC
2MP 25x Starlight IR PTZ HDCVI
Camera, WDR, NTSC
SD59225I-HC
2MP 25x Starlight IR PTZ HDCVI
Camera, WDR, PAL
SD59225IN-HC
2MP 25x Starlight IR PTZ HDCVI
Camera, WDR, NTSC
Accessories
PFB300S Wall Mount
PFA110Mount Adapter
AC24V/3APower Adapter
PFA140Power Box
PFB300C Ceiling Mount
PFA120Junction Box
PFA150Pole Mount
PFA151Corner Mount
PFB303S Parapet Mount

Accessories
Included:
PFA140
Power Box
PFA150
Pole Mount
PFA120
Junction Box
PFB300C
Ceiling Mount
PFB303S
Parapet Mount
PFA151
Corner Mount

Optional:
Dimensions (mm)
PFA110
Mount Adapter

PFB300S
Wall Mount

AC24V/3A
Power Adapter

Junction Mount

Corner Mount

Power Box Mount

PFA110 PFB300S PFA140

PFA110 PFB300S PFA151

PFA110 PFB300S PFA120
PFA110 PFB300C

PFA110 PFB300S PFA150

Ceiling Mount

Pole Mount

Parapet Mount

PFA110 PFB303S
