Ultra AI Series | DH-SD8A240WA-HNF

AI series products adopt the most advanced AI technologies, including
deep learning algorithms that primarily target people and vehicles,
which provides higher flexibility and accuracy for end-users. This enables
the Dahua AI series to offer various advanced applications such as Face
Recognition, ANPR, Metadata, People Counting, traffic data statistics,
etc. The complete lineup of Dahua AI includes network (PTZ) cameras,
network video recorders, servers, and more devices. Beyond seeing the
world, the power of AI allows devices to perceive the environment and
understand the world in a better way.
System Overview

Dahua PTZ AI network camera adopts advanced CNN deep learning
algorithms to support face recognition with high accuracy. This camera
possess wide monitor range, PFA algorithm that can always present a
clear, focused image while zooming, and smart wiper technology that
supported by RainSensor.
Functions
Starlight Technology
For challenging low-light applications, Dahua’s Starlight Ultra-low Light
Technology offers best-in-class light sensitivity, capturing color details
in low light down to 0.001 lux. The camera uses a set of optical features
to balance light throughout the scene, resulting in clear images in dark
environments.
Face Recognition
Once facial features are extracted from captured faces, they are stored
in a database where they can be easily searched and compared against
other images. Once a successful match is found, the system outputs the
result. The Dahua Face Recognition camera supports a built-in database
that stores up to 10,000 facial images, helping the camera achieve real-
time face capture and comparison.
Perimeter Protection
Automatically filtering out false alarms caused by animals, rustling
leaves, bright lights, etc. Enables system to act secondary recognition for
the targets. Improving alarm accuracy.
Metadata
Metadata is feature attribute information extracted from a target object
which can be used for data retrieval. There are four kinds of metadata
supported by Dahua PTZ AI camera: human face, human body, motor
vehicle and non-motor vehicle metadata. Facial information includes
gender, age, glasses, masks, beards, etc. Human body information
includes hat, top, top color, bottom, bottom color, bag, etc. Motor
vehicle information includes plate color, type, vehicle color, sunshield,
ornament, calling, seatbelt, smoking, annual inspection sticker, etc.
Non-motor vehicle information includes type, color, top type, top color,
people number, etc.
PFA Technology
PFA technology has innovatively introduced new methods of judgment
to ensure the accuracy and predictability of the direction of subject
distance adjustment. The result is a set of advanced focusing algorithms.
PFA ensures clarity of the image throughout the process of zooming
and shortens focus time. The realization of PFA technology substantially
improves user experience and increases product value.
Environmental
Dahua cameras operate in extreme temperature environments, rated
for use in temperatures from -40 °C to +70 °C (-40 °F to +158 °F) with
95% humidity. Subjected to rigorous dust and water immersion tests
and certified to the IP67 Ingress Protection rating makes it suitable for
demanding outdoor applications.
Protection
The camera allows for ±25% input voltage tolerance, suitable for the
most unstable conditions for outdoor applications. Its 8KV lightning
rating provides effective protection for both the camera and its structure
against lightning.
Interoperability
The camera conforms to the ONVIF (Open Network Video Interface
Forum) specifications, ensuring interoperability between network video
products regardless of manufacturer.
www.dahuasecurity.com
· 1/1.8” 2Megapixel CMOS
· Powerful 40x optical zoom
· Starlight technology
· IR distance up to 500m
· Support face recognition
· Deep-learning-based auto tracking and
perimeter protection
· Support metadata
· Support Hi-PoE
· Smart Wiper
· IP67

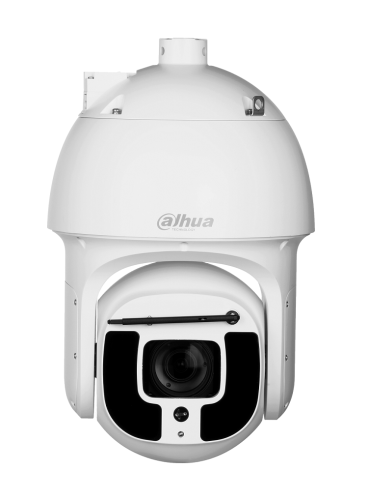

DH-SD8A240WA-HNF
2MP 40x Starlight IR PTZ AI Network Camera

Hi-PoE
0.001Lux


www.dahuasecurity.com
Ultra AI Series | DH-SD8A240WA-HNF

Technical Specification
Camera
Image Sensor1/1.8” CMOS
Effective Pixels
1920(H) x 1080(V), 2 Megapixels
Scanning SystemProgressive
Electronic Shutter Speed1/1s~1/30,000s
Minimum Illumination
Color: 0.001Lux@F1.4; B/W: 0.0001Lux@F1.4;
0Lux@F1.4 (IR on)
IR DistanceDistance up to 500m (1640ft)
IR On/Off ControlAuto/Manual
IR LEDs10
Smart Wiper Support
Lens
Focal Length5.6mm~223mm
Max. ApertureF1.4~ F4.8
Angle of ViewH: 70.3° ~ 1.8°; V: 35.1° ~ 1°; D: 67.5° ~ 2°
Optical Zoom40x
Focus ControlAuto/Manual
Iris ControlAuto/Manual
Close Focus Distance100mm~ 1000mm
DORI Distance
*Note: The DORI distance is a “general proximity” of distance which makes it easy to
pinpoint the right camera for your needs. The DORI distance is calculated based on
sensor specification and lab test result according to EN 62676-4 which defines the
criteria for Detect, Observe, Recognize and Identify respectively.
DetectObserveRecognizeIdentify
2340m(7677ft）930m（3051ft)460m(1509ft)230m(755ft)
PTZ
Pan/Tilt RangePan: 0° ~ 360° endless; Tilt: -30° ~ 90°,auto flip 180°
Manual Control SpeedPan: 0.1° ~240° /s; Tilt: 0.1° ~100° /s
Preset SpeedPan: 240° /s; Tilt: 120° /s
Presets300
PTZ Mode
5 Pattern, 8 Tour(up to 32 preset per tour), Auto
Pan, 5 Auto Scan
Speed SetupHuman-oriented focal Length/ speed adaptation
Power up Action
Auto restore to previous PTZ and lens status after
power failure
Idle Motion
Activate Preset/ Scan/ Tour/ Pattern if there is no
command in the specified period
ProtocolDH-SD, Pelco-P/D (Auto recognition)
Artificial Intelligence
Auto TrackingSupport
Face RecogntionSupport
Perimeter Protection
Tripwire, Intrusion.
Support alarm triggering by target types(human
and vehicle)
Filtering out false alarms caused by animals, rustling
leaves, bright lights, etc


Metadata
Support human body, human face, motor vehicle
and non-motor vehicle image capture and
attributes extraction
General Intelligence
Event Trigger
Motion detection, Video tampering , Scene
changing, Network disconnection, IP address
conflict, Illegal Access, Storage anomaly
General IntelligenceObject Abandoned/Missing
Video
CompressionH.265+/H.265/H.264+/H.264/MJPEG(Sub Stream)
Streaming Capability3 Streams
Resolution
1080P(1920x1080)/1.3M(1280x960)/720P(1280x
720)/D1(704x576/704x480)/CIF(352x288/352x240)
Frame Rate
Main stream: 1080P/1.3M/720P(1~50/60fps)
Sub stream1: D1/CIF(1 ~ 25/30fps)
Sub stream2: 1080P/1.3M/720P(1 ~ 25/30fps)
Bit Rate ControlCBR/VBR
Bit RateH.265/H.264: 512K ~ 8192Kbps
Day/NightAuto(ICR) / Color / B/W
Backlight CompensationBLC / HLC / WDR(120dB)
White BalanceAuto, ATW, Indoor, Outdoor, Manual
Gain ControlAuto / Manual
Noise ReductionUltra DNR (2D/3D)
Motion DetectionSupport
Region of InterestSupport
Electronic Image Stabilization
(EIS)
Support
Optical DefogSupport
Digital Zoom16x
Flip180°
Privacy MaskingUp to 24 areas
Audio
Compression
G.711a/G.711mu/PCM/G.726/AAC/G722.1/G.729/
MPEG2-Layer2
Network
EthernetRJ-45 (10Base-T/100Base-TX)
Protocol
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP,
ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, RTCP,
RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,
FTP, IP Filter, QoS, Bonjour, 802.1x
InteroperabilityONVIF Profile S&G, API
Streaming MethodUnicast / Multicast
Max. User Access20 users
Edge Storage
NAS (Network Attached Storage),Local PC for
instant recording, Micro SD card 256GB
Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS, DMSS
Smart Phone IOS, Android

Ultra AI Series | DH-SD8A240WA-HNF
www.dahuasecurity.com

Certifications
Certifications
CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB,ANSI C63.4- 2014
Interface
Video Interface1 port(BNC, 1.0V[p-p], 75Ω)
RS4851
Audio I/O1/1
Alarm I/O7/2
Electrical
Power SupplyAC24V/3A(±25%), Hi-PoE
Power Consumption26W, 38W (Heater on, IR on)
Environmental
Operating Conditions-40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH
Ingress Protection IP67
Vandal ResistanceN/A
Construction
Casing Metal
DimensionsΦ262(mm) x 415.6 (mm)
Net Weight8.5kg(18.74lb)
Gross Weight14.3kg(31.53lb)
Included:

AC24V/3A
Power Adapter
PFB306W
Wall Mount
Rev 001.001© 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice.

Accessories

225.6mm

25.9mm

415.6mm

160.0mm

262.0mm

Dimensions (mm)

Ordering Information
TypePart NumberDescription
2MP PTZ
Camera
DH-SD8A240WA-HNF
2MP 40x Starlight IR PTZ AI
Network Camera, WDR, PAL
DH-SD8A240WAN-HNF
2MP 40x Starlight IR PTZ AI
Network Camera, WDR, NTSC
SD8A240WA-HNF
2MP 40x Starlight IR PTZ AI
Network Camera, WDR, PAL
SD8A240WAN-HNF
2MP 40x Starlight IR PTZ AI
Network Camera, WDR, NTSC
Accessories
PFB306WWall Mount
AC24V/3APower Adapter
Wall Mount
PFB306W
