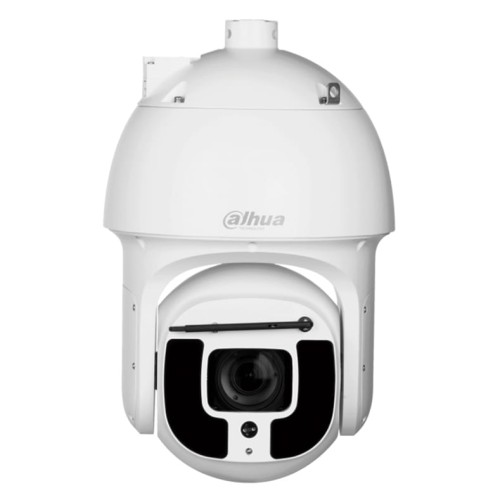

SD8A440VI-HNI

Ultra Series | DH-SD8A440VI-HNI    www.dahuasecurity.com  · 1/1.8” STARVIS™ CMOS  · Powerful 40x optical zoom  · Starlight technology  · Max. 25/30fps@4MP  · Support Hi-PoE  · Smart wiper  · IR distance up to 450m  · IP67  DH-SD8A440VI-HNI   4MP 40x Starlight IR PTZ Network Camera     System Overview    Featuring powerful optical zoom and accurate pan/tilt/zoom  performance, this camera provides an all-in-one solution for capturing  long distance video surveillance for outdoor applications. Together with  infrared illumination and Starlight Technology, the camera is the perfect  solution for dark, lowlight applications. The series combines a day/night  mechanical IR cut filter for the highest image quality in variable lighting  conditions during the day, and True WDR for applications with direct  sunlight or glare.   Functions  Starlight Technology  For challenging low-light applications, Dahua’s Starlight Ultra-low Light  Technology offers best-in-class light sensitivity, capturing color details  in low light down to 0.002lux. The camera uses a set of optical features  to balance light throughou...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

Ultra Series | DH-SD8A440VI-HNI

www.dahuasecurity.com
· 1/1.8” STARVIS™ CMOS
· Powerful 40x optical zoom
· Starlight technology
· Max. 25/30fps@4MP
· Support Hi-PoE
· Smart wiper
· IR distance up to 450m
· IP67
DH-SD8A440VI-HNI
4MP 40x Starlight IR PTZ Network Camera

System Overview

Featuring powerful optical zoom and accurate pan/tilt/zoom
performance, this camera provides an all-in-one solution for capturing
long distance video surveillance for outdoor applications. Together with
infrared illumination and Starlight Technology, the camera is the perfect
solution for dark, lowlight applications. The series combines a day/night
mechanical IR cut filter for the highest image quality in variable lighting
conditions during the day, and True WDR for applications with direct
sunlight or glare.
Functions
Starlight Technology
For challenging low-light applications, Dahua’s Starlight Ultra-low Light
Technology offers best-in-class light sensitivity, capturing color details
in low light down to 0.002lux. The camera uses a set of optical features
to balance light throughout the scene, resulting in clear images in dark
environments.
Wide Dynamic Range
The camera achieves vivid images, even in the most intense contrast
lighting conditions, using industry-leading wide dynamic range (WDR)
technology. For applications with both bright and low lighting conditions
that change quickly, True WDR (120 dB) optimizes both the bright and
dark areas of a scene at the same time to provide usable video.
Auto-tracking
This feature controls the pan/tilt/zoom actions of the camera to
automatically track an object in motion and to keep it in the scene. The
tracking action can be triggered manually or automatically by defined
rules. Once a rule is triggered, the camera can zoom in and track the
de fined target automatically.
Smart Wiper
With Dahua smart wiper technology, the wiper can be started/stopped
automatically when the build-in rain senor discerns whether it rains.
The technology could offer better surveillance performance against wet
weather and reduce dependence on manual operation.
Smart H.265+
Smart H.265+ is the optimized implementation of the H.265 codec that
uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI,
flexible multi-frame reference structure and intelligent noise reduction to
deliver high-quality video without straining the network. Smart H.265+
technology reduces bit rate and storage requirements by up to 70%
when compared to standard H.265 video compression.
PFA Technology
PFA technology has innovatively introduced new methods of judgment
to ensure the accuracy and predictability of the direction of subject
distance adjustment. The result is a set of advanced focusing algorithms.
PFA ensures clarity of the image throughout the process of zooming
and shortens focus time. The realization of PFA technology substantially
improves user experience and increases product value.
Environmental
Dahua cameras operate in extreme temperature environments, rated
for use in temperatures from -40 °C to +70 °C (-40 °F to +158 °F) with
95% humidity. Subjected and certified to rigorous dust and water
immersion tests, the IP67 rating makes it suitable for demanding outdoor
applications.
Protection
The camera allows for ±25% input voltage tolerance, suitable for the
most unstable conditions for outdoor applications. Its 8KV lightning
rating provides effective protection for both the camera and its structure
against lightning.
Interoperability
The camera conforms to the ONVIF (Open Network Video Interface
Forum) specifications, ensuring interoperability between network video
products regardless of manufacturer.

0.002Lu x

Hi-PoE


www.dahuasecurity.com
Ultra Series | DH-SD8A440VI-HNI

Technical Specification
Camera
Image Sensor1/1.8” STARVIS™ CMOS
Effective Pixels
2592(H) x 1520(V), 4 Megapixels
Scanning SystemProgressive
Electronic Shutter Speed 1/1s~1/30,000s
Minimum Illumination
Color: 0.002Lux@F1.4; B/W: 0.0002Lux@F1.4;
0Lux@F1.4 (IR on)
S/N RatioMore than 56dB
IR DistanceDistance up to 450m (1476ft)
IR On/Off ControlAuto/Manual
IR LEDs10
Smart Wiper Support
Lens
Focal Length5.6mm~223mm
Max. ApertureF1.4~ F4.8
Angle of ViewH: 63.9° ~ 2.0°
Optical Zoom40x
Focus ControlAuto/Manual
Close Focus Distance100mm~ 1000mm
DORI Distance
*Note: The DORI distance is a “general proximity” of distance which makes it easy to
pinpoint the right camera for your needs. The DORI distance is calculated based on
sensor specification and lab test result according to EN 62676-4 which defines the
criteria for Detect, Observe, Recognize and Identify respectively.
DetectObserveRecognizeIdentify
2933m(9623ft) 1164m(3819ft) 586m(1922ft) 293m(961ft)
PTZ
Pan/Tilt RangePan: 0° ~ 360° endless; Tilt: -30° ~ 90°,auto flip 180°
Manual Control SpeedPan: 0.1° ~240° /s; Tilt: 0.1° ~100° /s
Preset SpeedPan: 240° /s; Tilt: 120° /s
Presets 300
PTZ Mode5 Pattern, 8 Tour, Auto Pan ,Auto Scan
Speed SetupHuman-oriented focal Length/ speed adaptation
Power up Action
Auto restore to previous PTZ and lens status after
power failure
Idle Motion
Activate Preset/ Scan/ Tour/ Pattern if there is no
command in the specified period
ProtocolDH-SD, Pelco-P/D (Auto recognition)
Intelligence
Event Trigger
Motion detection, Video tampering , Scene
changing, Network disconnection, IP address
conflict, Illegal Access, Storage anomaly


Auto TrackingSupport
IVSTripwire, Intrusion, Abandoned/Missing
Advanced Intelligent FunctionsFace Detection, Heat Map
Video
CompressionH.265+/H.265/H.264+/H.264
Streaming Capability3 Streams
Resolution
4M(2592x1520)/3M(2304x1296)/1080P(1920x
1080)/720P(1280x720)/D1(704x576/704x480)/
CIF(352x288/352x240)
Frame Rate
Main stream: 4M/3M(1~25/30fps), 1080P/1.3M/
720P(1~50/60fps)
Sub stream1: D1/CIF(1 ~ 25/30fps)
Sub stream2: 1080P/1.3M/720P (1 ~ 25/30fps)
Bit Rate ControlCBR/VBR
Bit RateH.265/H.264: 512K ~ 8192Kbps
Day/NightAuto(ICR) / Color / B/W
Backlight CompensationBLC / HLC / WDR(120dB)
White BalanceAuto, ATW, Indoor, Outdoor, Manual
Gain ControlAuto / Manual
Noise ReductionUltra DNR (2D/3D)
Motion DetectionSupport
Region of InterestSupport
Electronic Image Stabilization
(EIS)
Support
DefogSupport
Digital Zoom16x
Flip 180°
Privacy MaskingUp to 24 areas
Audio
Compression
G.711a/G.711mu/PCM/G.726/AAC/G722.1/G.729/
MPEG2-Layer2
Network
EthernetRJ-45 (10Base-T/100Base-TX)
Protocol
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP,
ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP,
DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
InteroperabilityONVIF Profile S&G, API
Streaming MethodUnicast / Multicast
Max. User Access20 users
Edge Storage
NAS (Network Attached Storage),Local PC for
instant recording, Micro SD card 256GB
Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS, DMSS
Smart Phone IOS, Android

Ultra Series | DH-SD8A440VI-HNI
www.dahuasecurity.com

TypePart NumberDescription
4MP PTZ
Camera
DH-SD8A440VI-HNI
4MP 40x Starlight IR PTZ Network
Camera, WDR, PAL
DH-SD8A440VIN-HNI
4MP 40x Starlight IR PTZ Network
Camera, WDR, NTSC
SD8A440VI-HNI
4MP 40x Starlight IR PTZ Network
Camera, WDR, PAL
SD8A440VIN-HNI
4MP 40x Starlight IR PTZ Network
Camera, WDR, NTSC
Accessories
PFB306W Wall Mount
AC24V/3APower Adapter
PFA120Junction Box
PFA140Power Box
PFA150Pole Mount
PFA151Corner Mount

Certifications
Certifications
CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB,ANSI C63.4- 2014
UL: UL60950-1+CAN/CSA C22.2,No.60950-1
Interface
Video Interface1 port(BNC, 1.0V[p-p], 75Ω)
RS485 1
Audio I/O 1/1
Alarm I/O7/2
Electrical
Power SupplyAC24V/3A(±25%), Hi-PoE
Power Consumption26W, 38W (IR on, Heater on)
Environmental
Operating Conditions-40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH
Ingress Protection IP67
Vandal ResistanceN/A
Construction
Casing Metal
Dimensions Φ262(mm) x 415.6 (mm)
Net Weight8.5kg(18.74lb)
Gross Weight14.3kg(31.53lb)
Ordering Information
Rev 001.001© 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.

PFA140
Power Box
PFA150
Pole Mount
PFA120
Junction Box
PFA151
Corner Mount

Optional：
t



Po

PFB306W + PF A140
PFB306W + PF A151

PFB306W + PF A120

PFB306W + PF A150

Po

Accessories
Included:
PFB306W
Wall Mount

AC24V/3A
Power Adapter
225.6mm

25.mm

415.6mm

160.0mm

262.0mm

Dimensions (mm)
