TAM01GT01GT-75

TAM01GT01GT-75W    www.dahuasecurity.com   Features  · Supports PoE for Hi-PoE 75W high power consumption  speed dome  · Indicator status: power (normal power on), PoE (normal  power supply)  · Cooperate with PoE Extender (PFT1300), able to cascade  level 2 PoE Extender, connect to 3 IPC, max transmission  distance 300m  · Wide working temperature: -30°C~ 65°C  · Supports DoE Level VI  · Lighting Protection: Level 4  TAM01GT01GT-75W  75W PoE Midspan    Technical Specification  ModelTAM01GT01GT-75W  Ethernet Port  1*10/100/1000 Base-T  1*10/100/1000 Base-T( PoE power supply)  PoE Power SupplyPoE/PoE+/Hi-PoE  PoE PIN Assignment 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)  IndicatorPower indicator, PoE status indicator  Exchange ModeStore & forward  Application Humidity10%~90%  Working Temperature-30°C~65°C  Weight250g  Dimension(WxDxH)210mmx75mmx38.5mm      Dimensions (mm)...

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

TAM01GT01GT-75W

www.dahuasecurity.com
Features
· Supports PoE for Hi-PoE 75W high power consumption
speed dome
· Indicator status: power (normal power on), PoE (normal
power supply)
· Cooperate with PoE Extender (PFT1300), able to cascade
level 2 PoE Extender, connect to 3 IPC, max transmission
distance 300m
· Wide working temperature: -30°C~ 65°C
· Supports DoE Level VI
· Lighting Protection: Level 4

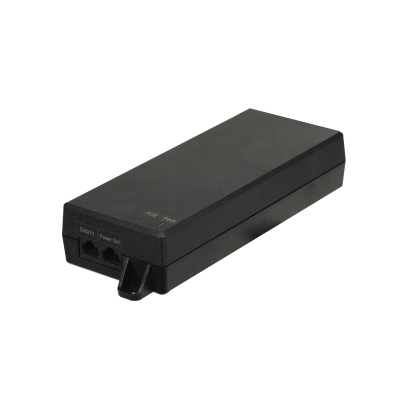

TAM01GT01GT-75W
75W PoE Midspan

Technical Specification
ModelTAM01GT01GT-75W
Ethernet Port
1*10/100/1000 Base-T
1*10/100/1000 Base-T( PoE power supply)
PoE Power SupplyPoE/PoE+/Hi-PoE
PoE PIN Assignment 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
IndicatorPower indicator, PoE status indicator
Exchange ModeStore & forward
Application Humidity10%~90%
Working Temperature-30°C~65°C
Weight250g
Dimension(WxDxH)210mmx75mmx38.5mm


Dimensions (mm)
